Wiper and Washer Switch Circuit [08/2014 - ]: Wiring Diagram

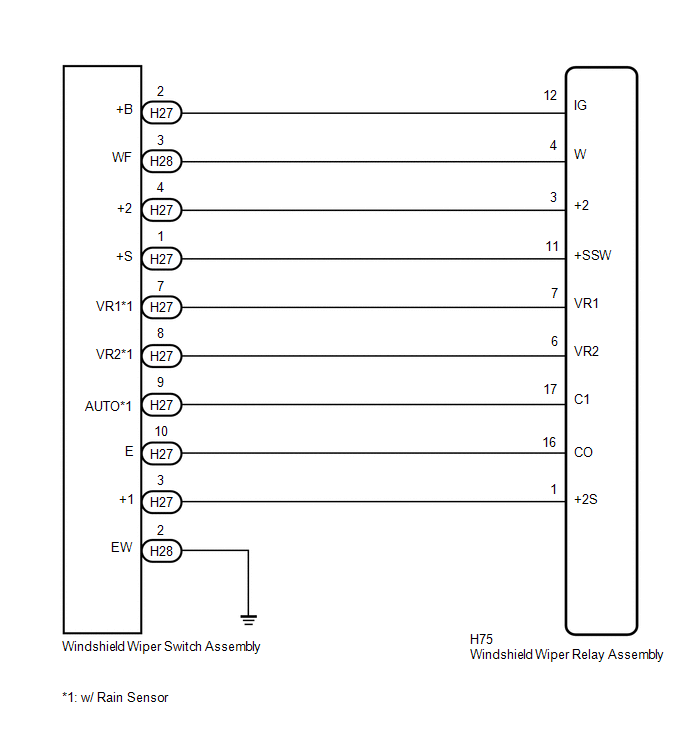

Fig 1: Wiper And Washer Switch Wiring Diagram

GTY532545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
