Room Oscillator does not Recognize Key [08/2013 - ]: Wiring Diagram

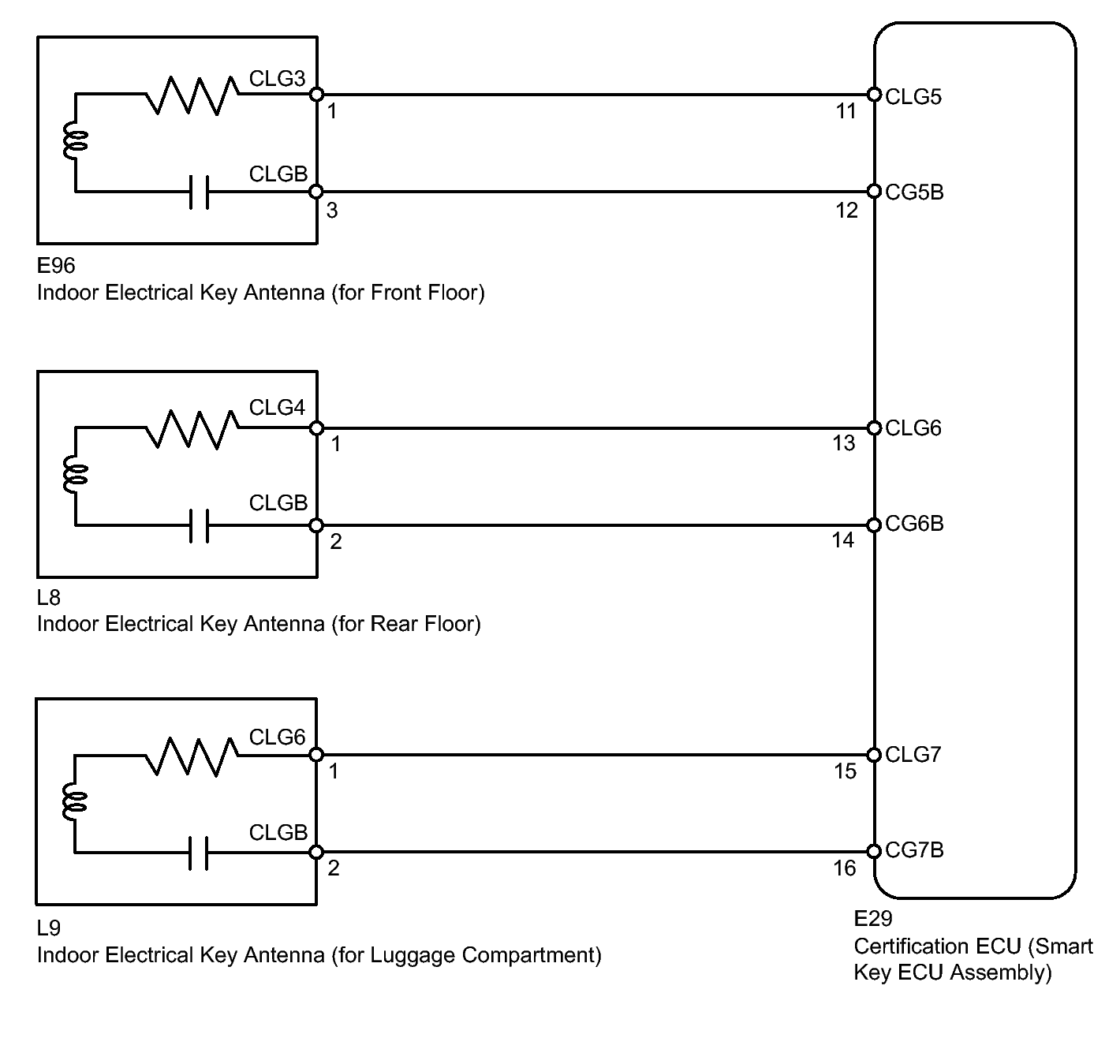

Fig 1: Room Oscillator - Wiring Diagram

GTY118151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
