Back Door Entry Lock and Unlock Functions do not Operate [08/2013 - ]: Procedure
- CHECK POWER DOOR LOCK OPERATION
- When the door control switch of the master switch assembly is operated, check that the locked doors unlock.
OK
Door locks operate normally.
NG → See step 8
OK: Go to next step
- When the door control switch of the master switch assembly is operated, check that the locked doors unlock.
- CHECK POWER BACK DOOR OPERATION
- When the power back door switch is operated, check that the power back door open and close.
OK
Power back door is open and close.
NG → See step 10
OK: Go to next step
- When the power back door switch is operated, check that the power back door open and close.
- READ VALUE USING TECHSTREAM (BACK DOOR LOCK SWITCH, BACK DOOR OPENER SWITCH)
- Using the Techstream, read the Data List.MAIN BODY
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Back Door Handle SW Back door opener switch / ON or OFF ON: Back door opener switch pushed
OFF: Back door opener switch not pushed- SMART ACCESSTester Display Measurement Item/Range Normal Condition Diagnostic Note Tr/B-Door Lock SW Back door lock switch / ON or OFF ON: Back door lock switch pushed
OFF: Back door lock switch not pushed- OK
"ON" (switch is pushed) and "OFF" (switch is not pushed) appears on the screen.
NG → See step 7
OK: Go to next step
- Using the Techstream, read the Data List.

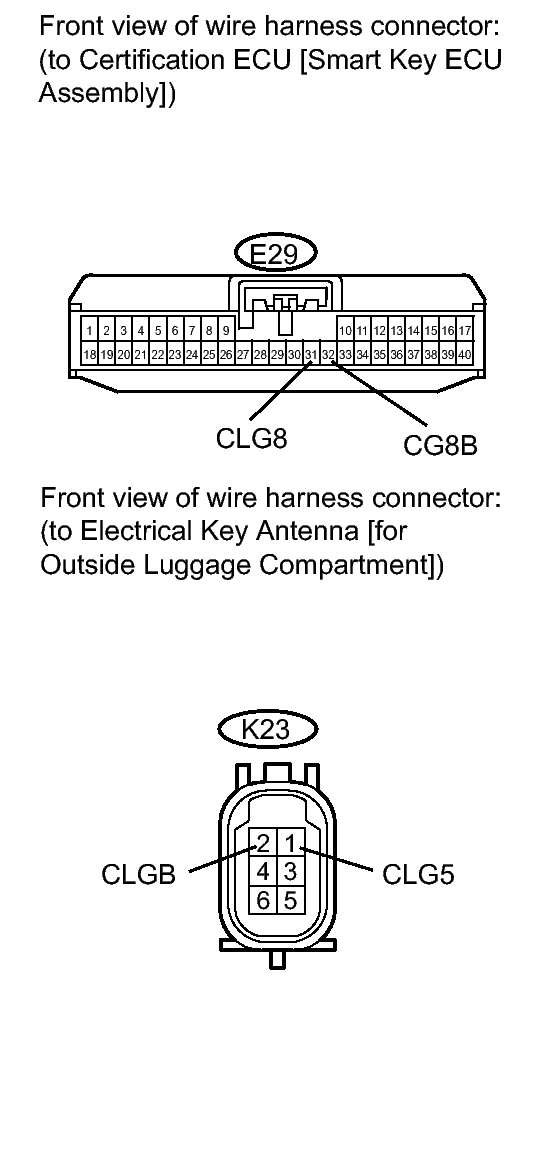

- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY] - OUTSIDE ELECTRICAL KEY ANTENNA)
- Disconnect the E29 ECU connector.
- Disconnect the K23 antenna connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition E29-31 (CLG8) - K23-1 (CLG5) Always Below 1 Ω E29-32 (CG8B) - K23-2 (CLGB) Always Below 1 Ω E29-31 (CLG8) - Body ground Always 10 kΩ or higher E29-32 (CG8B) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the E29 ECU connector.
- REPLACE ELECTRICAL KEY ANTENNA (for Outside Luggage Compartment)
- Replace the electrical key antenna (for outside luggage compartment). Refer to REMOVAL [08/2013 - ] .
NEXT: Go to next step
- CHECK ELECTRICAL KEY ANTENNA (for Outside Luggage Compartment) OPERATION
- Check that the entry functions operate normally.
OK
Entry functions operate normally.
NG → REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
OK → END (ELECTRICAL KEY ANTENNA [for Outside Luggage Compartment] IS DEFECTIVE)
- Check that the entry functions operate normally.
- CHECK HARNESS AND CONNECTOR (BACK DOOR OPENER SWITCH - BODY GROUND)
- Disconnect the S7 switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition S7-2 (L) - Body ground Always Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 9
- Disconnect the S7 switch connector.
- GO TO POWER DOOR LOCK CONTROL SYSTEM. Refer to PROBLEM SYMPTOMS TABLE [08/2013 - ]
- REPLACE BACK DOOR OPENER SWITCH. Refer to REMOVAL [08/2013 - ]
- GO TO POWER BACK DOOR SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2013 - ]
