Power Source Mode does not Change [09/2013 - ]: Wiring Diagram

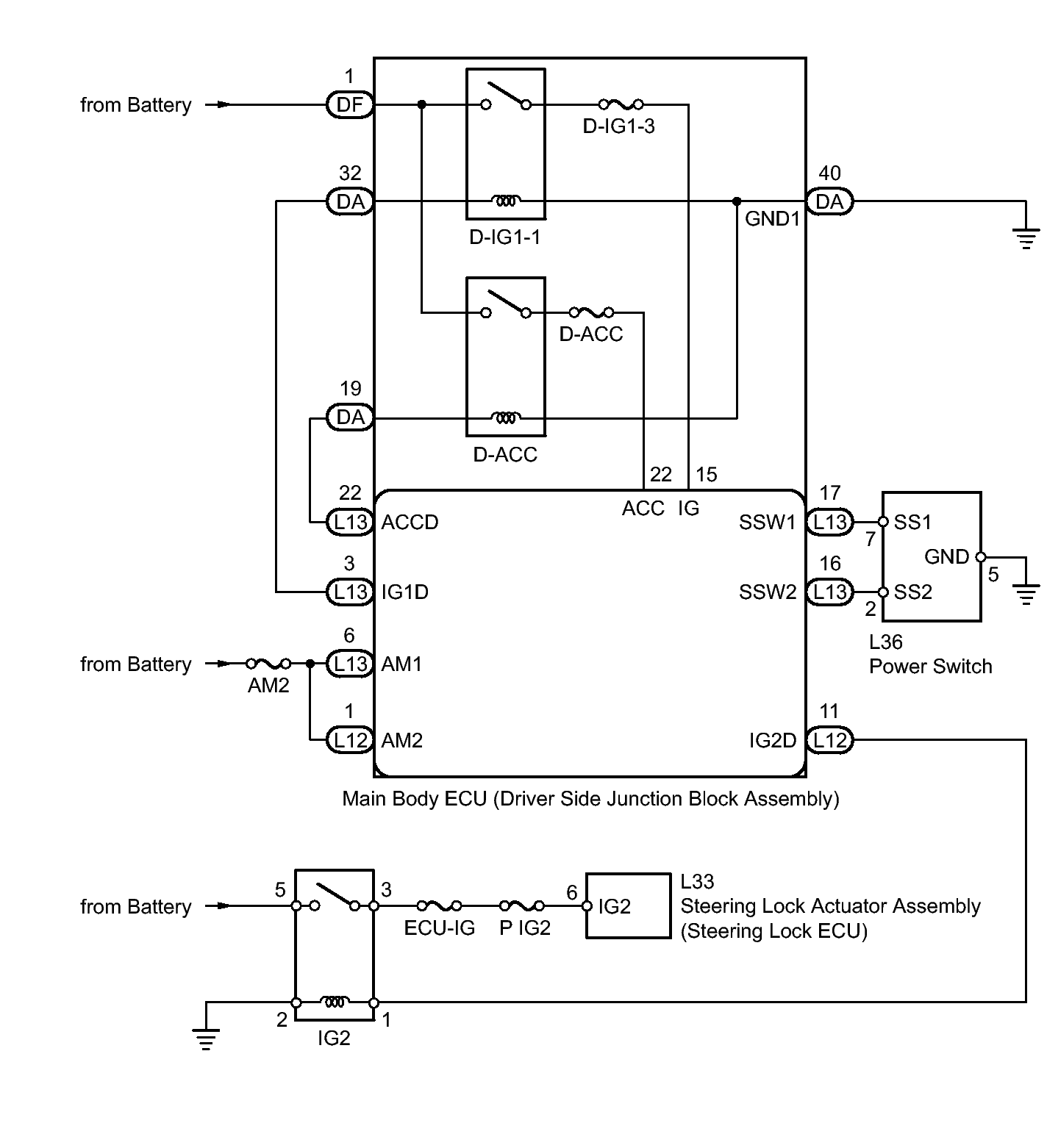

Fig 1: Main Body ECU Wiring Diagram

GTY398592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
