Rear Side Switch Module LIN Communication Malfunction [09/2013 - ]: Wiring Diagram

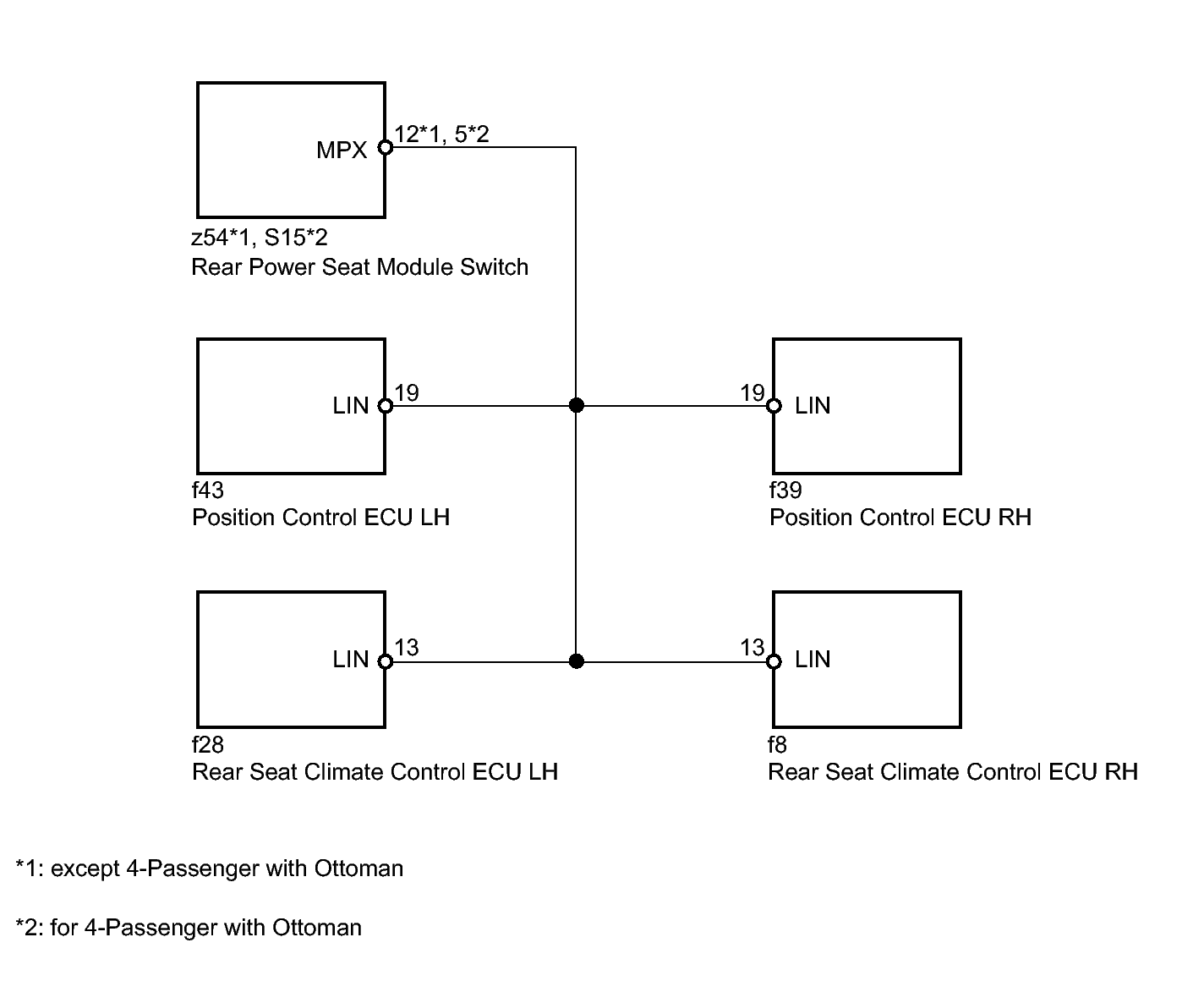

Fig 1: Rear Side Switch Module Communication Wiring Diagram

GTY408338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
