Rear Side Switch Module LIN Communication Malfunction [09/2013 - ]: Procedure

1. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Check for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 output occurs	A
   DTC U0211, U0246, U1130 or U1131 output occurs	B
   No DTC output occurs	C

B → See step   12

C → See step   13

A: Go to next step

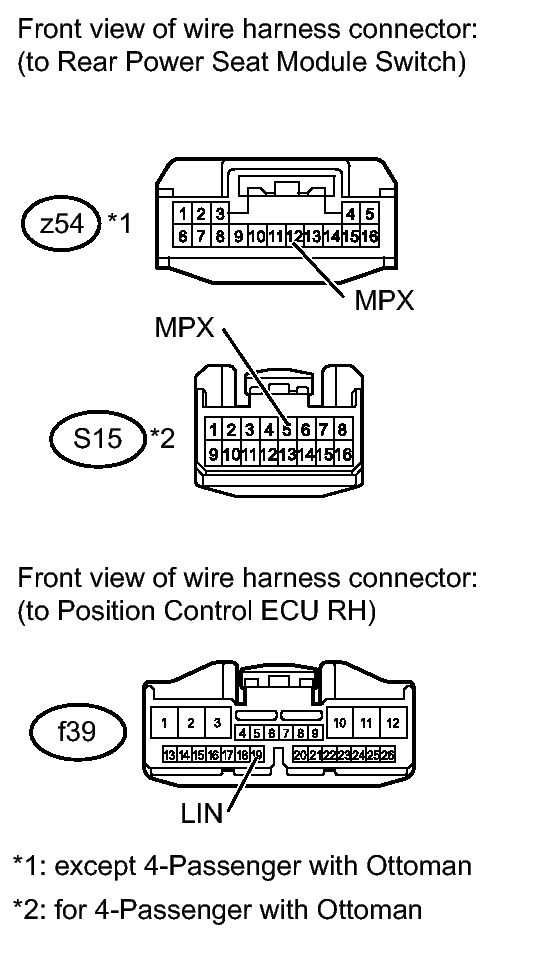

1. Disconnect the z54*1 or S15*2 module switch connector.
   • *1: except 4-Passenger with Ottoman
   • *2: for 4-Passenger with Ottoman

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the f39 ECU connector.
3. Measure the resistance and voltage according to the value(s) in the table below.

   Standard resistance

   except 4-Passenger with Ottoman

   for 4-Passenger with Ottoman

   Tester Connection	Condition	Specified Condition
   z54-12 (MPX) - f39-19 (LIN)	Always	Below 1 Ω
   z54-12 (MPX) or f39-19 (LIN) - Body ground	Always	10 kΩ or higher

   Tester Connection	Condition	Specified Condition
   S15-5 (MPX) - f39-19 (LIN)	Always	Below 1 Ω
   S15-5 (MPX) or f39-19 (LIN) - Body ground	Always	10 kΩ or higher

   Standard voltage

   except 4-Passenger with Ottoman

   for 4-Passenger with Ottoman

   Tester Connection	Condition	Specified Condition
   z54-12 (MPX) or f39-19 (LIN) - Body ground	Always	Below 1 V

   Tester Connection	Condition	Specified Condition
   S15-5 (MPX) or f39-19 (LIN) - Body ground	Always	Below 1 V

   RESULT



   Result	Proceed to
   NG	A
   OK (for 4-passenger with Ottoman)	B
   OK (for 5-passenger with Ottoman)	C
   OK (for Power Seat)	D

B → See step   14

C → See step   23

D → See step   24

A: Go to next step

1. Reconnect the z54*1 or S15*2 module switch connectors.
   • *1: except 4-Passenger with Ottoman
   • *2: for 4-Passenger with Ottoman
2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f39 ECU connector.
2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 output occurs	A
   DTC U0211 output occurs (except Ottoman)	B
   DTC U0211 output occurs (for Ottoman)	C

B → See step   15

C → See step   22

A: Go to next step

1. Reconnect the f39 ECU connector.
2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f43 ECU connector.
2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 output occurs	A
   DTC U0246 output occurs (except Ottoman)	B
   DTC U0246 output occurs (for Ottoman)	C

B → See step   16

C → See step   21

A: Go to next step

1. Reconnect the f43 ECU connector.
2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f8 ECU connector.
2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 output occurs	A
   DTC U1130 output occurs (for Power Seat)	B
   DTC U1130 output occurs (for Ottoman)	C

B → See step   17

C → See step   20

A: Go to next step

1. Reconnect the f8 ECU connector.
2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f28 ECU connector.
2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 output occurs	A
   DTC U1131 output occurs (for Power Seat)	B
   DTC U1131 output occurs (for Ottoman)	C

B → See step   18

C → See step   19

A → REPAIR OR REPLACE HARNESS OR CONNECTOR
