DTC U0327: Software Incompatibility with Vehicle Security Control Module [09/2013 - ]: Wiring Diagram

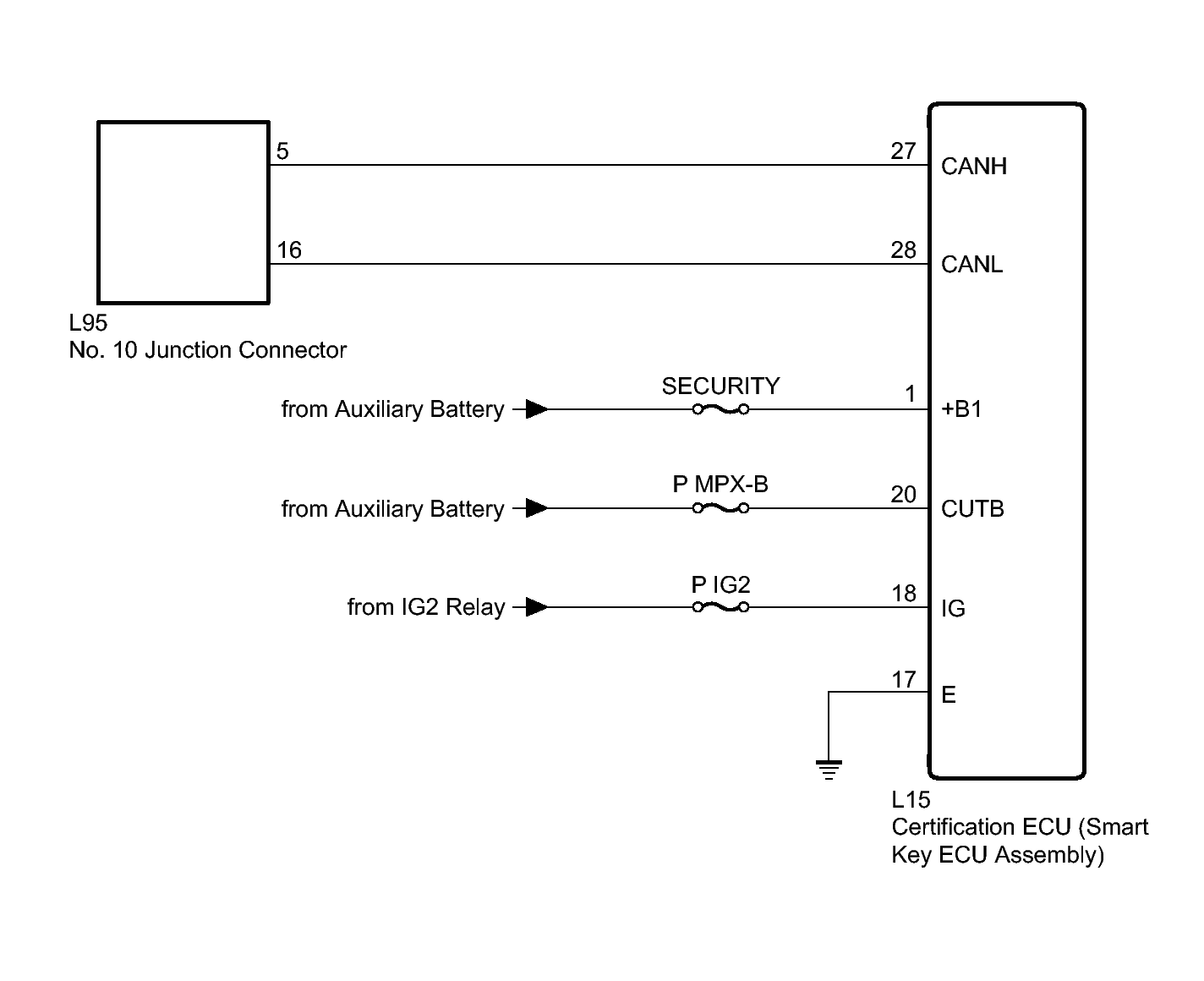

Fig 1: Certification ECU (Smart Key ECU Assembly) Communication Wiring Diagram
GTY401755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
