Automatic Transmission Connector End View (E50)

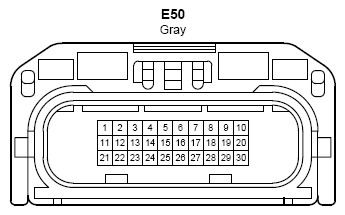

Fig 1: Automatic Transmission Connector End View (E50)

G10280320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
