Components [09/2013 - ]: Illustration

Fig 1: Identifying Object Recognition ECU Replacement Components (1 Of 2)
GTY408658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

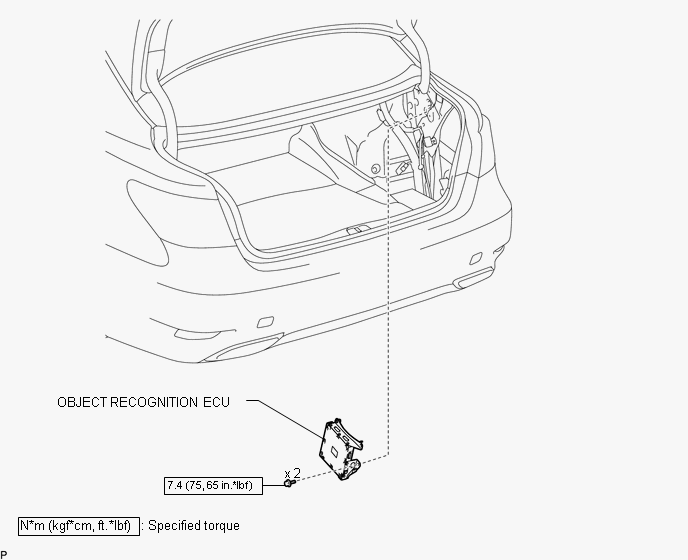

Fig 1: Identifying Object Recognition ECU Replacement Components With Torque Specifications (2 Of 2)
GTY409987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
