Components [09/2013 - ]: Illustration

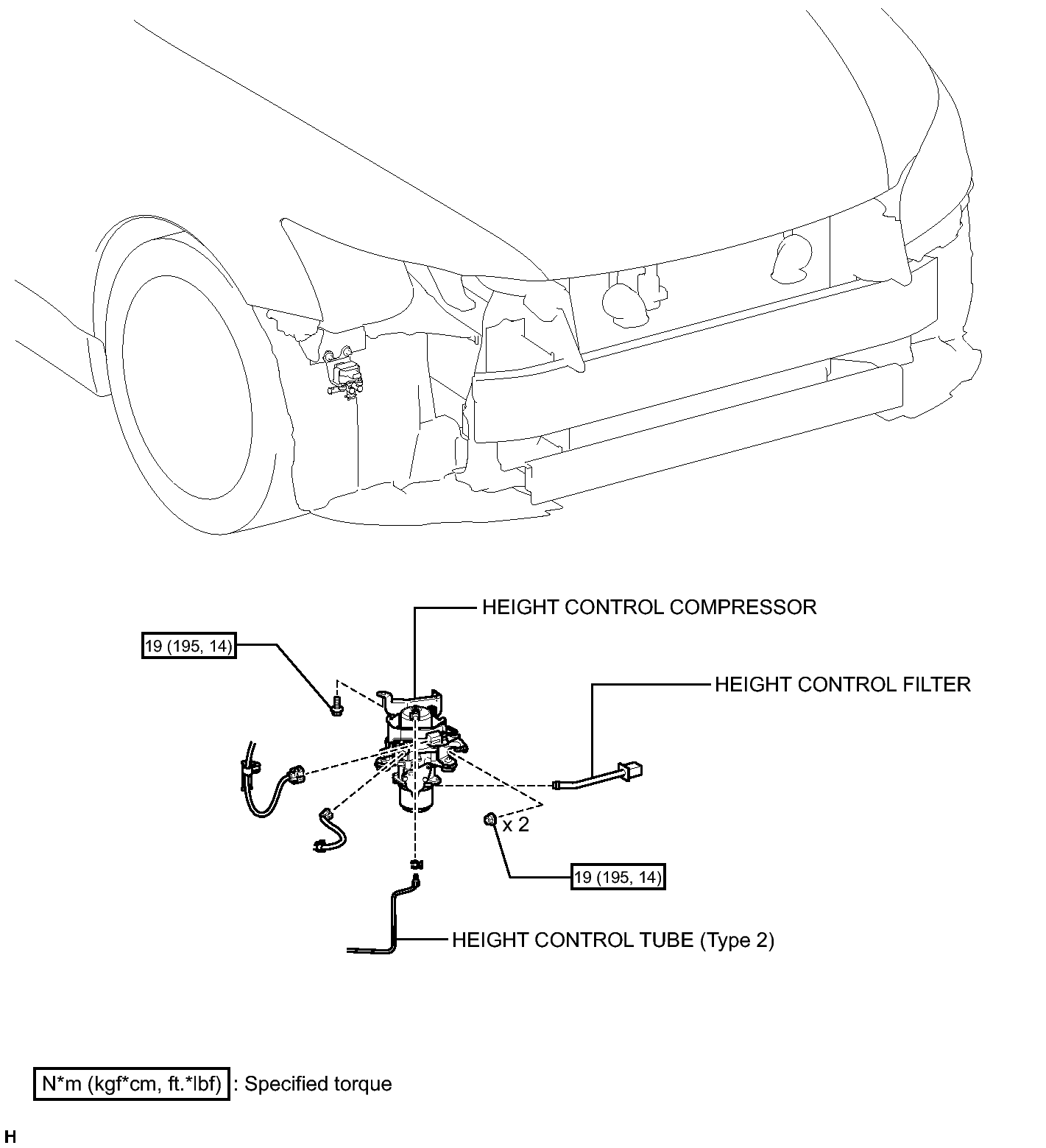

Fig 1: Identifying Height Control Compressor Replacement Components With Torque Specifications (1 Of 2)
GTY410251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Height Control Compressor Replacement Components With Torque Specifications (2 Of 2)
GTY289042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
