Components [09/2013 - ]: Illustration

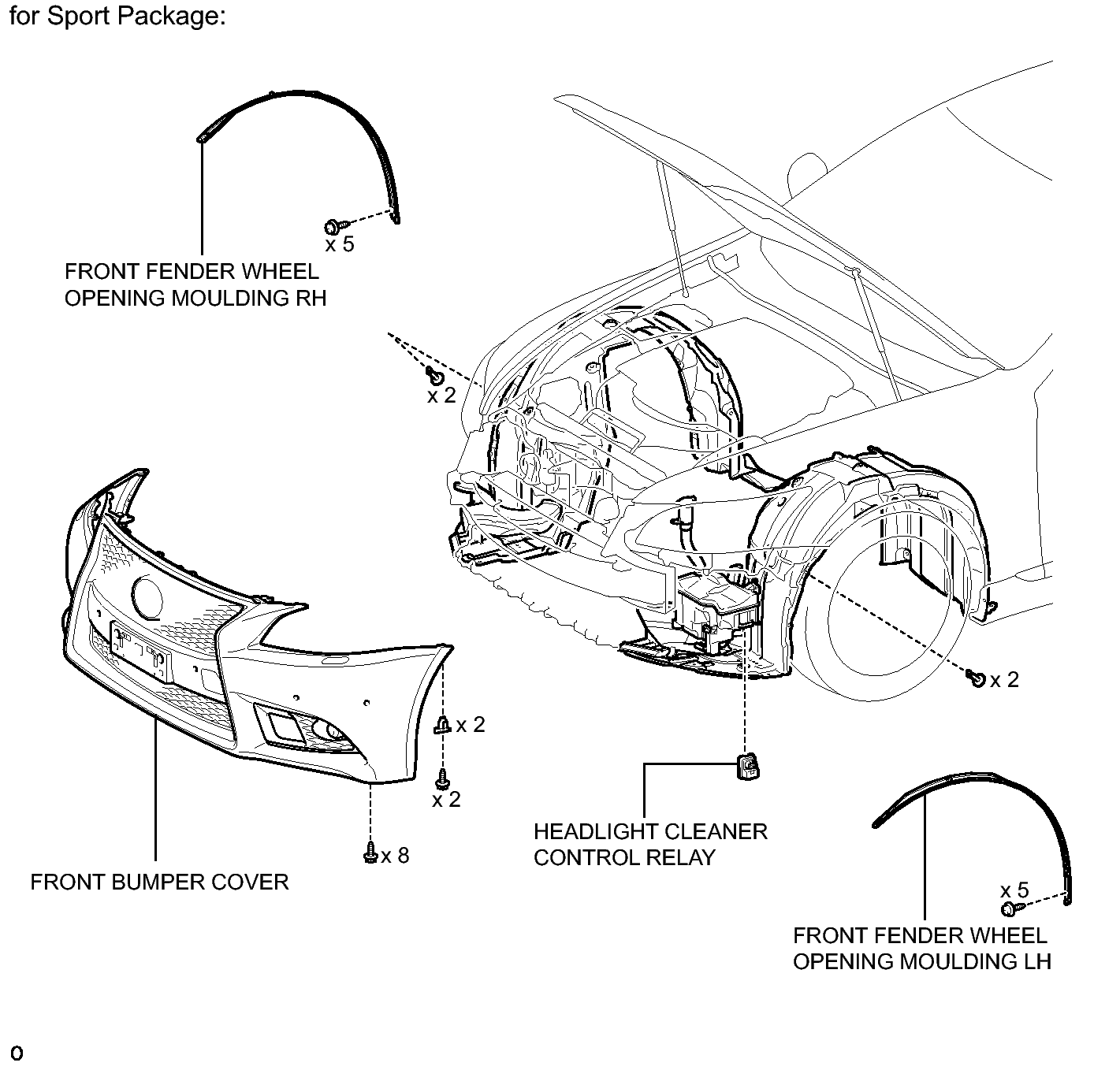

Fig 1: Identifying Headlight Cleaner Control Relay Replacement Components (For Sport Package)
GTY410811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

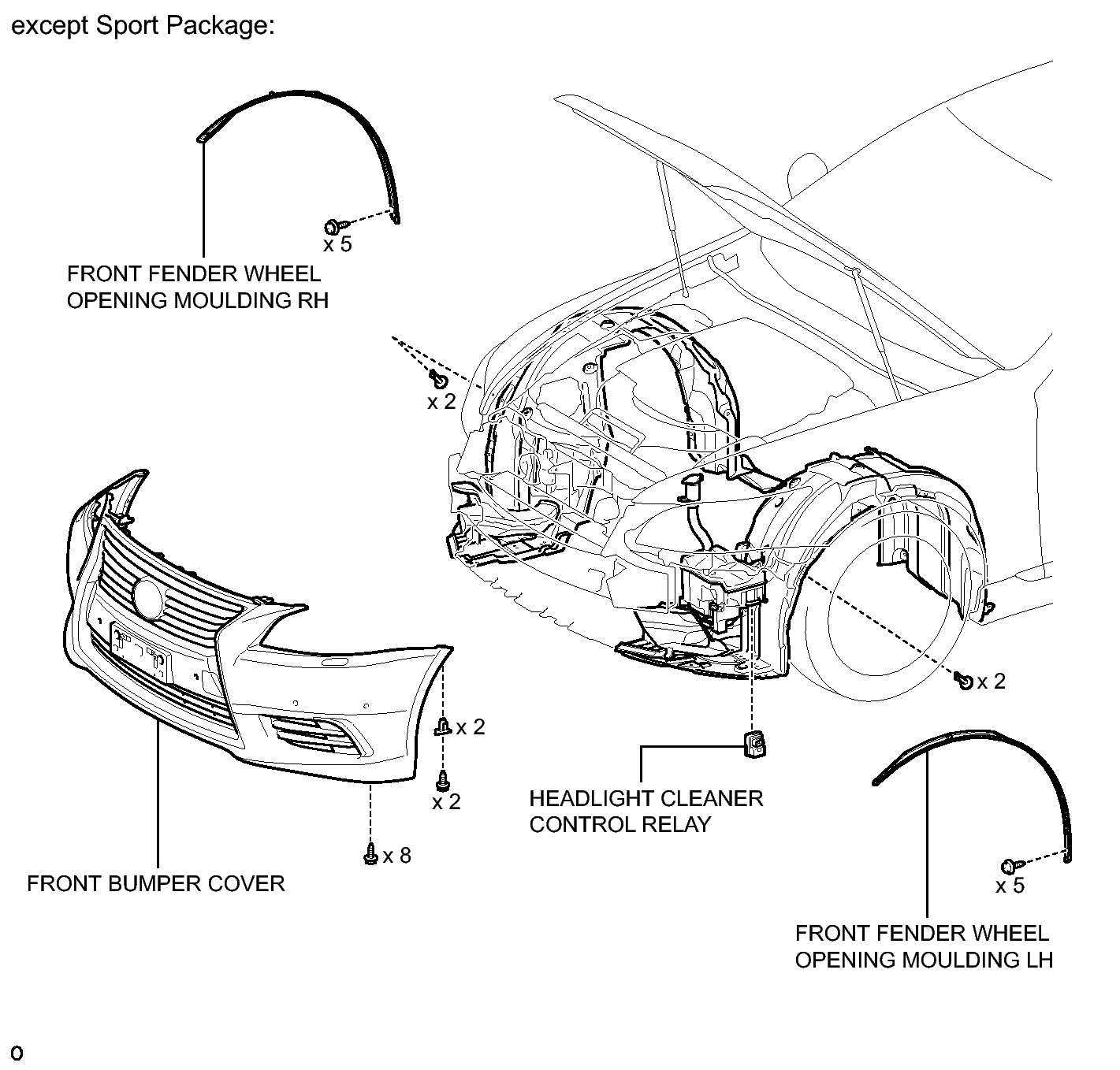

Fig 1: Identifying Headlight Cleaner Control Relay Replacement Components (Except Sport Package)
GTY414802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
