Rear Side Switch Module LIN Communication Malfunction [09/2013 - ]: Wiring Diagram

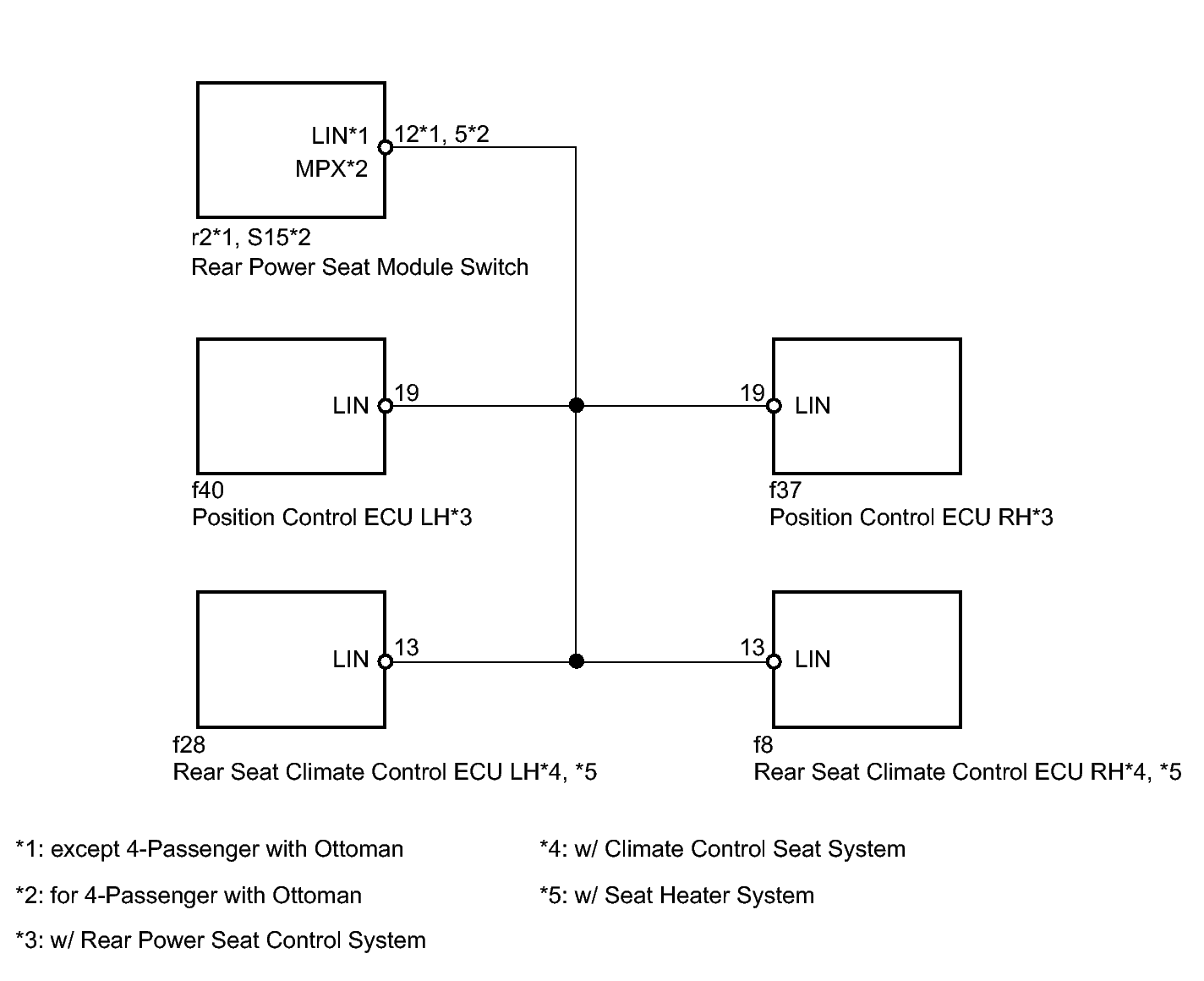

Fig 1: Rear Power Seat Module Switch Wiring Diagram

GTY459706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
