System Diagram [09/2013 - ]

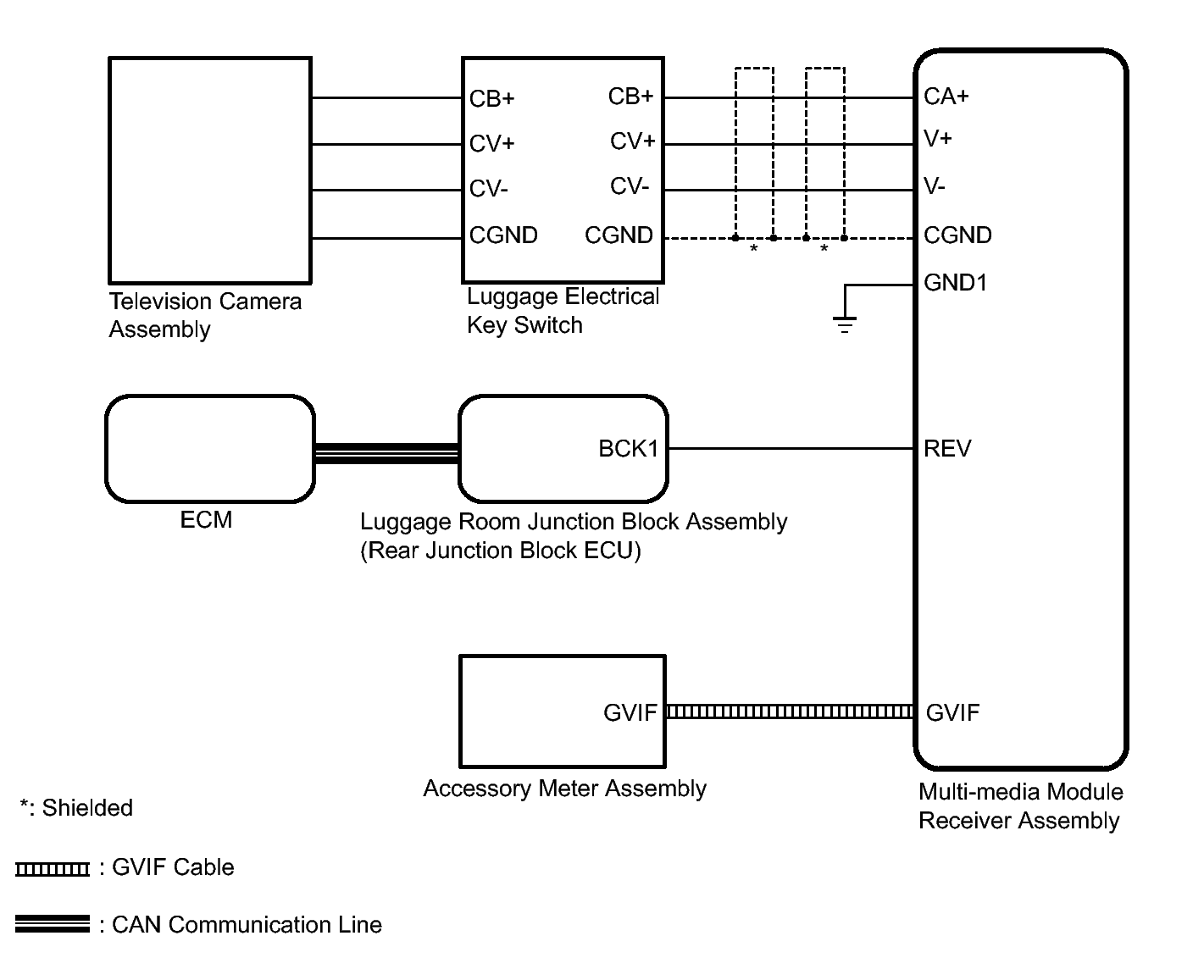

Fig 1: Rear View Monitor System Diagram
GTY408970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Rear Junction Block ECU Shift position signal CAN
Multi-media Module Receiver Assembly Accessory Meter Assembly Display signal GVIF
