Engine Room Relay Block Assembly No. 1 and Engine Room Junction Block Assembly No. 1 Inner Circuit

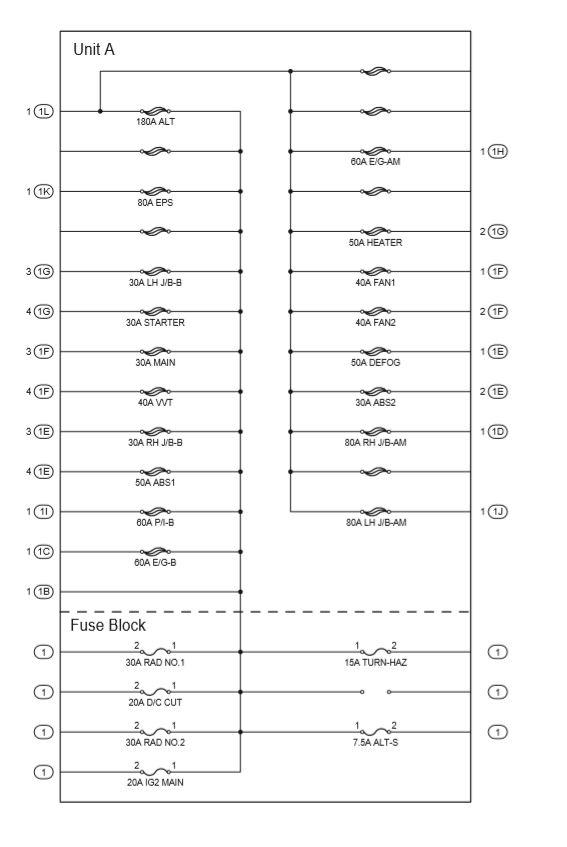

Fig 1: Engine Room R/B And J/B Assembly No. 1 Inner Circuit Diagram (Unit A/B)
G00586134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
