DTC P0190: Fuel Rail Pressure Sensor Circuit; DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193: Fuel Rail Pressure Sensor Circuit High Input [08/2013 - ]: Wiring Diagram

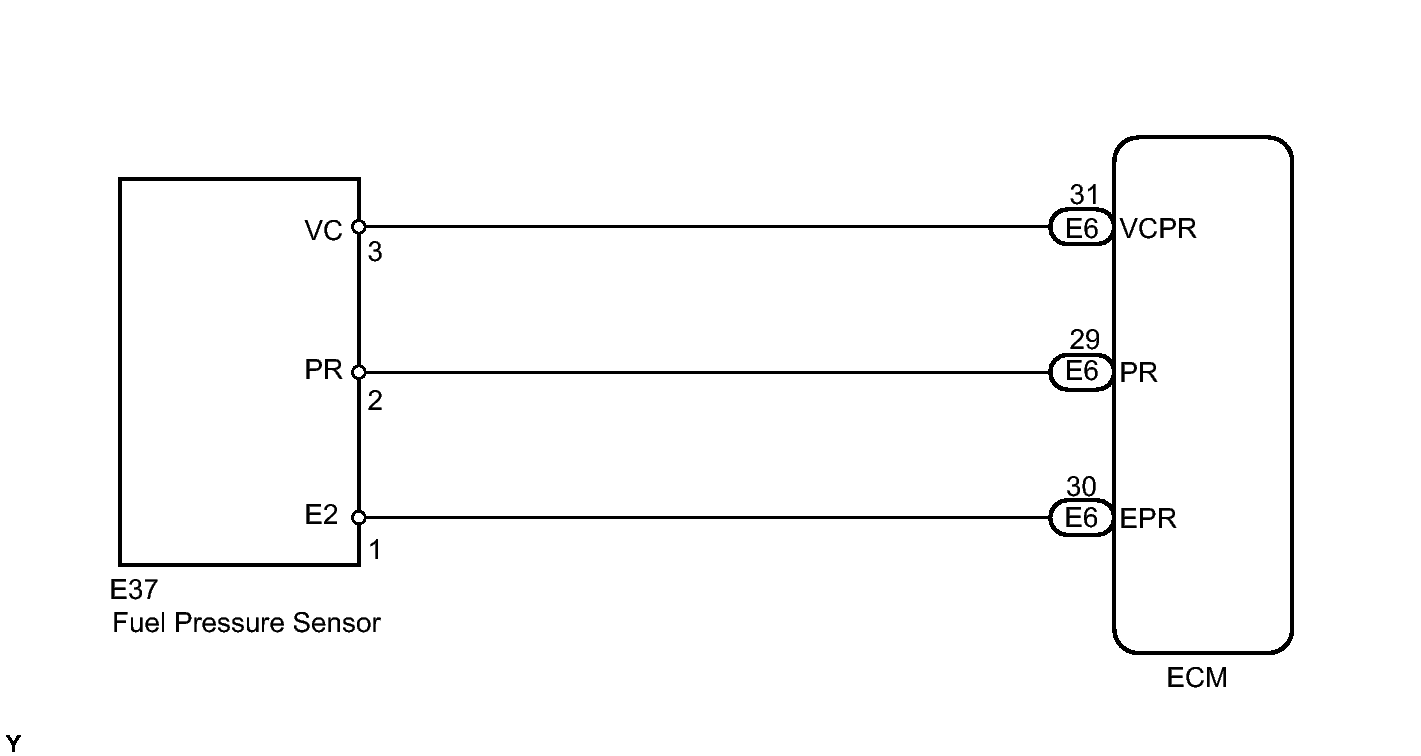

Fig 1: Fuel Pressure Sensor Wiring Diagram
GTY273160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
