Terminals Of Ecu [09/2020 - ]

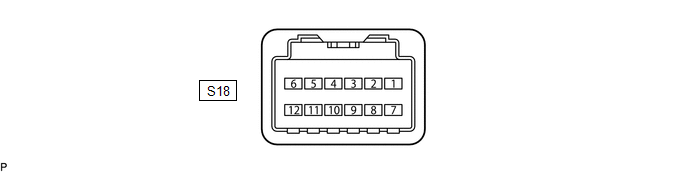

- CHECK FORWARD RECOGNITION CAMERA NOTE:
- DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the Techstream once the inspection has been completed.
- Do not apply excessive force to the forward recognition camera connector.
- Measure the voltage and resistance according to the value(s) in the table below.
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition S18-7 (IGB) - S18-10 (GND) V - BR Power source Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V S18-8 (BZ) - S18-10 (GND) SB - BR Skid control buzzer output Engine switch on (IG), buzzer not sounding 11 to 14 V Engine switch on (IG), buzzer sounding Below 1 V S18-10 (GND) - Body ground BR - Body ground Ground Always Below 1 Ω
