Reassembly [04/2013 - 10/2016]: Procedure

  1. INSTALL REAR LIGHT GASKET
    1. Type A:

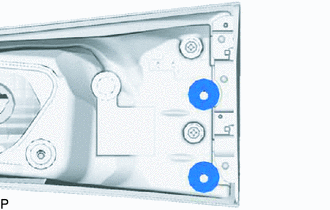

      GTY461342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 2 new rear light gaskets.
    2. Type B:

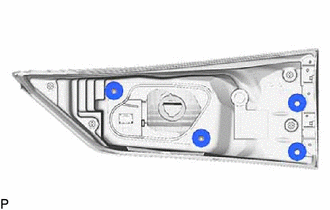

      GTY515113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 4 new rear light gaskets.
  2. INSTALL REAR LIGHT SOCKET AND WIRE
    1. Connect the connector to install the rear light socket and wire.

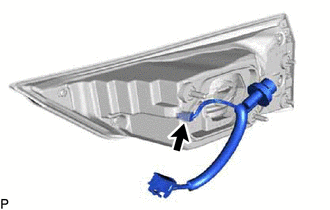

      GTY469660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR LIGHT GASKET
    1. Type A:

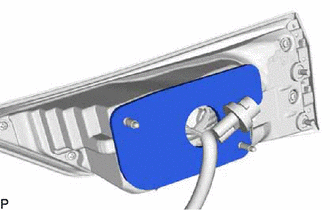

      GTY461336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new rear light gasket.
    2. Type B:

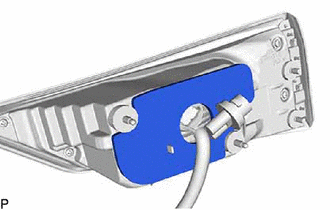

      GTY521374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new rear light gasket.
  4. INSTALL BACK-UP LIGHT BULB
    1. Type A:
      1. Install the back-up light bulb to the rear light socket and wire.
      2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.

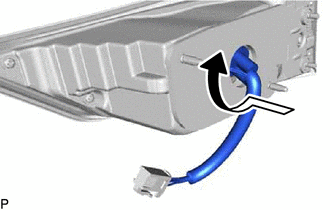

        GTY461338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:
      1. Install the back-up light bulb to the rear light socket and wire.
      2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.

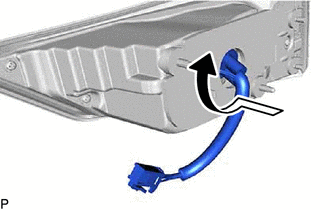

        GTY515114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
