DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [06/2014 - 10/2016]: Wiring Diagram

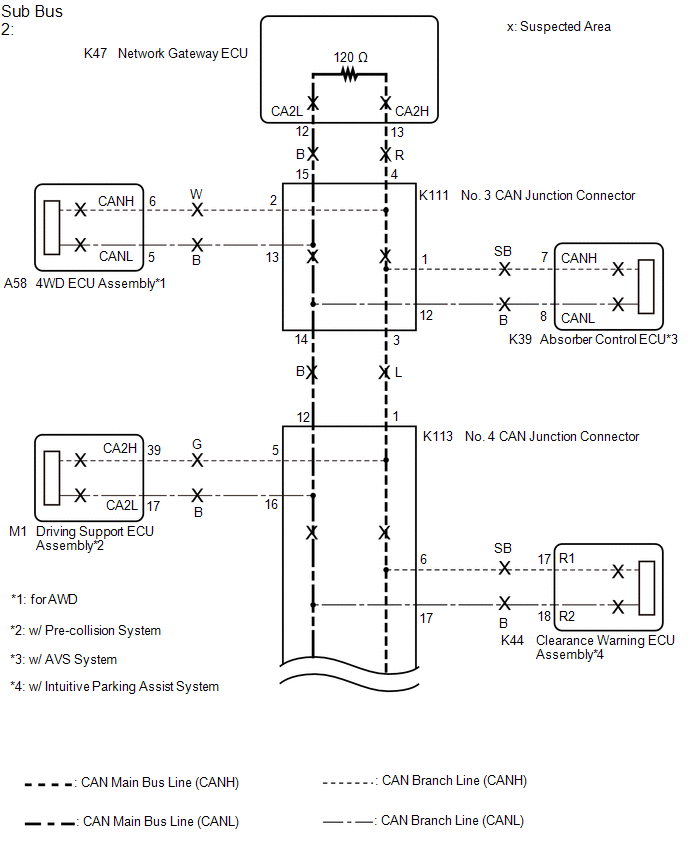

GTY465481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

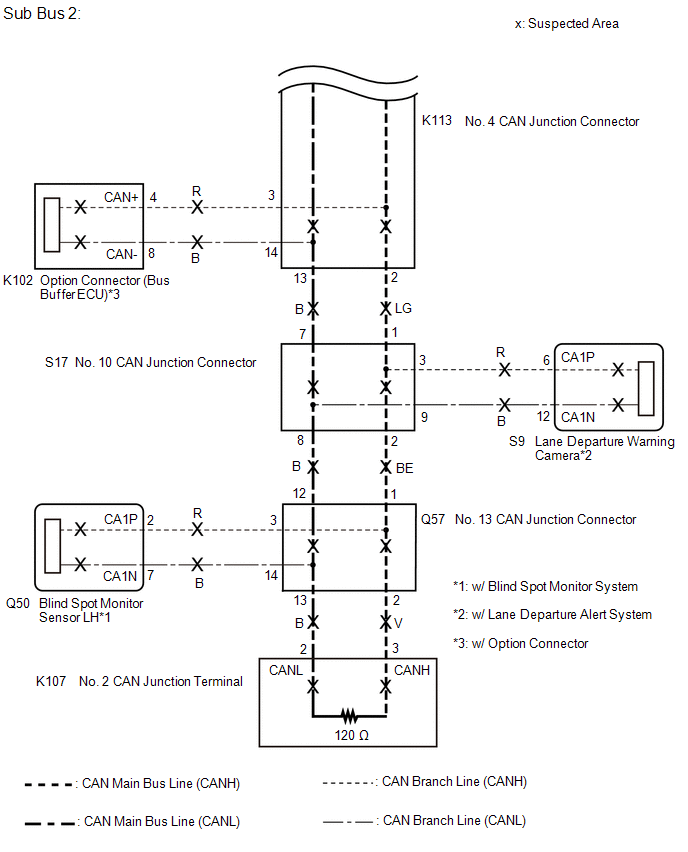

GTY505385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
