System Diagram [08/2013 - ]

HINT:

Refer to following systems for details of system diagram for LEXUS ENFORM System.

• Navigation System. Refer to SYSTEM DIAGRAM [08/2013 - ]
• Safety Connect System. Refer to SYSTEM DIAGRAM [08/2013 - ]

1. MOST NETWORK COMMUNICATION LINE

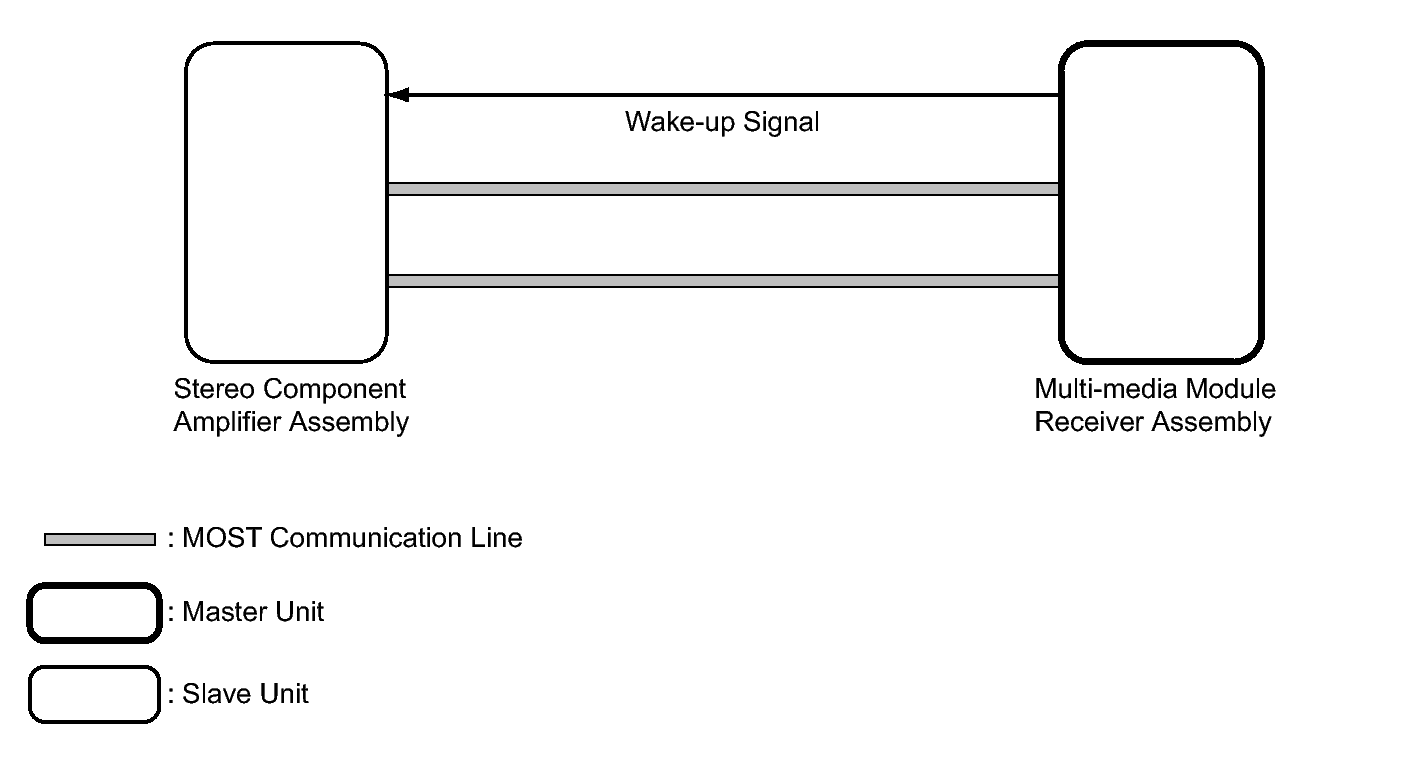

   Fig 1: Lexus Enform System Diagram (Most Network Communication Line)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. OTHER

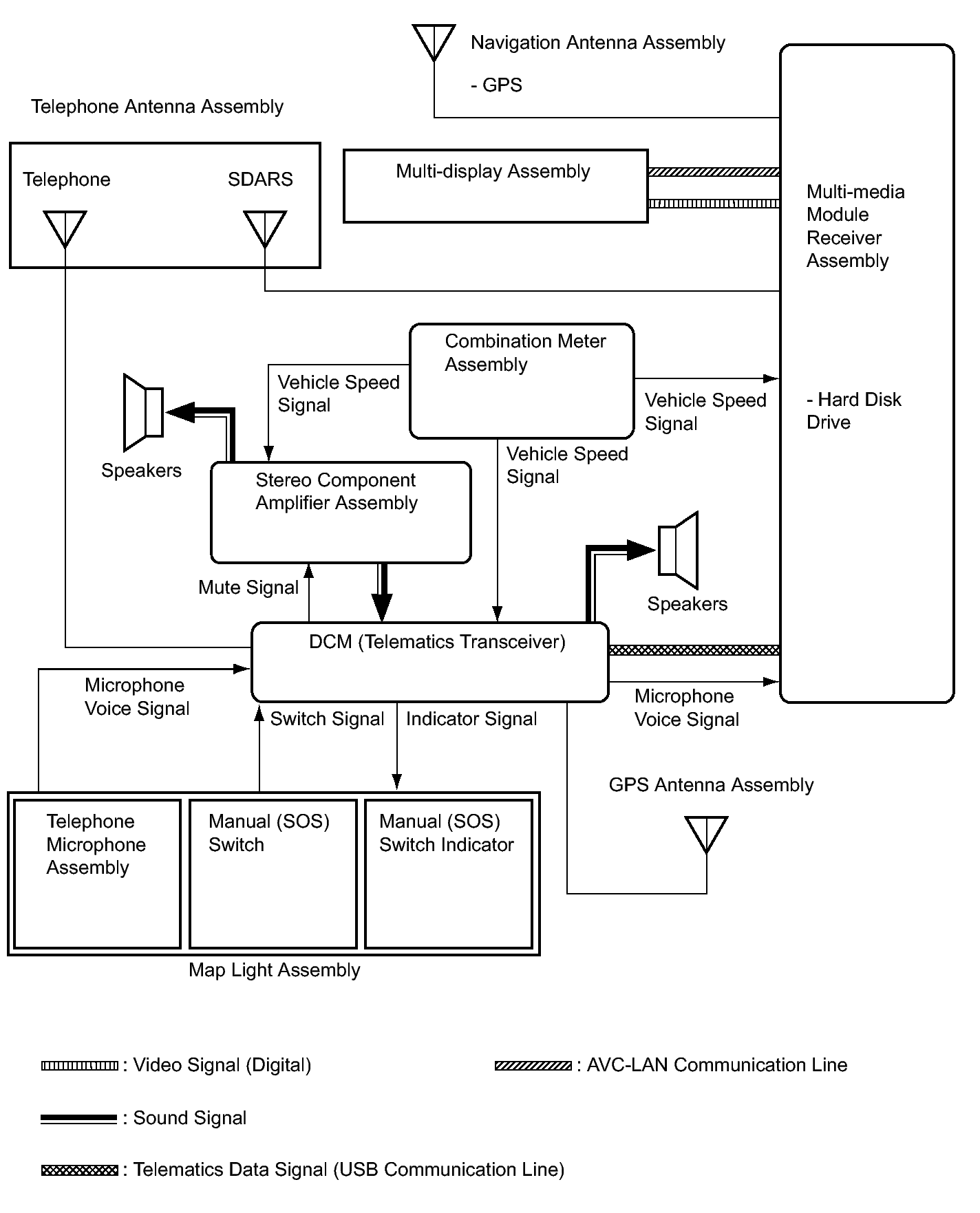

   Fig 2: LEXUS ENFORM System Diagram

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
