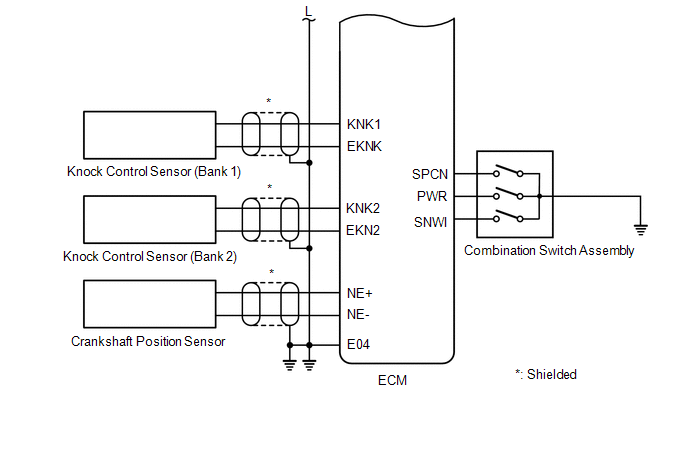

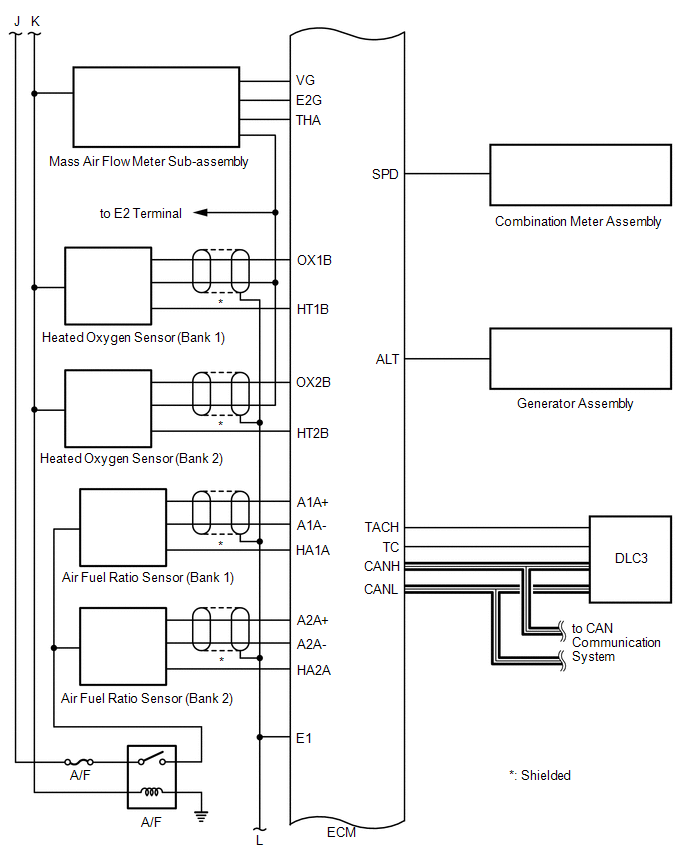

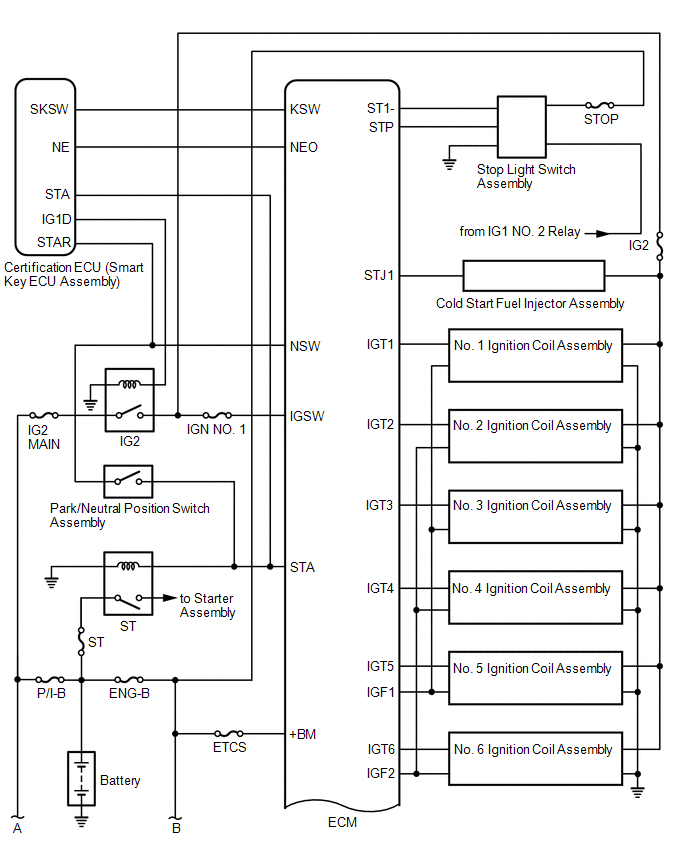

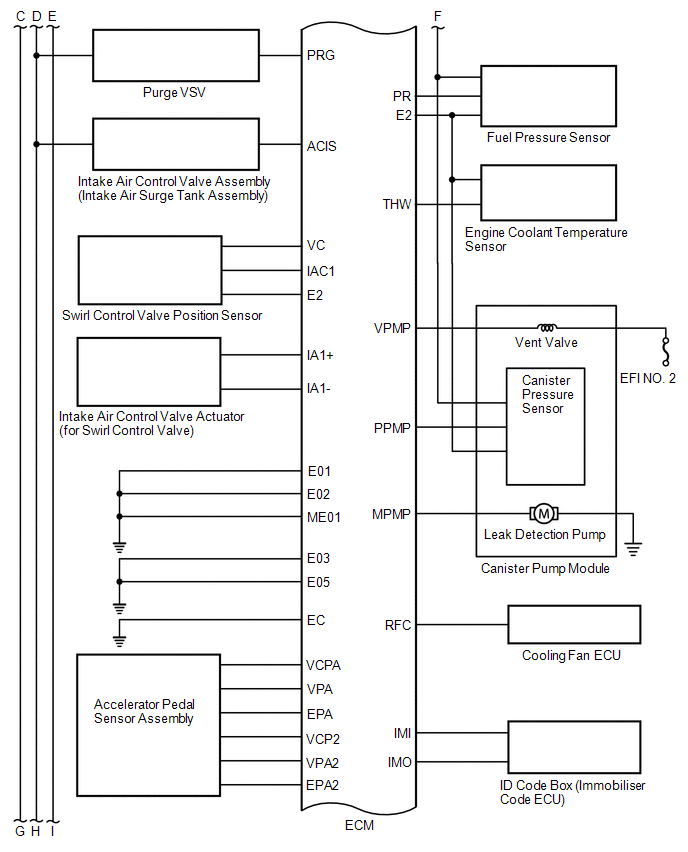

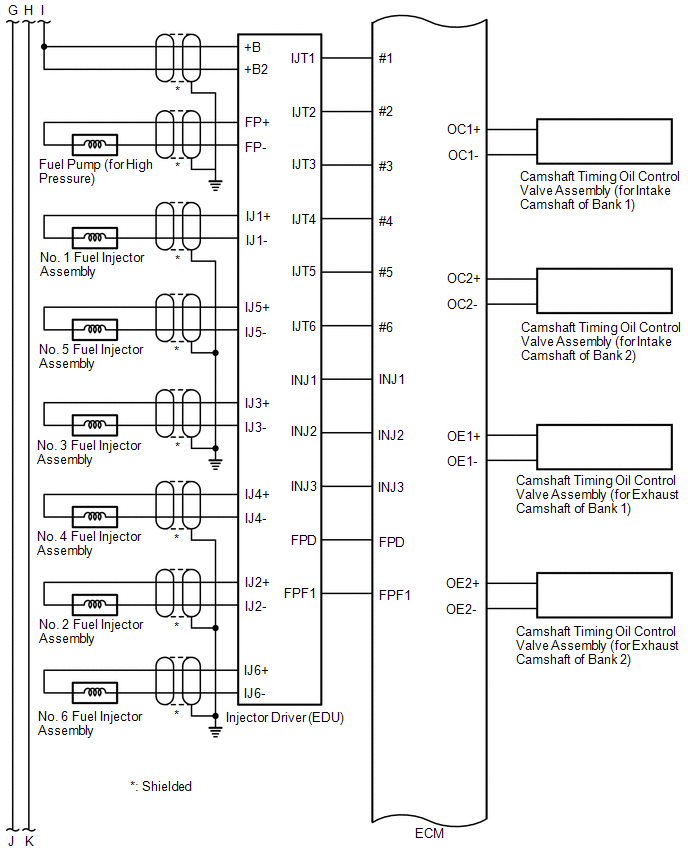

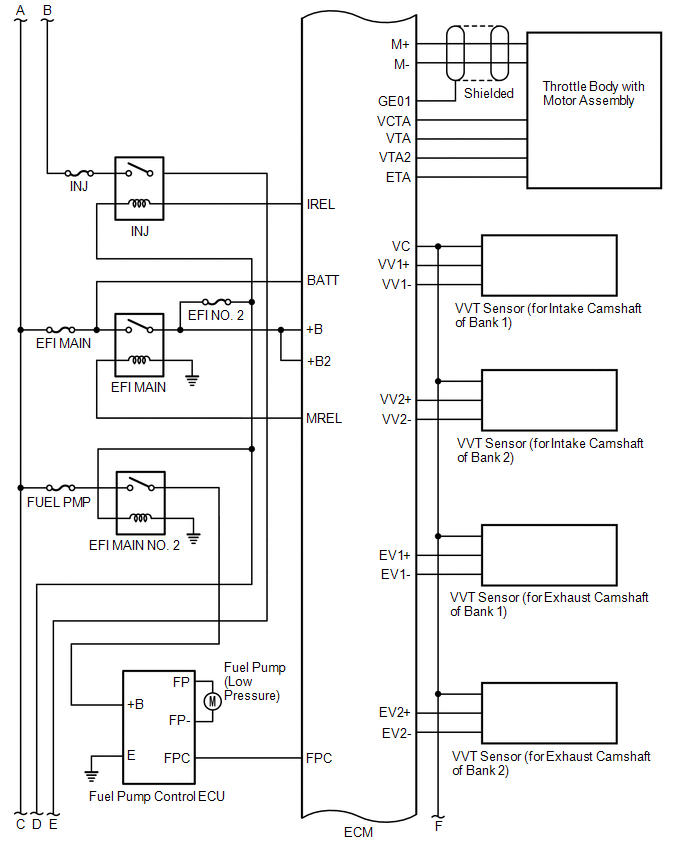

Home >> Lexus >> 2014 >> IS 250 Base, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (4GR-FSE) - Diagnostics - Introduction (1 Of 2) >> SFI System >> System Diagram [04/2013 - 08/2015] >> System Diagram [04/2013 - 08/2015]
