Removal [04/2013 - 08/2015]: Procedure

Refer to REMOVAL [04/2013 - 08/2015]

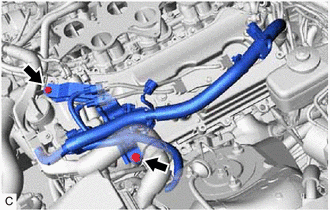

1. Remove the 2 nuts and disconnect the wire harness from the cylinder head cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 bolts and disconnect the ignition coil cover bracket from the cylinder head cover sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the 6 ignition coil assembly connectors.

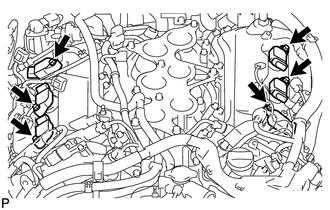

4. Remove the 6 bolts and 6 ignition coil assemblies from the cylinder head cover sub-assembly.
   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 6 spark plugs from the cylinder head assembly.
   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.
