Variable Gear Ratio Steering System - Diagnostic Codes & Symptom Tests
>>
Variable Gear Ratio Steering System
>>
DTC C1595-55: Lost Communication with Steering Angle Sensor Module(SIL); DTC C15C4-68: Steering Signal Not Detected [04/2013 - 10/2016]
>>

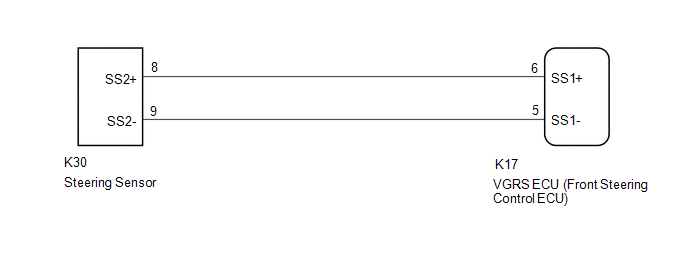

Wiring Diagram
DTC C1595-55: Lost Communication with Steering Angle Sensor Module(SIL); DTC C15C4-68: Steering Signal Not Detected [04/2013 - 10/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
