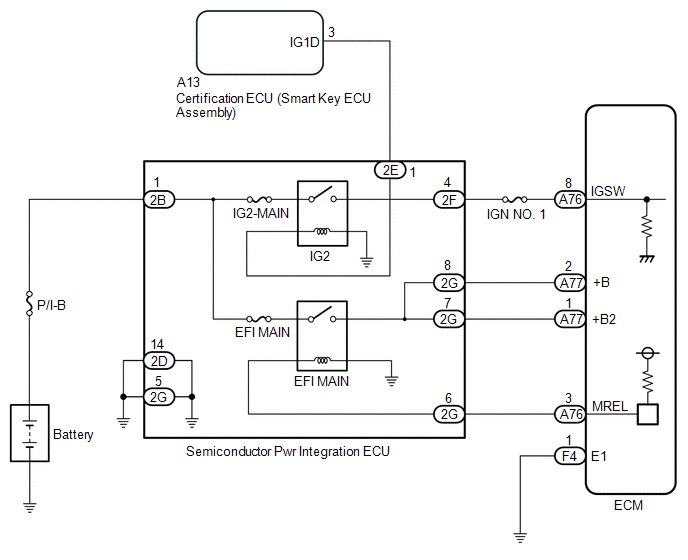

ECM Power Source Circuit [04/2013 - 08/2015]: Wiring Diagram

GTY463749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
