System Diagram [10/2017 - ]

  1. WIPER AND WASHER SYSTEM

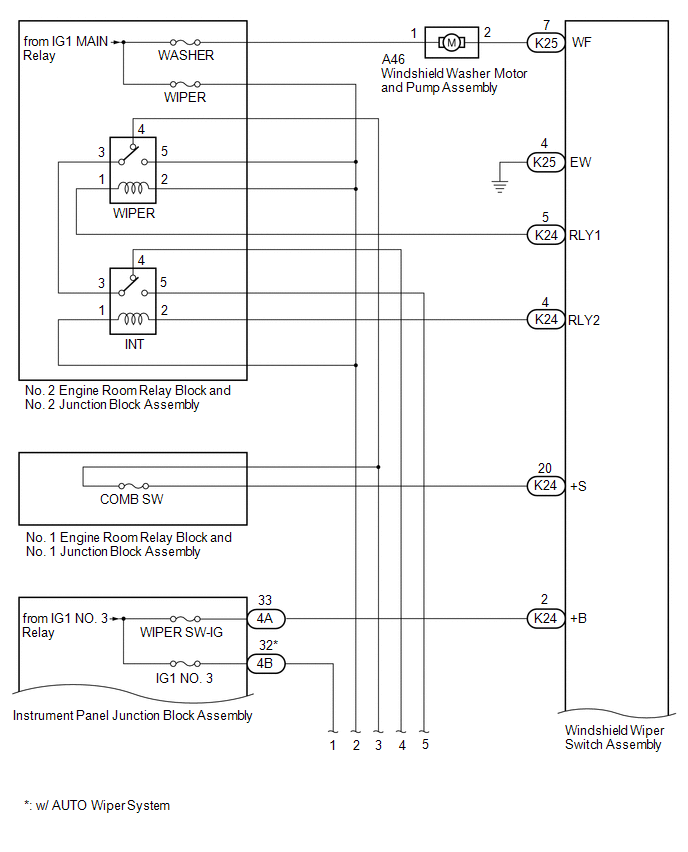

    Fig 1: Wiper And Washer System Diagram (1 Of 2)
    GTY790548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

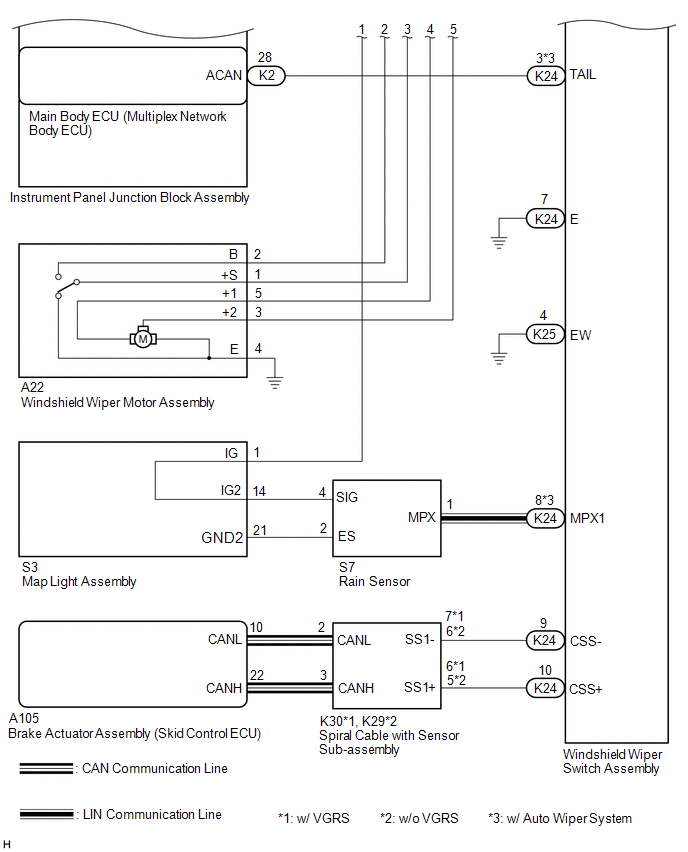

    Fig 2: Wiper And Washer System Diagram (2 Of 2)
    GTY800225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HEADLIGHT CLEANER SYSTEM (w/ Headlight Cleaner System)

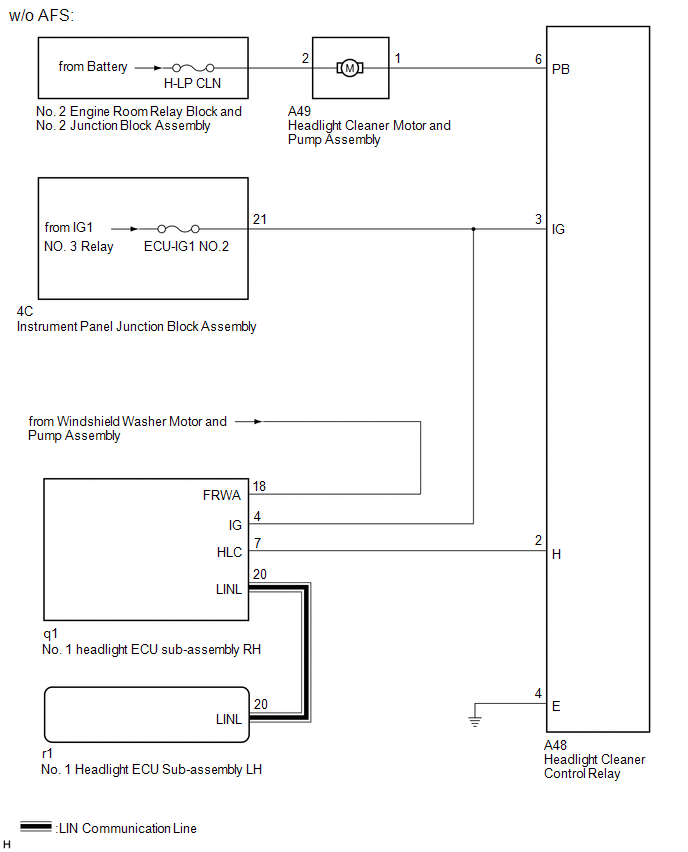

    Fig 3: Headlight Cleaner System Diagram (1 Of 2)
    GTY638199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

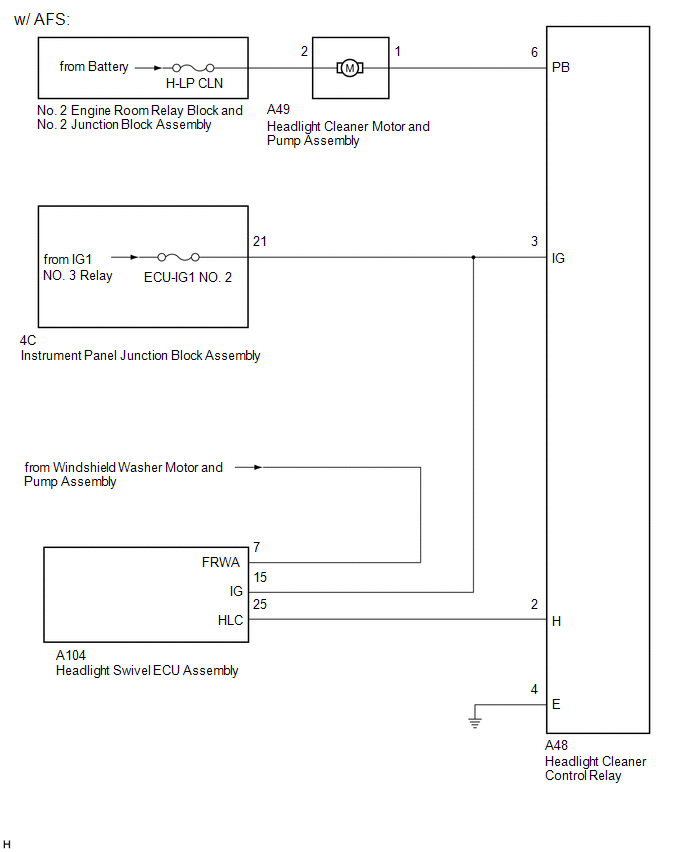

    Fig 4: Headlight Cleaner System Diagram (2 Of 2)
    GTY620538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. WASHER FLUID LEVEL WARNING SYSTEM
    Fig 5: Washer Fluid Level Warning System Wiring Diagram
    GTY469805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
