Reassembly [04/2013 - 06/2014]: Procedure

  1. INSTALL FOG LIGHT BULB

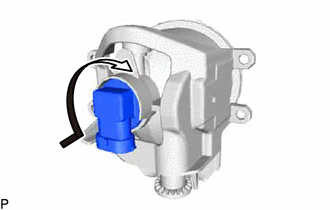

    1. Turn the fog light bulb in the direction indicated by the arrow in the illustration to install it.
      GTY461684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.
