Operation Check [10/2016 - 09/2020]

  1. BLIND SPOT MONITOR BEAM AXIS CONFIRMATION

    HINT:

    The blind spot monitor beam axis confirmation is performed to confirm whether the sensor's beam axis is correct, and perform adjustment of the beam axis by using reflector.

    1. When performing the blind spot monitor beam axis confirmation, move the vehicle to a place where the space shown in the illustration can be secured.
      GTY444362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Perform this inspection on level ground.
      • Make sure that there are no metal objects around the vehicle or on the ground.
      • Unload the vehicle before beginning the inspection.
      • Confirm that the tire pressure is correct before beginning the inspection.
      • Do not place any objects other than the reflector (such as a large metallic object) in or allow people to enter the inspection area (W 9 m (29.53 ft.) x L 10 m (32.81 ft.) x H 4 m (13.12 ft.)) shown in the illustration.
    2. Place the reflector.

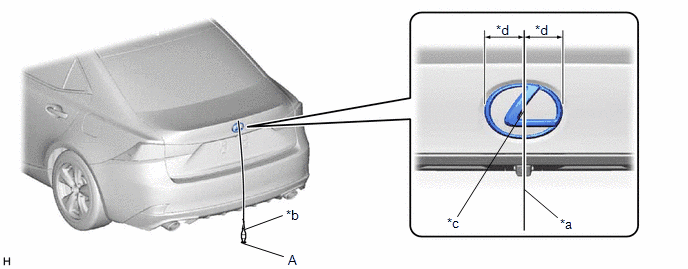

      1. From the center of the rear bumper (center of the emblem), hang a weight with a pointed tip, and mark the rear center point of the vehicle on the ground (mark A).
        GTY653327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center point *d Equal Distance to Center

        HINT:

        Lightly flick the string with your fingers several times to confirm that the string is aligned with mark A.

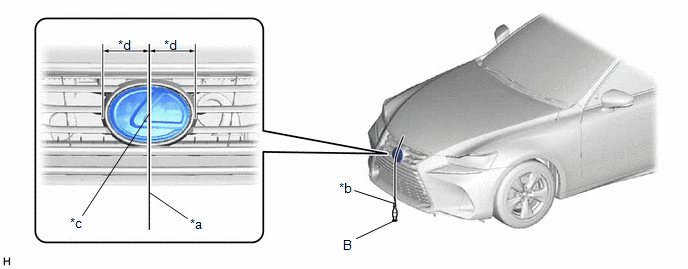

      2. From the center of the front bumper (center of the emblem), hang a weight with a pointed tip, and mark the front center point of the vehicle on the ground (mark B).
        GTY644877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center point *d Equal Distance to Center

        HINT:

        Lightly flick the string with your fingers several times to confirm that the string is aligned with mark (B).

      3. Draw a vehicle center line so that it passes through mark (A) and (B) (front and rear center points).
        GTY376075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

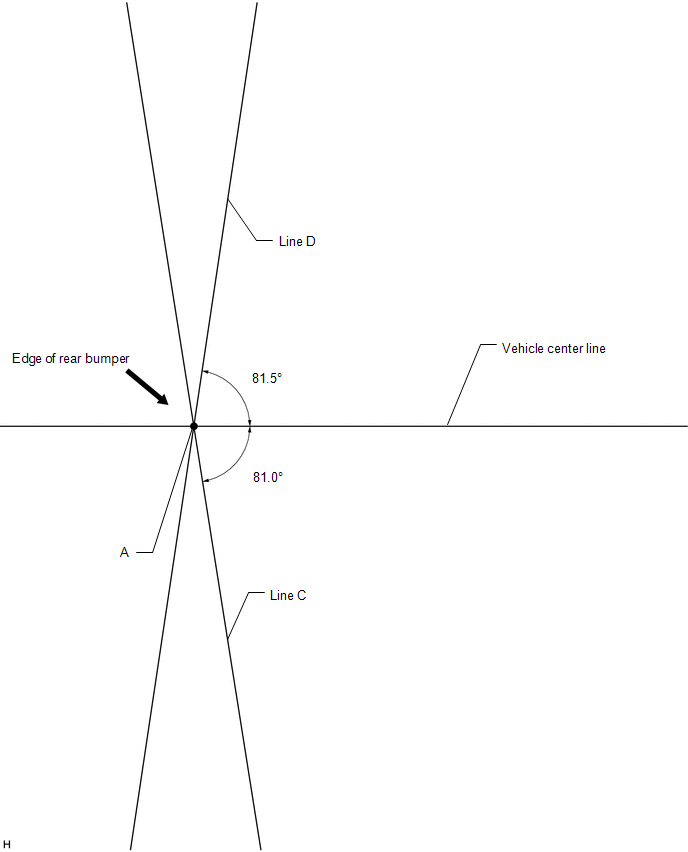

      4. Print out the following illustration on a large piece of paper.
        GTY631312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Place the printout on the floor with the point A aligned with the longitudinal center line of the vehicle.
        GTY555148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

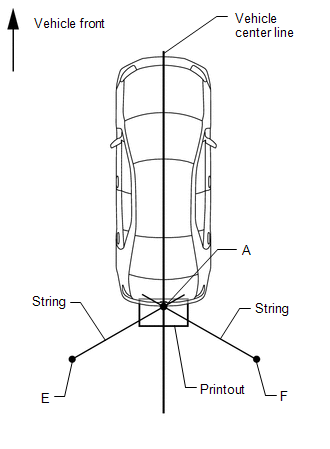

      6. Align a piece of string with line C and mark point E at a distance of 3161 mm (10.36 ft.) from point A. (LH)
        GTY631934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Align a piece of string with line D and mark point F at a distance of 3162 mm (10.37 ft.) from point A. (RH)

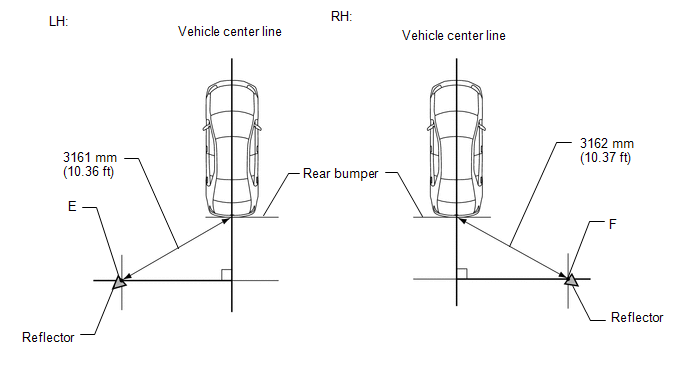

      8. Set the reflector at the point E or F shown in the illustration below.
        • SST: 09870-60000
          1. 09870-60010
        • SST: 09870-60040
        GTY621536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Set the reflector so that its center is 571 mm (1.87 ft.) above the ground.
          GTY650592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • The center of the triangular pyramid is the reference point for the setting position and angle.
          GTY551354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • Set the reflector as shown in the illustration so that the center of the triangular pyramid faces the blind spot monitor sensor.
    3. Perform the blind spot monitor beam axis display.
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the blind spot monitor main switch (warning canceling switch assembly) on.
      4. Turn the Techstream on.
      5. Enter the following menus: Body Electrical / Blind Spot Monitor Master or Blind Spot Monitor Slave / Utility / BSM Master Beam Axis Display or BSM Slave Beam Axis Display.

        Body Electrical > Blind Spot Monitor Master > Utility

        Tester Display
        BSM Master Beam Axis Display

        Body Electrical > Blind Spot Monitor Slave > Utility

        Tester Display
        BSM Slave Beam Axis Display
      6. Check the results displayed for the BSM beam axis display.

        Allowable Range

        Item Blind Spot Monitor Sensor LH (Master) Blind Spot Monitor Sensor RH (Slave)
        Angle -3.6 to +3.6° -3.6 to +3.6°

        HINT:

        If the results are outside the allowable range, it is possible that the reflector position is incorrect, there is a metallic object near the inspection area or the blind spot monitor sensor installation condition is abnormal, so check the reflector positioning, the inspection area and the blind spot monitor sensor installation condition, and perform the inspection again.

    4. Perform the blind spot monitor beam axis adjustment.
      1. Enter the following menus: Body Electrical / Blind Spot Monitor Master or Blind Spot Monitor Slave / Utility / BSM Master Beam Axis Adjustment or BSM Slave Beam Axis Adjustment.

        HINT:

        When values on the axis display are in the allowable range, performing this adjustment compensates for any deviation from the normal value.

        Body Electrical > Blind Spot Monitor Master > Utility

        Tester Display
        BSM Master Beam Axis Adjustment

        Body Electrical > Blind Spot Monitor Slave > Utility

        Tester Display
        BSM Slave Beam Axis Adjustment
  2. BLIND SPOT MONITOR SENSOR INSTALLATION CONDITION INSPECTION
    NOTE:
    • Perform this inspection on level ground.
    • Unload the vehicle before beginning the inspection.
    • Confirm that the tire pressure is correct before beginning the inspection.

    HINT:

    The blind spot monitor sensor installation condition inspection is performed to confirm whether the sensor is perpendicular to the floor surface (+/-4°) by using a jig, and that the sensor is 16 to 24° from the line parallel to the vehicle center line.

    1. Remove the rear bumper.

      Refer to REMOVAL [10/2016 - 09/2020]

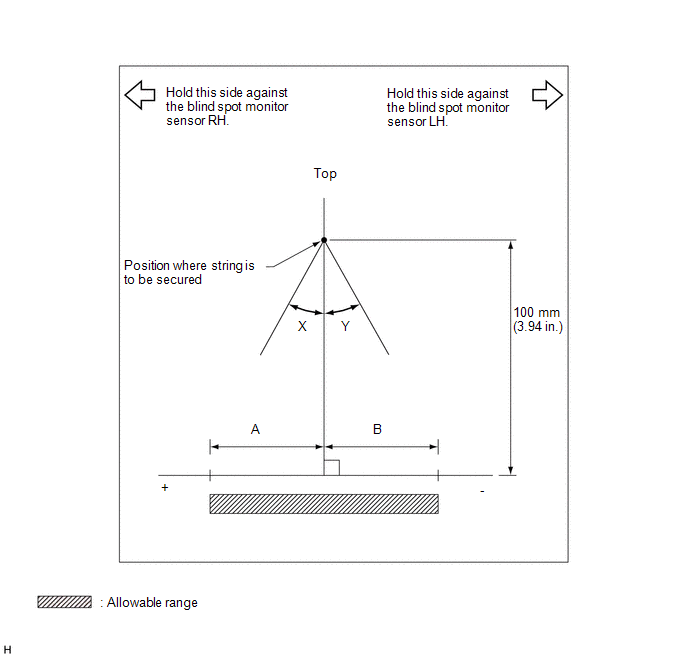

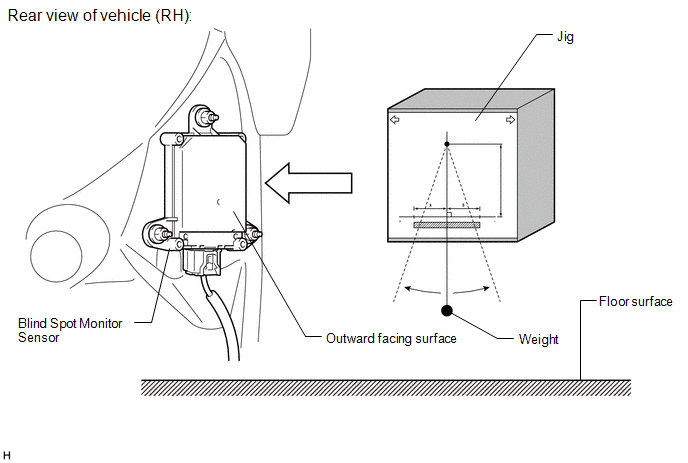

    2. Attach a jig similar to the one shown in the illustration to the outward facing surface of the blind spot monitor sensor and check that the measurement or angle is within the allowable range to confirm that the blind spot monitor sensor is perpendicular to the floor surface (+/-4°).

      HINT:

      A digital angle meter can also be used to check that the blind spot monitor sensor is perpendicular to the floor surface or within the allowable range.

      GTY647408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      GTY514477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD

        A B
      Blind spot monitor sensor LH (Master) 7 mm
      (0.276 in.)      		 -7 mm
      (-0.276 in.)
      Blind spot monitor sensor RH (Slave) 7 mm
      (0.276 in.)      		 -7 mm
      (-0.276 in.)
        X Y
      Blind spot monitor sensor LH (Master) 4° -4°
      Blind spot monitor sensor RH (Slave) 4° -4°

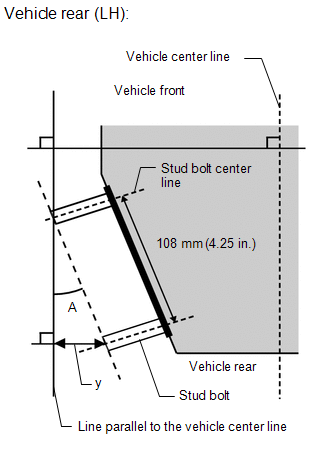

    3. Using the sensor installation stud bolt center lines as a reference, check that the stud bolts are as shown in the illustration.
      GTY635370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      Dimension Specified Value
      y 29 to 44 mm
      (1.14 to 1.73 in.)
      Degree Specified Value
      A 16 to 24°

      HINT:

      If the results are not as specified, it is possible that the blind spot monitor sensor installation area (frame, stud bolt) is deformed, so make corrections as necessary.
