DTC B1783: Rear Occupant Classification Sensor RH Circuit Malfunction [08/2013 - ]: Wiring Diagram

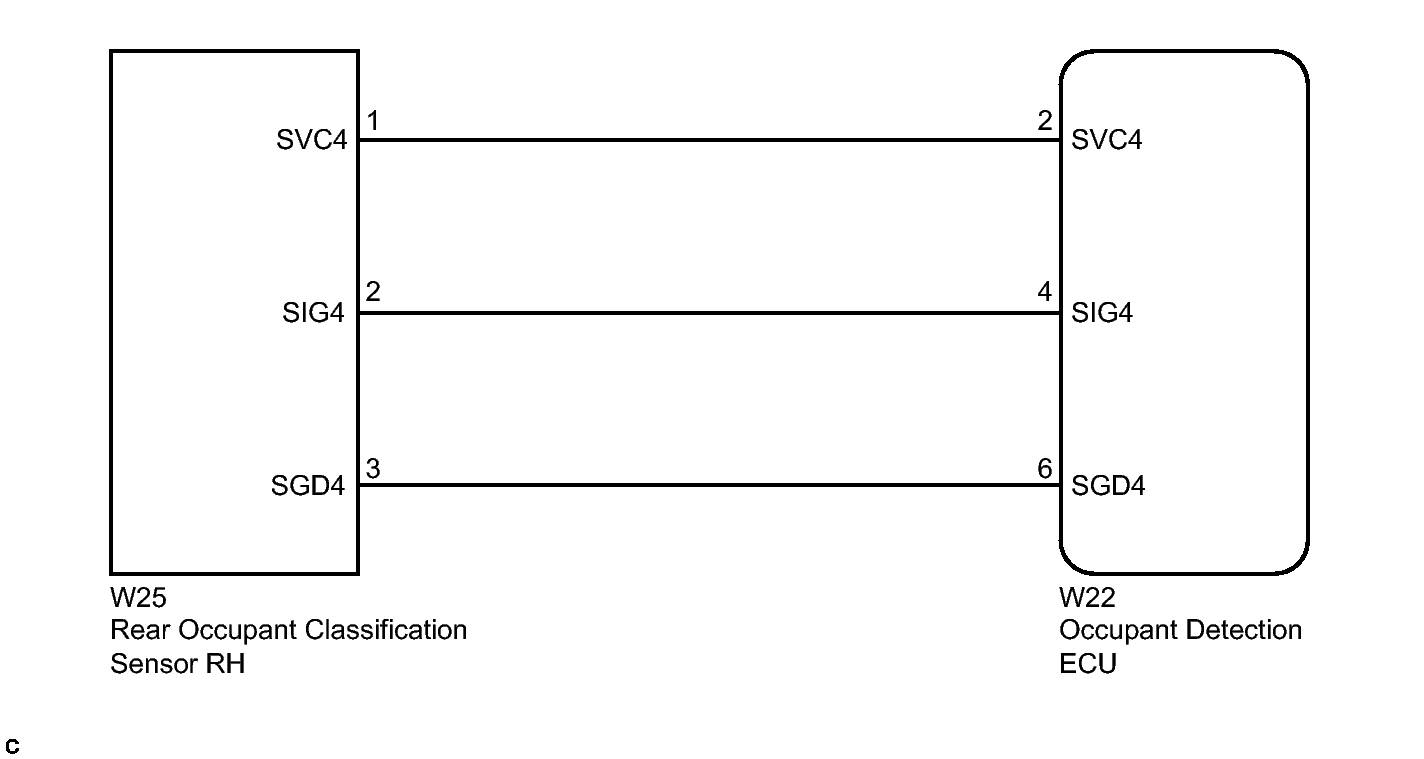

Fig 1: Rear Occupant Classification Sensor RH Circuit Wiring Diagram
GTY417994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
