Unable to Unlock Steering Wheel (Engine cannot Start) [08/2013 - ]: Wiring Diagram

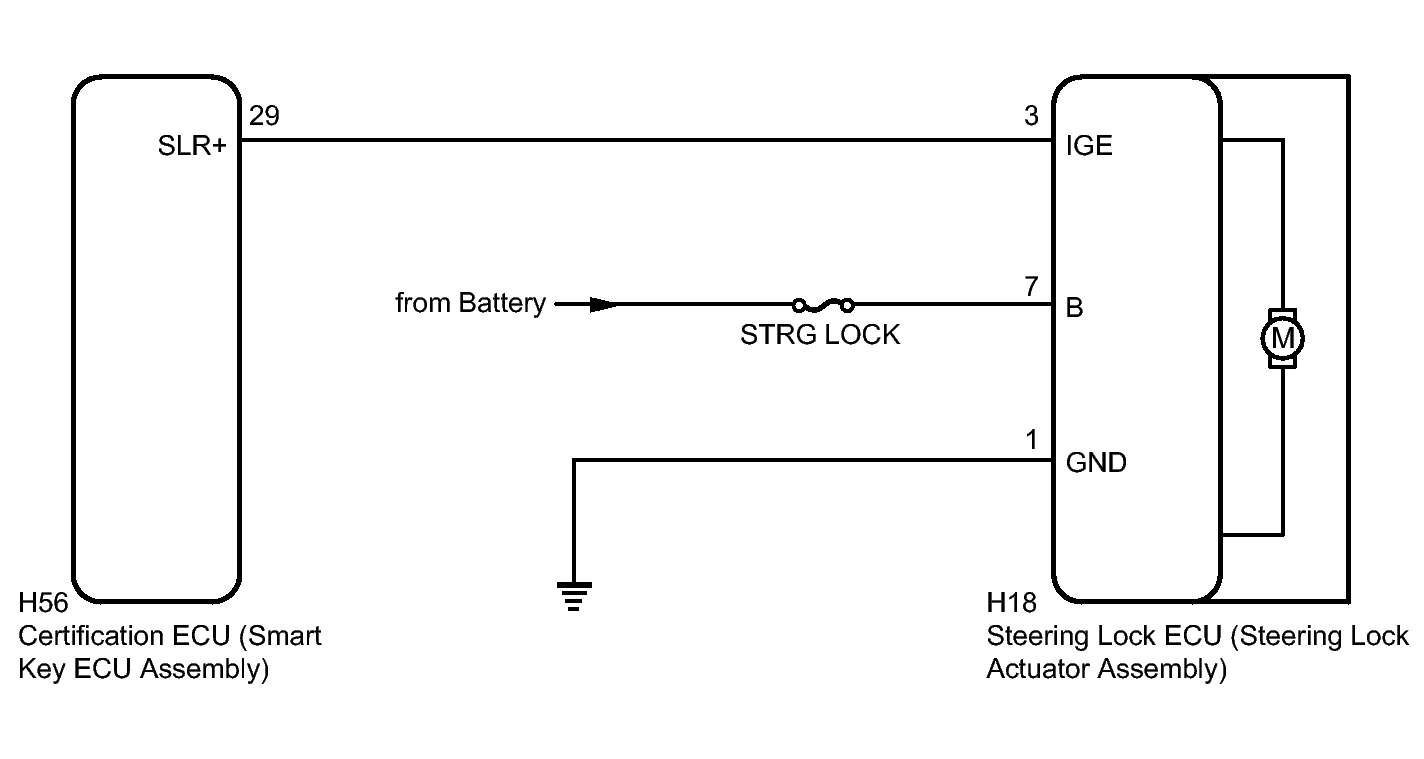

Fig 1: Steering Lock Actuator Assembly Wiring Diagram

GTY399623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
