DTC B1794: Open in Occupant Classification ECU Battery Positive Line [08/2013 - ]: Wiring Diagram

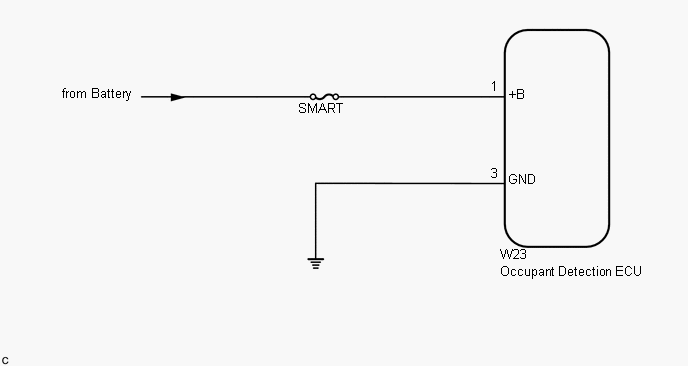

Fig 1: Occupant Classification ECU Battery Circuit Wiring Diagram
GTY395851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
