System Diagram [08/2013 - ]

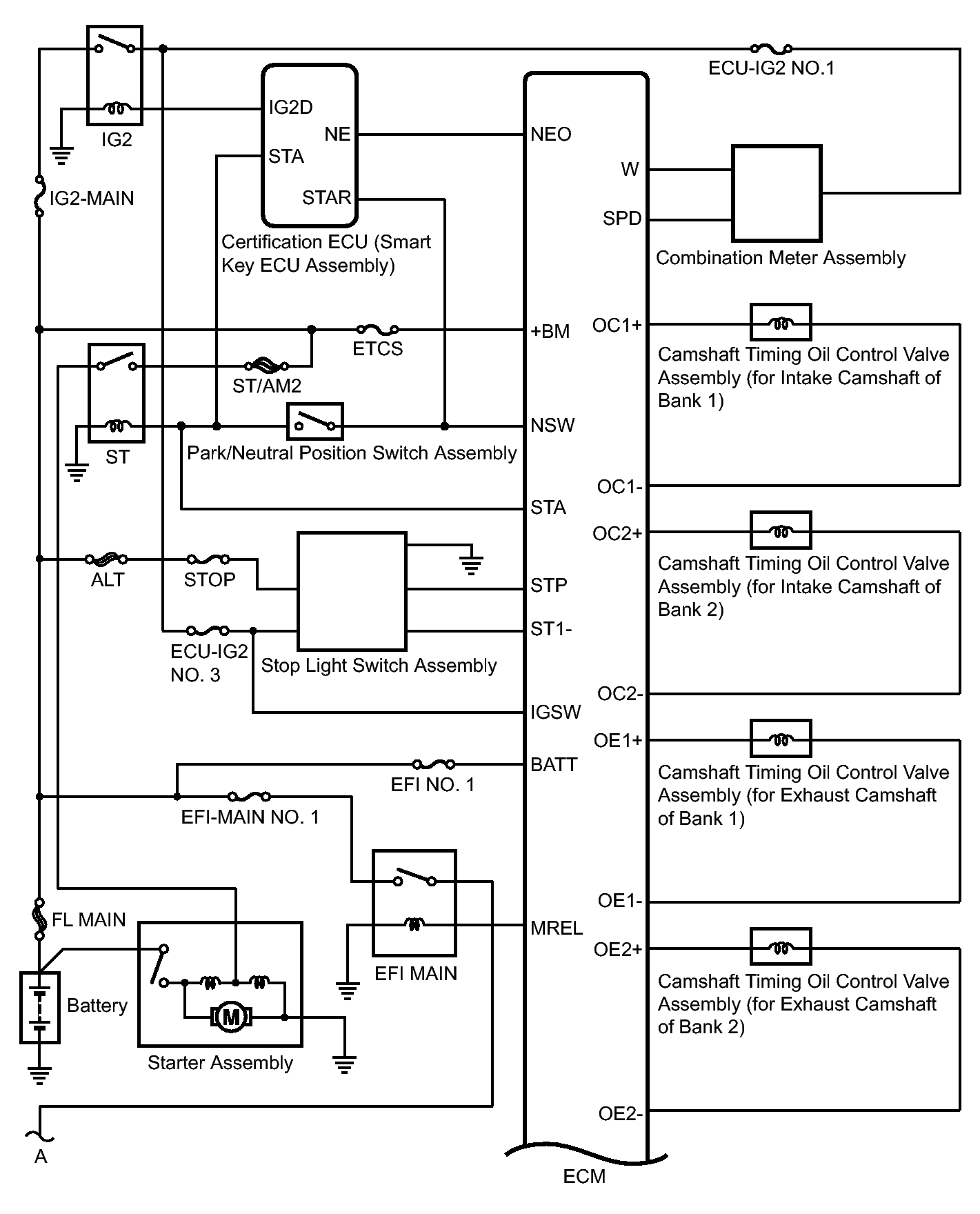

Fig 1: SFI System Wiring Diagram (1 Of 5)
GTY411933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

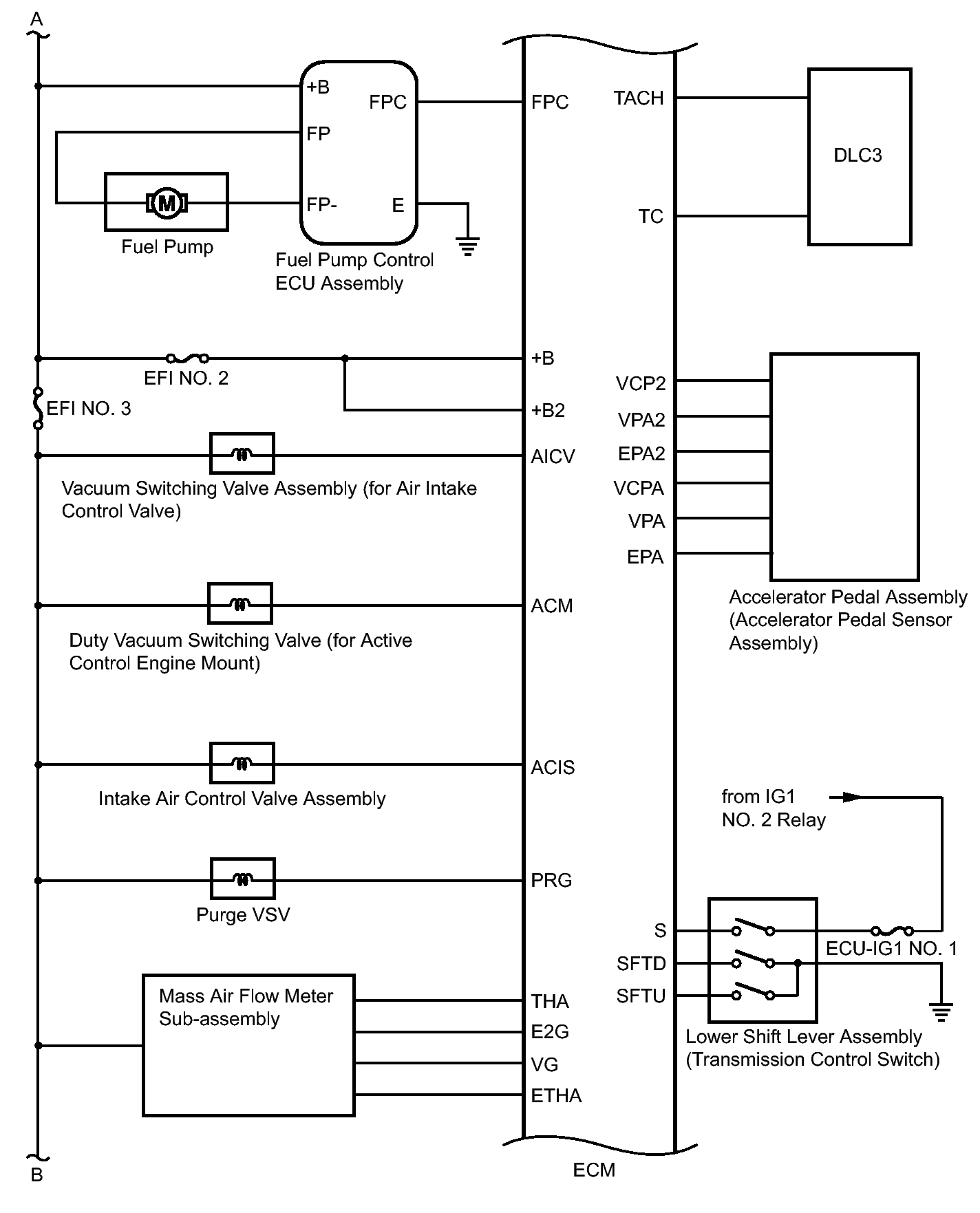

Fig 2: SFI System Wiring Diagram (2 Of 5)
GTY396654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

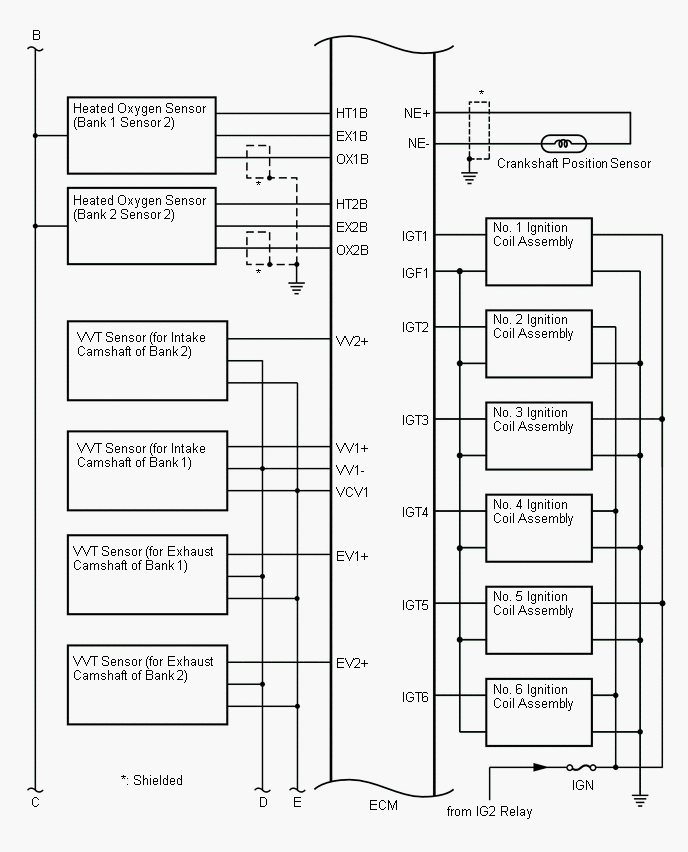

Fig 3: SFI System Wiring Diagram (3 Of 5)
GTY403332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

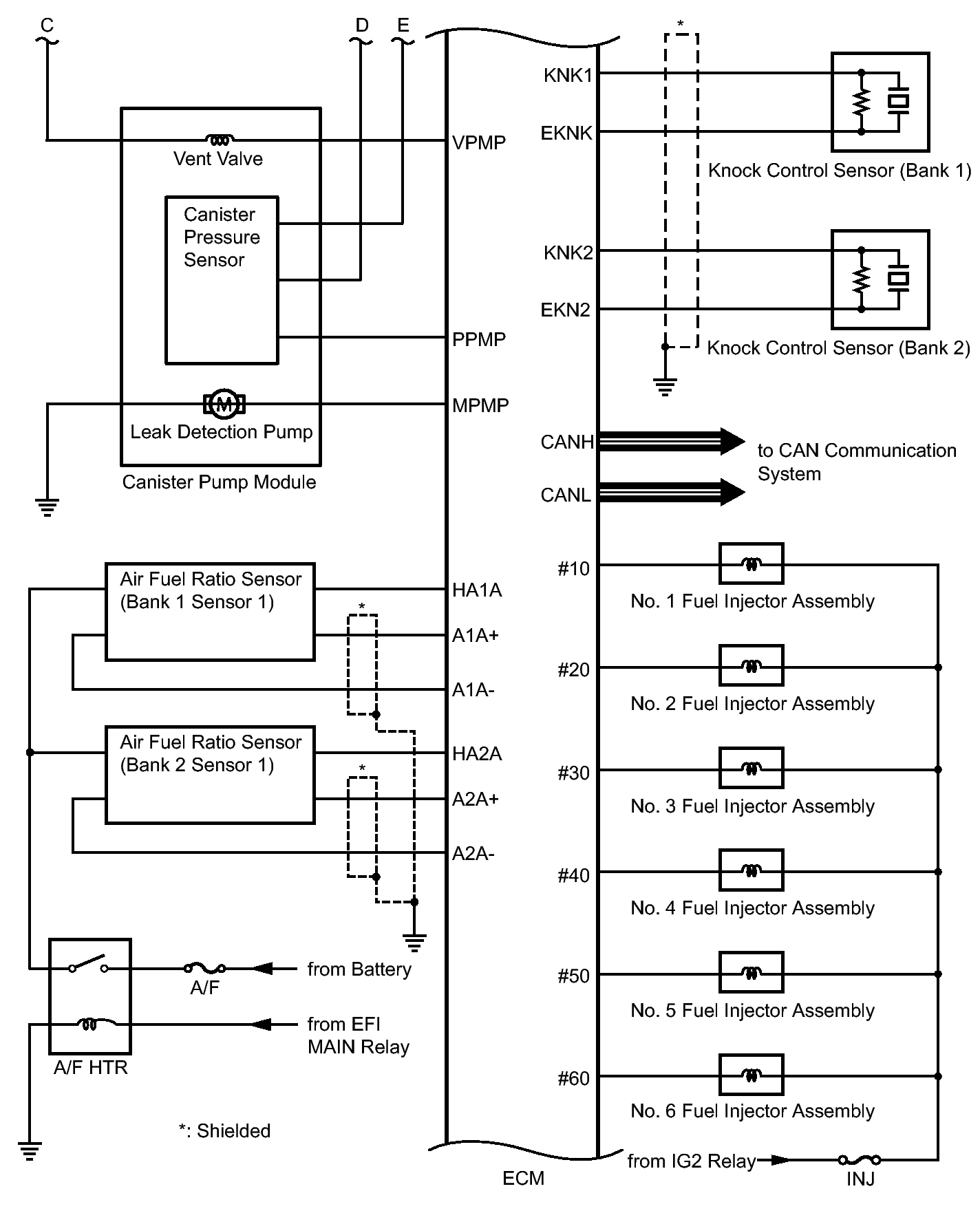

Fig 4: SFI System Wiring Diagram (4 Of 5)
GTY404740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

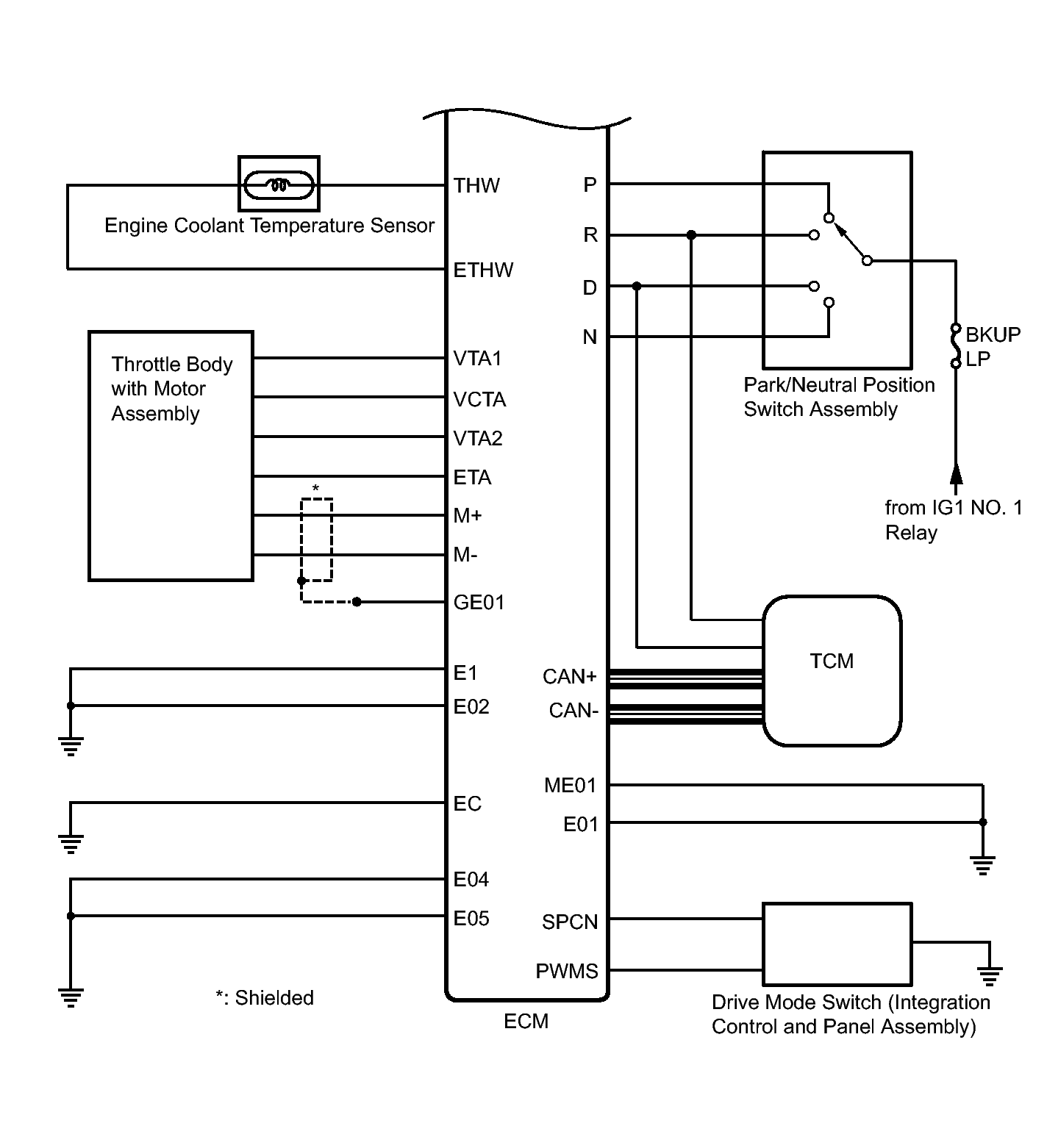

Fig 5: SFI System Wiring Diagram (5 Of 5)
GTY409858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
