Installation [08/2013 - ]

INSTALL NO. 1 ECM BRACKET
1. Install the No. 1 ECM bracket with the nut.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
2. Connect the 2 wire harness clamps.
3. Install the nut.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
INSTALL ECM
1. Install the No. 2 ECM bracket to the ECM with the 2 screws.
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
2. Temporarily install the screw (B).

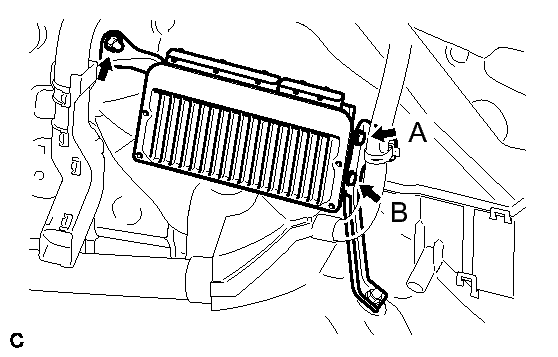

  Fig 1: Identifying ECM Screws, Nut And Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the ECM with the nut.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
4. Install the screw (A).
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
5. Tighten the screw (B).
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
6. Connect the 2 ECM connectors and lower the 2 levers.
  NOTE:
  - When connecting the connectors, make sure that dirt, water or other foreign matter does not become stuck between the connectors and other part.
  - Make sure that the 2 levers are securely locked.
INSTALL BATTERY . Refer to INSTALLATION [08/2013 - ] - Step 55
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION [08/2013 - ] - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .
PERFORM INITIALIZATION
Refer to PRECAUTION [08/2013 - ] .
