Parts Location [08/2013 - ]: Illustration

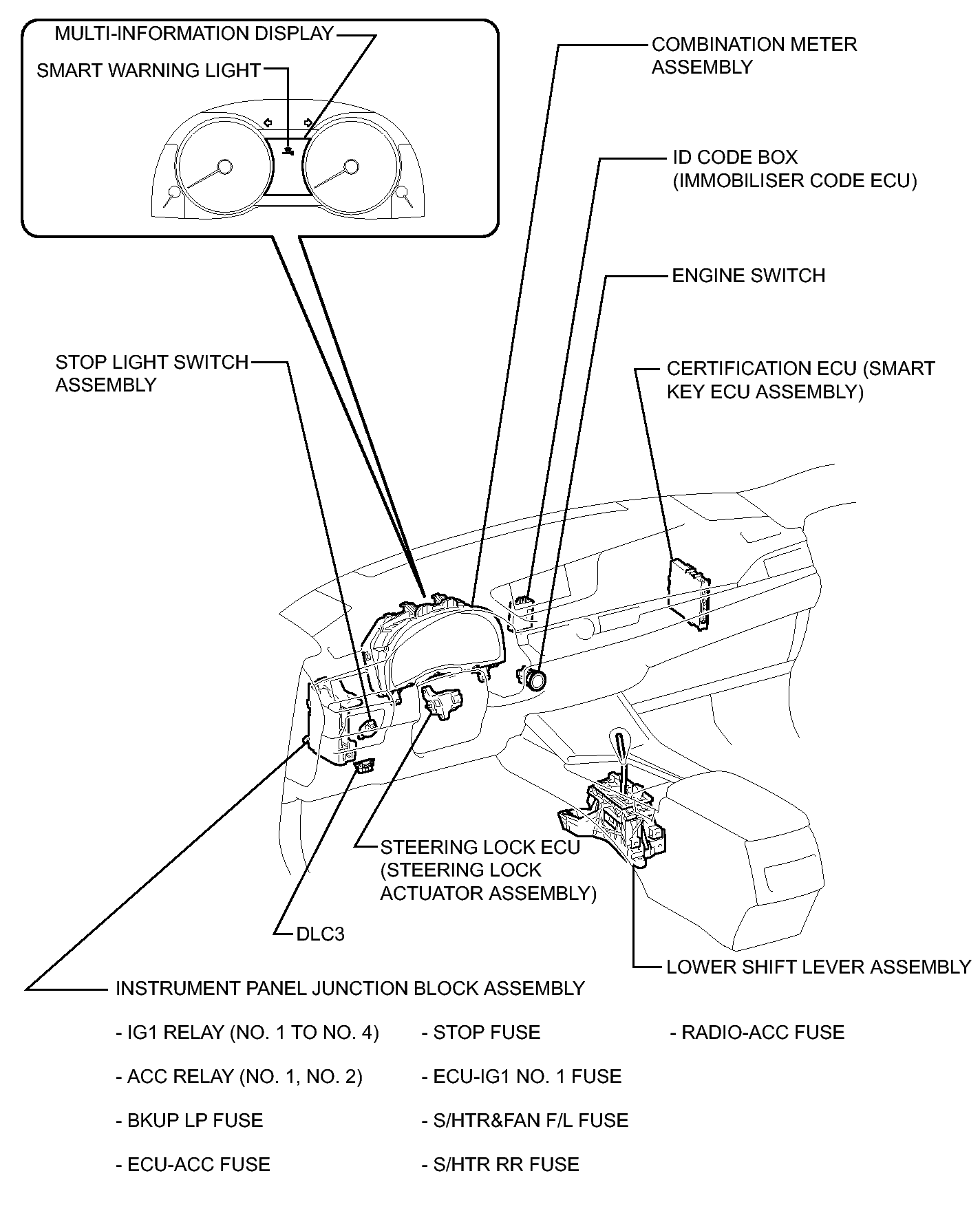

Fig 1: Identifying Smart Access System With Push-Button Start (for Start Function) Components Location (1 Of 3)
GTY399199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Smart Access System With Push-Button Start (for Start Function) Components Location (2 Of 3)
GTY405918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

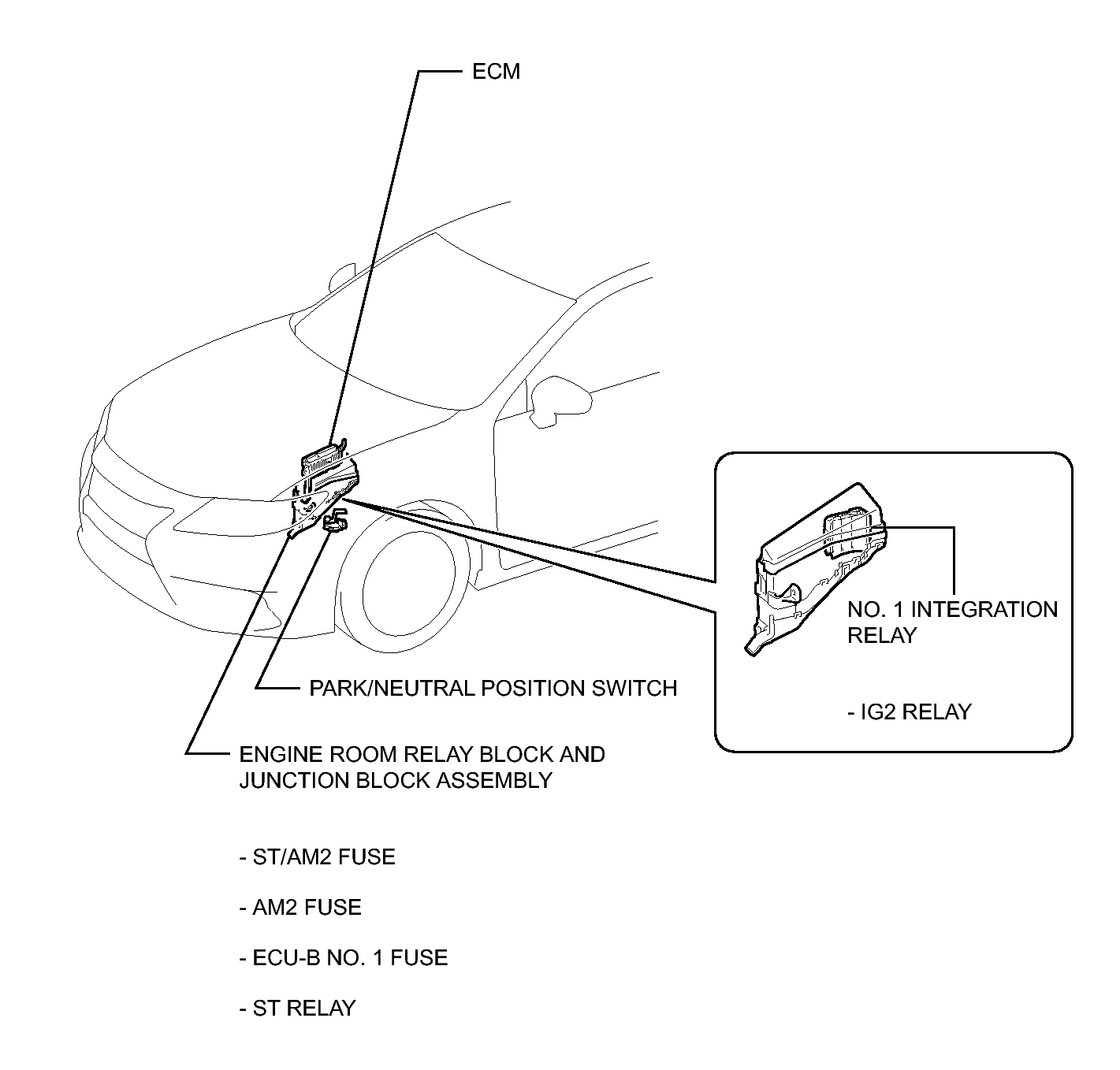

Fig 1: Identifying Smart Access System With Push-Button Start (for Start Function) Components Location (3 Of 3)
GTY462687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
