Visual Mute Signal Circuit between Navigation Receiver Assembly and Multi-display [08/2013 - ]: Wiring Diagram

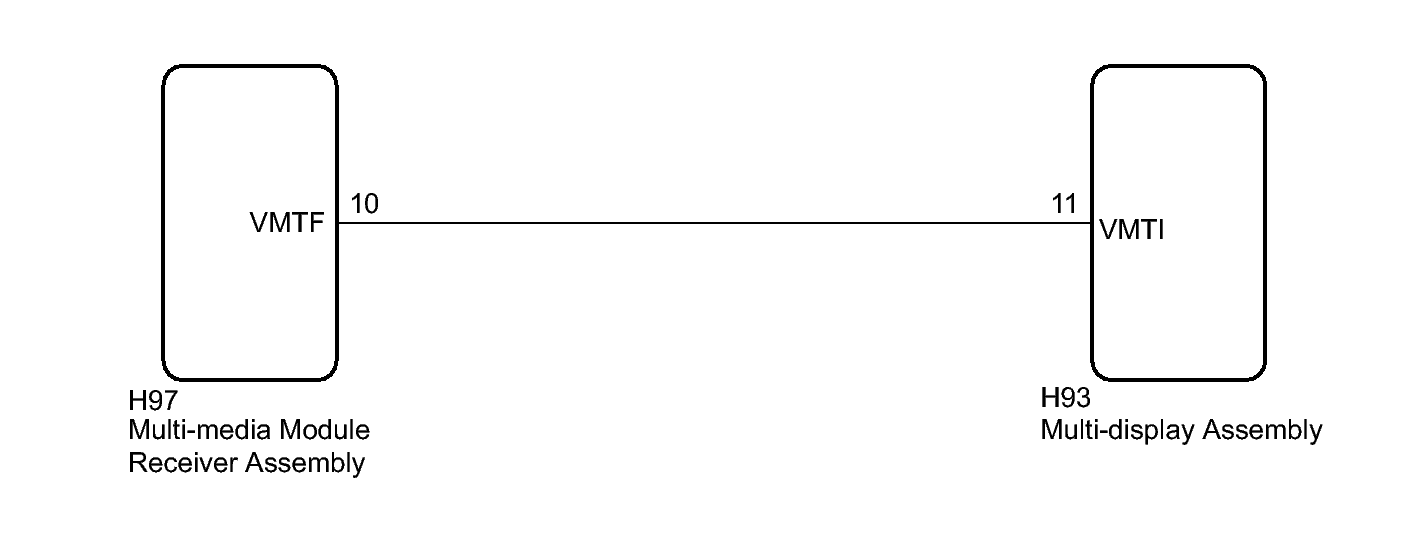

Fig 1: Visual Mute Signal Circuit Wiring Diagram
GTY399656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
