Navigation Receiver Assembly Power Source Circuit [08/2013 - ]: Wiring Diagram

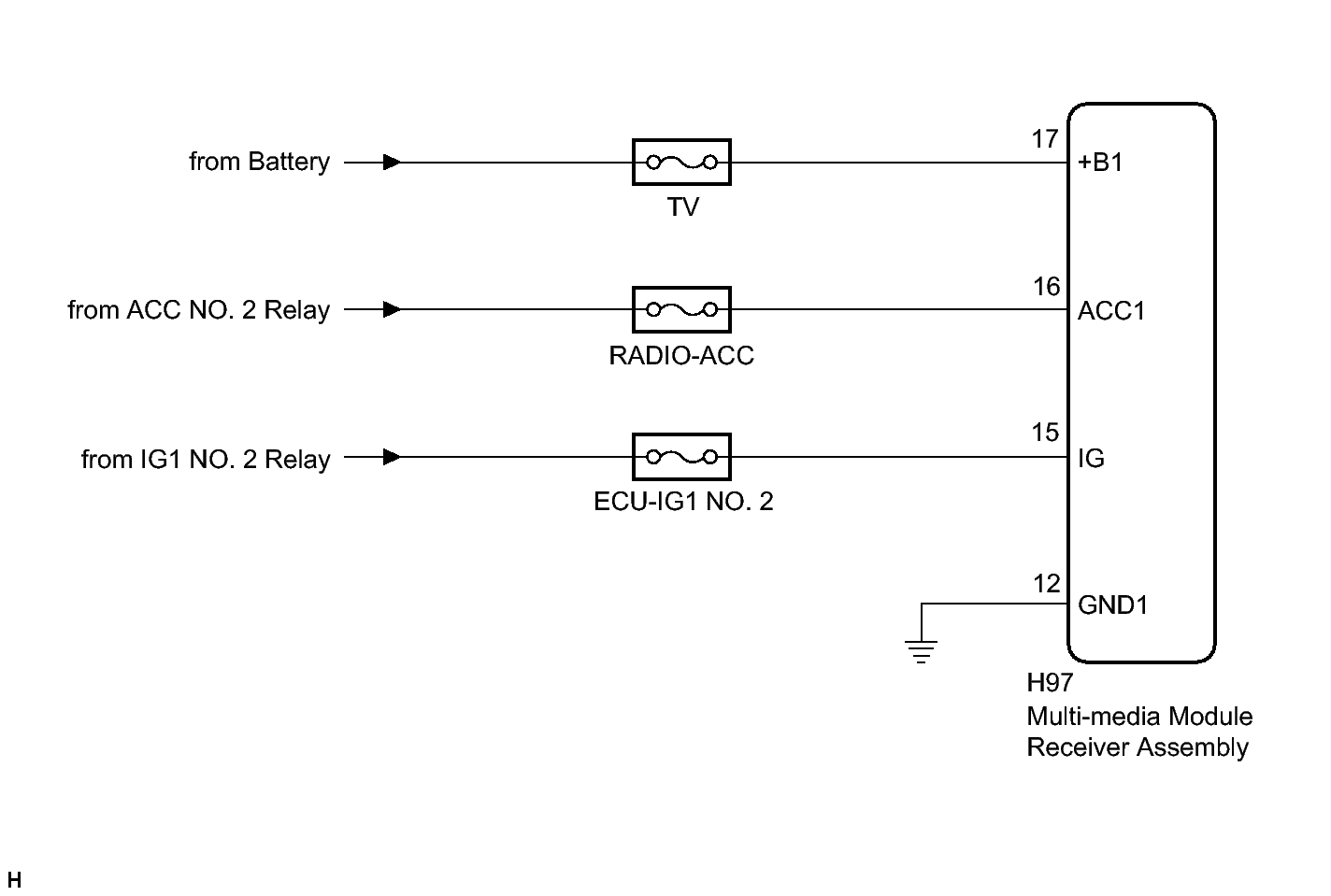

Fig 1: Radio Receiver Power Source Circuit Wiring Diagram

GTY413067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
