Installation [12/2013 - ]

  1. INSTALL STEERING PAD SWITCH ASSEMBLY
    1. Engage the 2 claws, 2 pins and 2 guides to install the steering pad switch assembly.

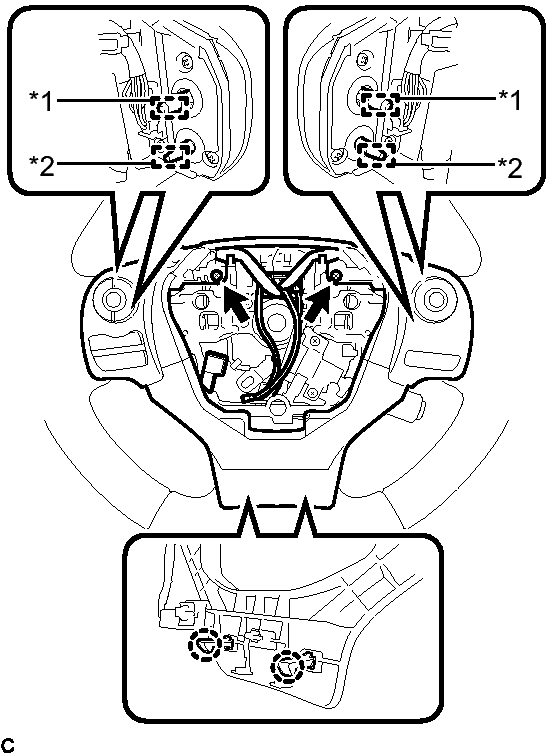

      Fig 1: Engaging the claws, pins and guides to install the steering pad switch assembly
      GTY463069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Pin
      *2 Guide
    2. Install the 2 screws.

      Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

    3. Install the clamp.

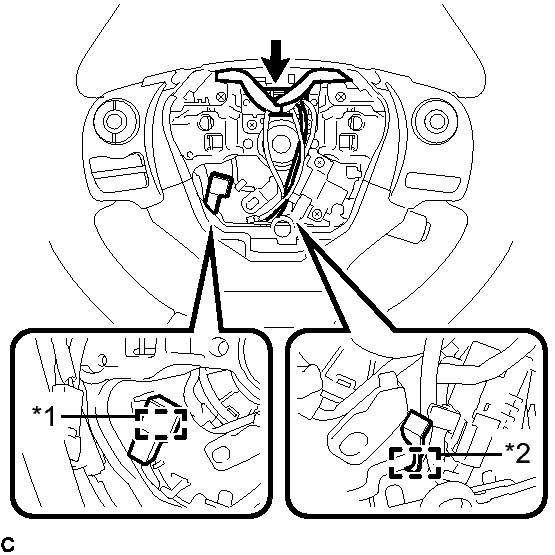

      Fig 2: Identifying Steering Pad Switch Clapmp And Guide
      GTY462442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Clamp
      *2 Guide
    4. Pass the wire harness through the guide.
    5. Connect the steering pad switch connector to the spiral cable.
    6. Pass the wire harness over the 2 guides.
      Fig 3: Passing The Wire Harness Over The Guides
      GTY461207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [12/2013 - ]
