Components [12/2013 - ]: Illustration

Fig 1: Heated Steering Wheel Controller Replacement Parts With Torque Specifications (1 Of 2)
GTY465074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 4)
GTY355526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

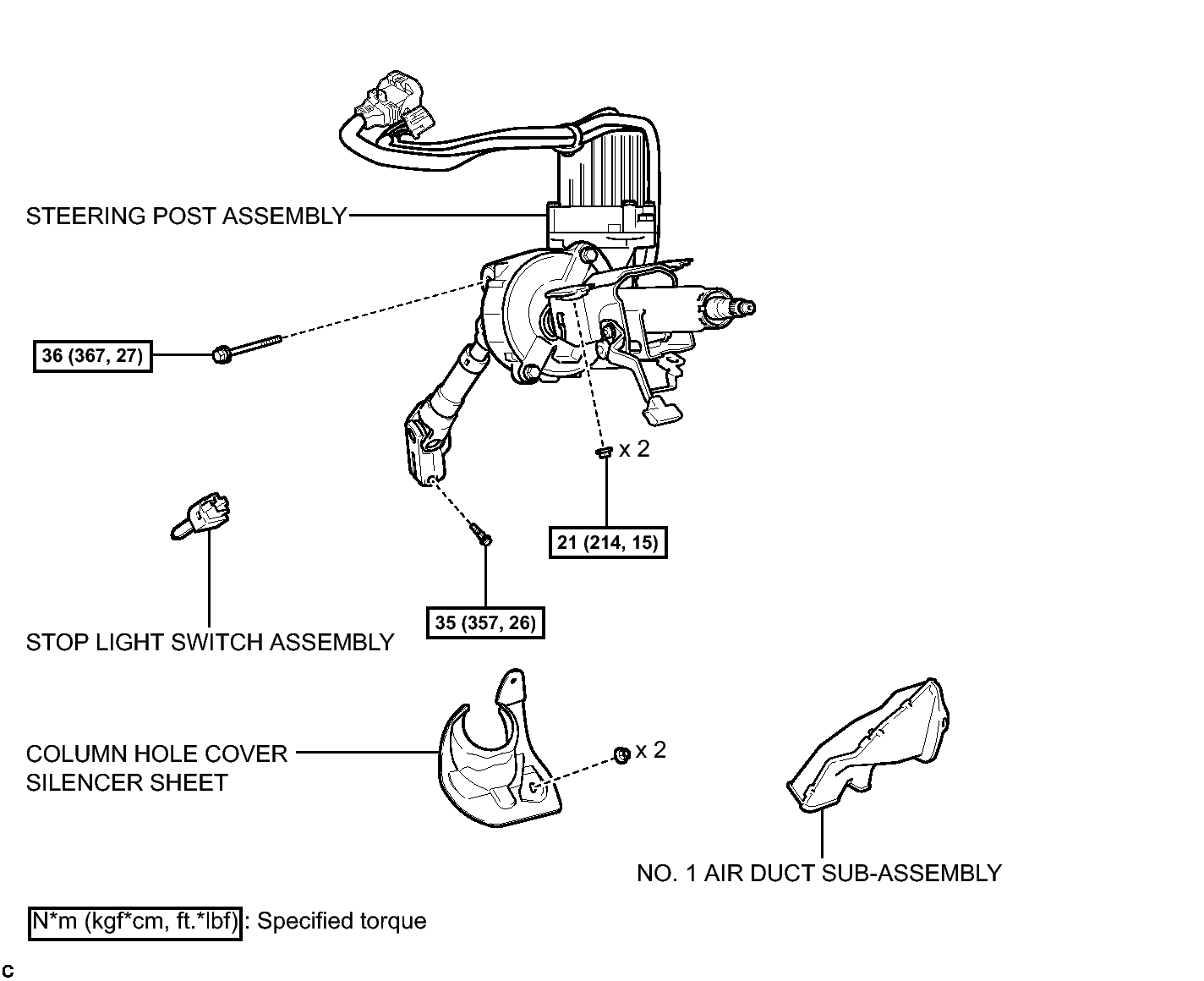

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 4)
GTY461132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (4 Of 4)
GTY349511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
