Display Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [12/2013 - ]: Wiring Diagram

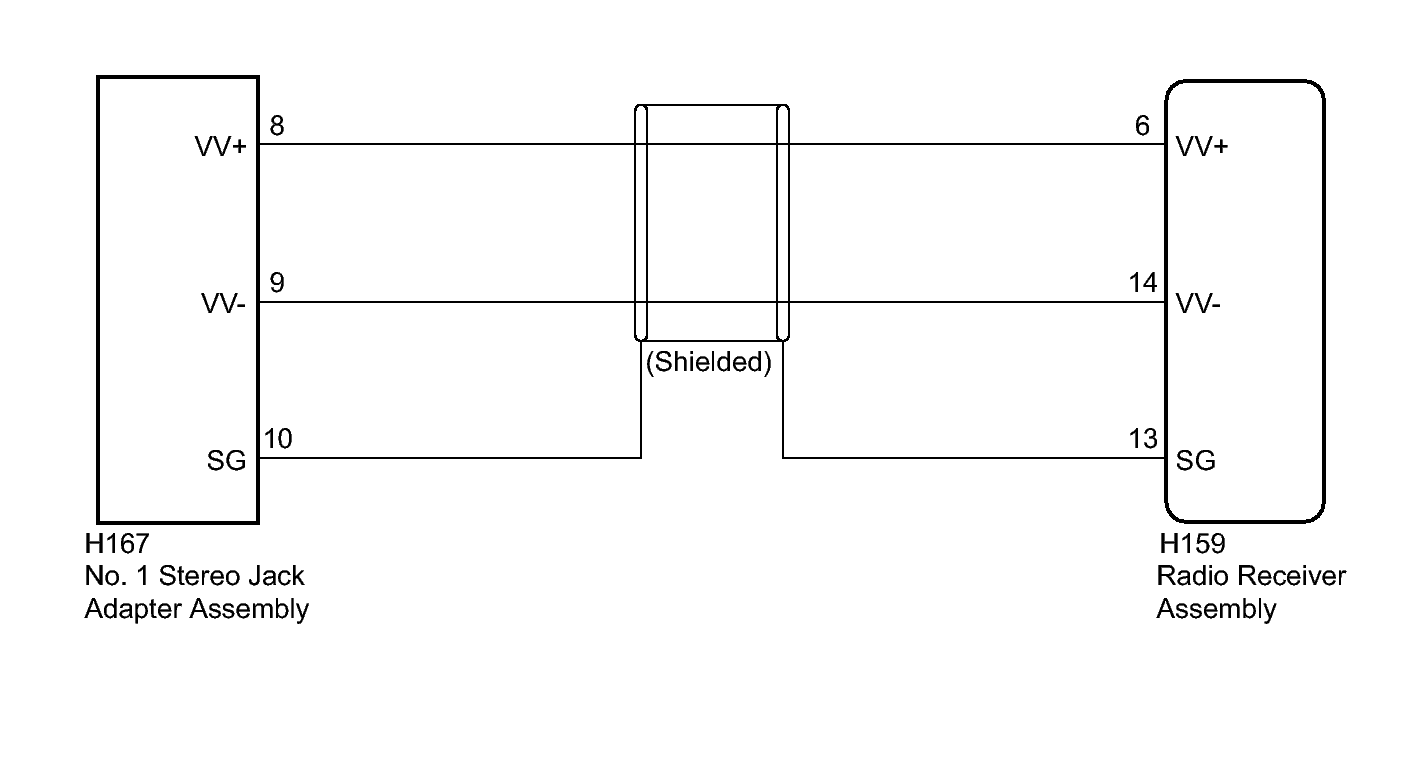

Fig 1: Display Signal Circuit Diagram

GTY457940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
