DCM Data Signal Circuit between Navigation ECU and DCM [12/2013 - ]: Wiring Diagram

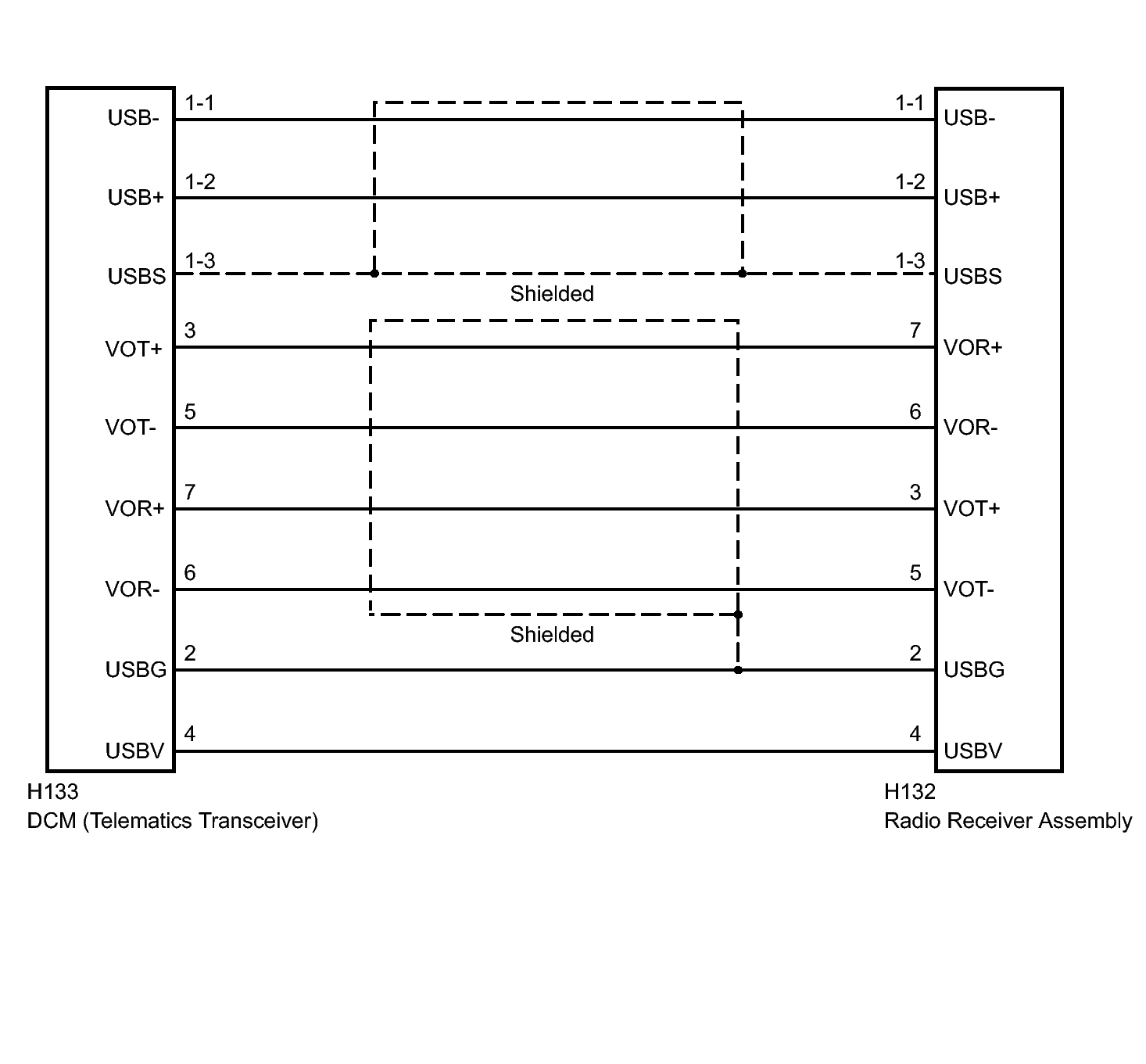

Fig 1: Identifying DCM Data Signal Circuit Diagram

GTY466656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
