Radio Receiver Assembly Communication Stop Mode [12/2013 - ]: Wiring Diagram

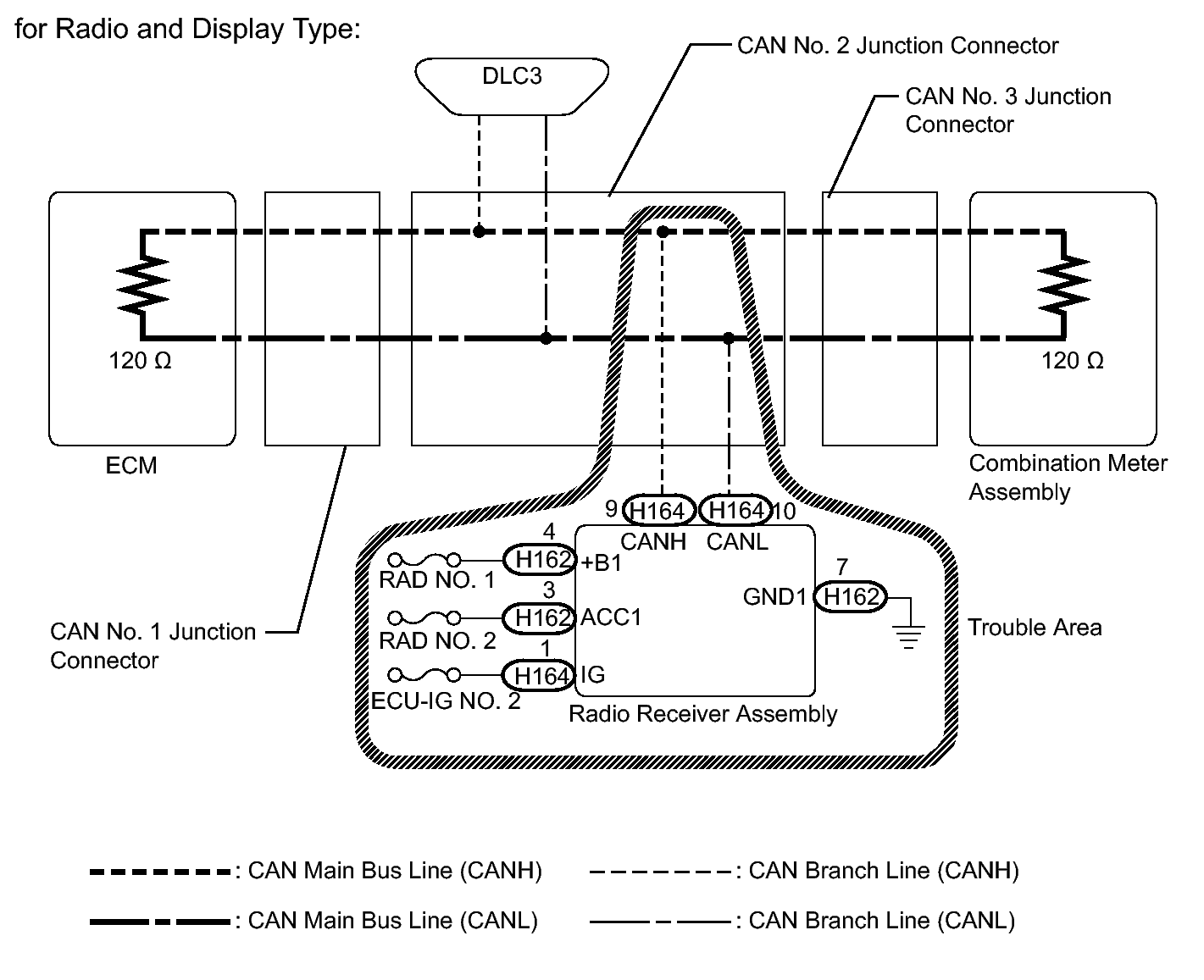

Fig 1: Radio Receiver ECU Circuit Diagram (1 Of 2)
GTY461961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

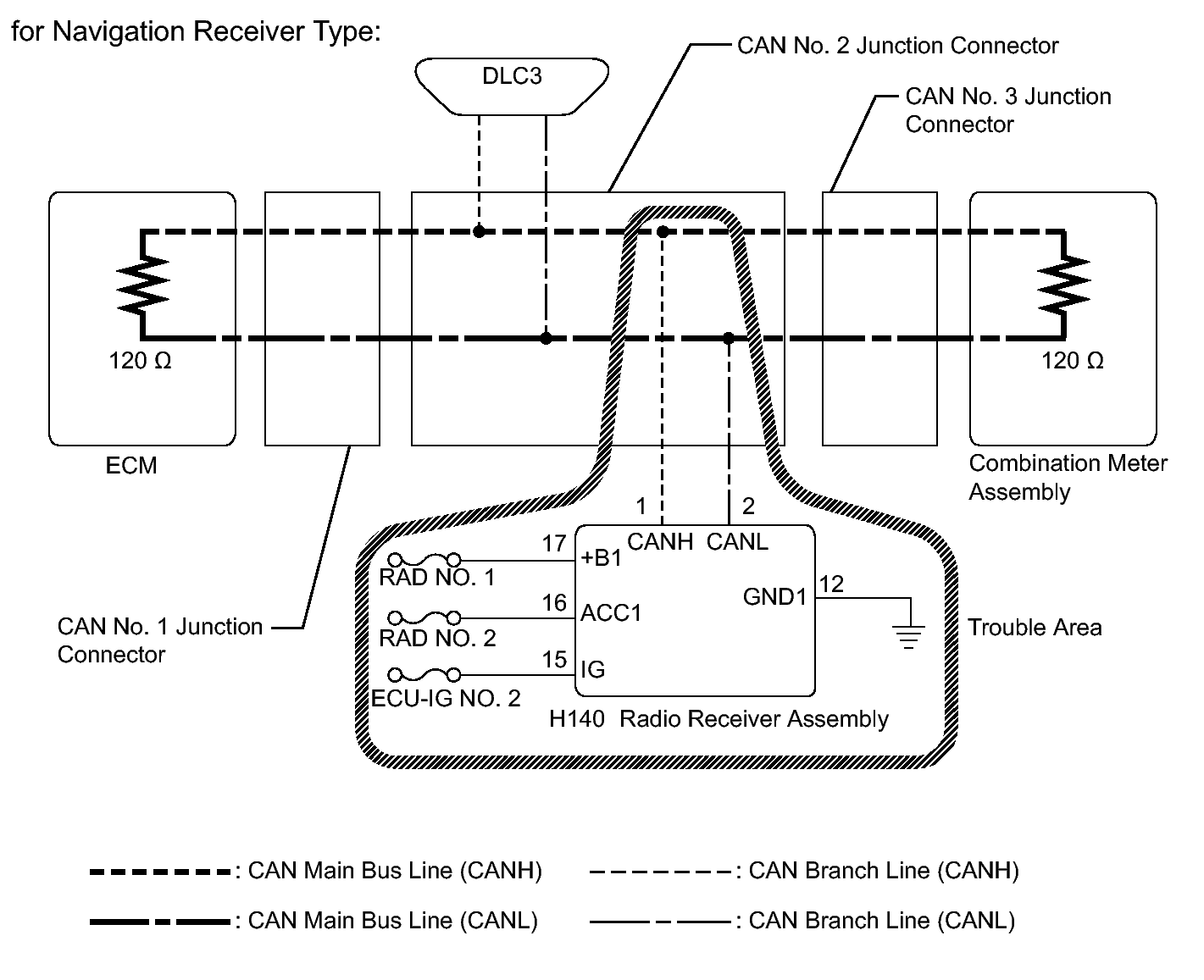

Fig 2: Radio Receiver ECU Circuit Diagram (2 Of 2)
GTY469976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
