DTC P0401: Exhaust Gas Recirculation Flow Insufficient Detected: Procedure

  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO P0401)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    5. Read the DTC.

      Result

      Result Proceed to
      DTC P0401 is output A
      DTC P0401 and other DTCs are output B

      HINT:

      If any DTCs other than P0401 are output, troubleshoot those DTCs first.

    B → See step   12

    A: Go to next step

  2. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Put the engine in inspection mode. Refer to INSPECTION MODE PROCEDURE [03/2012 - ] .
    5. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or more.

      HINT:

      The A/C switch and all accessory switches should be off.

    6. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.
    7. Check the engine idling condition and MAP values in the Data List while performing the Active Test.

      HINT:

      • Do not leave the EGR valve open for 10 seconds or more during Active Test.
      • Be sure to return the EGR valve to step 0 when Active Test is completed.
      • Do not open the EGR valve 30 steps or more during the Active Test.

      OK

      MAP and idling condition change in response to EGR step position as follows.

      Standard

      - EGR Step Position (Active Test)
      0 Steps 0 to 30 Steps
      Idling condition Steady idling Idling changes from steady to rough idling or engine stall
      MAP
      (Data List)
      - MAP value is at least +10 kPa (75 mmHg) higher than when EGR valve is fully closed

    NG → See step   4

    OK: Go to next step

  3. INSPECT EGR VALVE ASSEMBLY
    1. Check if the EGR valve are clogged with deposits.
    2. Check if the EGR valve is closed.

      OK

      EGR valve is closed and no deposits.

      Result

      Result Proceed to
      NG A
      OK B

    B → See step   5

    A: Go to next step

  4. REPLACE EGR VALVE ASSEMBLY
    1. Replace the EGR valve assembly. Refer to REMOVAL [03/2012 - ] .

    NEXT: Go to next step

  5. CHECK FOR DEPOSIT (EGR VALVE ASSEMBLY TO INTAKE PORTS)

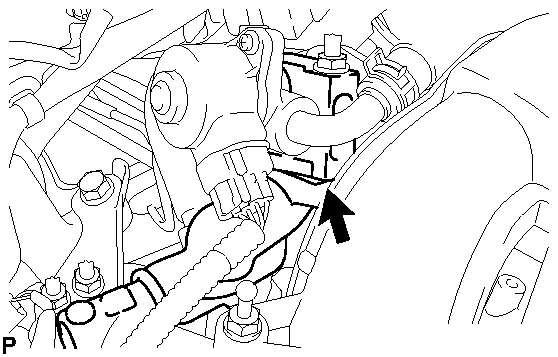

    GTY306771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check for exhaust leaks at each connection point.
    2. Check for cracks, damage, and blockage of the pipes between the intake manifold converter and the EGR valve assembly.
    3. This check may require the removal of components.
    4. Check if there is a build-up of deposits in the EGR valve or pipes.

      OK

      No deposits

    NG → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    OK: Go to next step

  6. CHECK FOR DEPOSIT (EXHAUST MANIFOLD CONVERTER TO EGR VALVE ASSEMBLY)

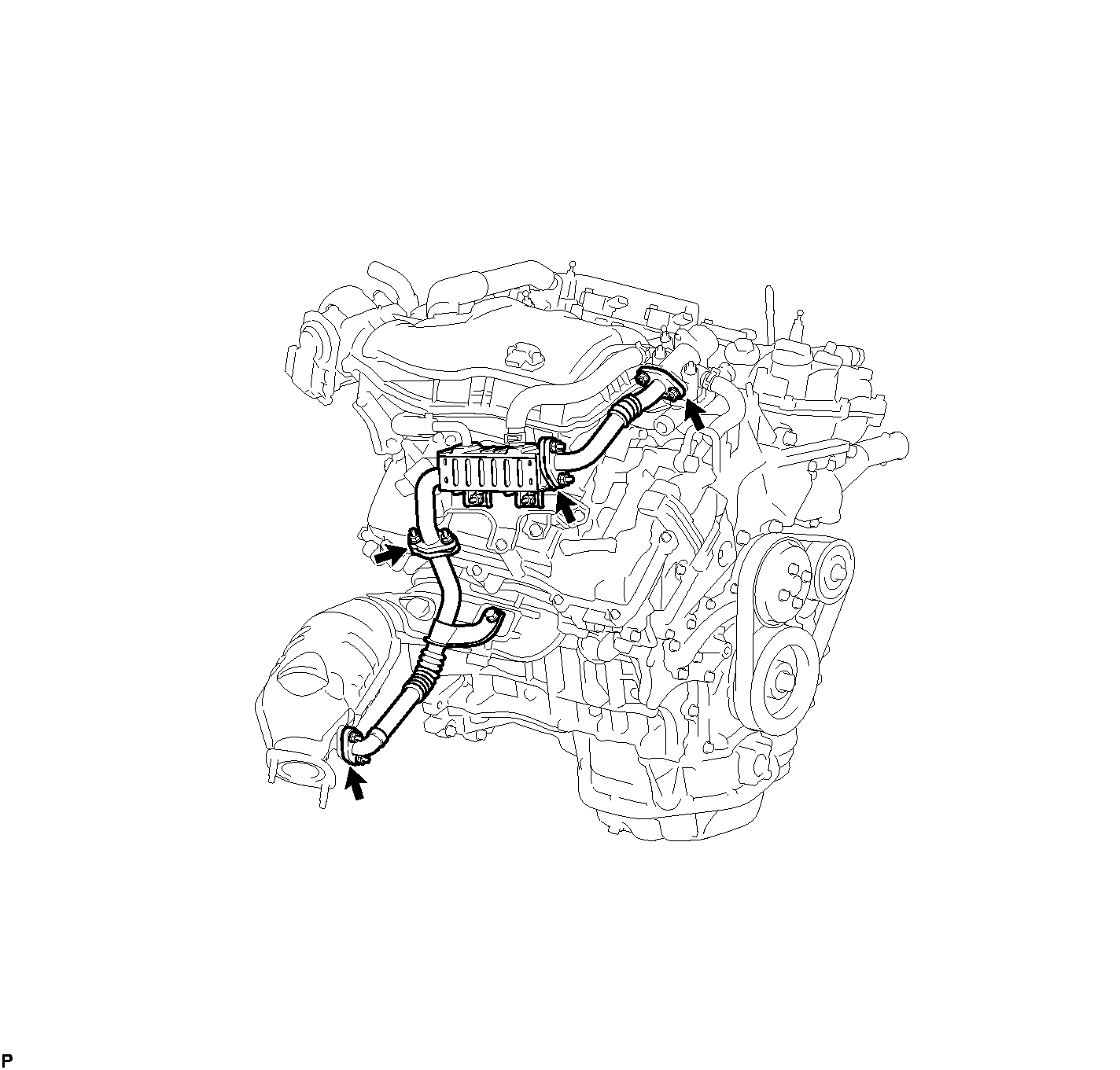

    GTY352185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check for exhaust leaks at each connection point.
    2. Check for cracks, damage, and blockage of the pipes between the exhaust manifold converter and the EGR valve assembly.
    3. This check may require the removal of components.
    4. Check if there is a build-up of deposits in the EGR valve or pipes.

      OK

      No deposits

      HINT:

      • This check may require the removal of components.
      • Check for blockage of the EGR valve assembly.

    NG → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    OK: Go to next step

  7. INSPECT EGR COOLER ASSEMBLY
    1. Check for blockage of the EGR cooler assembly.

    NG → See step   13

    OK: Go to next step

  8. READ VALUE USING TECHSTREAM (MANIFOLD ABSOLUTE PRESSURE SENSOR)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine and ECT / Data List / MAP.
    5. Read the MAP value.

      Standard

      Switch Condition Techstream Display
      Power switch on (IG) 80 to 110 kPa (600 to 825 mmHg)
    6. Put the engine in inspection mode. Refer to INSPECTION MODE PROCEDURE [03/2012 - ] .
    7. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or more.
    8. Enter the following menus: Powertrain / Engine and ECT / Data List / MAP.
    9. Read the MAP value at idling the engine with the A/C switch and all accessory switches should be off and shift lever in P or N.

      Standard

      Engine Condition Techstream Display
      Idling 28 to 48 kPa (210 to 360 mmHg)

      Result

      Result Proceed to
      NG A
      OK B

    B → See step   11

    A: Go to next step

  9. CHECK INTAKE SYSTEM
    1. Check the intake system for vacuum leaks. Refer to ON-VEHICLE INSPECTION [03/2012 - ] - Step 1 .

      OK

      No leaks in intake system.

    NG → REPAIR OR REPLACE INTAKE SYSTEM

    OK: Go to next step

  10. REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR
    1. Replace the manifold absolute pressure sensor. Refer to REMOVAL [03/2012 - ] .

    NEXT: Go to next step

  11. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Clear the DTC. Refer to DTC CHECK/CLEAR [03/2012 - ] .
    5. Turn the power switch off and wait for 30 seconds.
    6. Turn the power switch on (IG) and turn the Techstream on.
    7. Put the engine in inspection mode. Refer to INSPECTION MODE PROCEDURE [03/2012 - ] .
    8. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or more.
    9. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
    10. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
    11. Input the DTC: P0401.
    12. Check the DTC judgment result.

      Result

      Techstream Display Description
      NORMAL
      • DTC judgment completed
      • System normal
      ABNORMAL
      • DTC judgment completed
      • System abnormal
      INCOMPLETE
      • DTC judgment not completed
      • You should perform driving pattern after confirming DTC enabling conditions
      N/A
      • Unable to perform DTC judgment
      • Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit

    NEXT → END

  12. GO TO DTC TABLE. Refer to  DIAGNOSTIC TROUBLE CODE TABLE [03/2012 - ]
  13. REPLACE EGR COOLER ASSEMBLY. Refer to  REMOVAL [03/2012 - ]
