Power Back Door: Notes — 2013 Lexus RX 450h 3.5L Eng VIN B Service Manual ~ LEMON Manuals

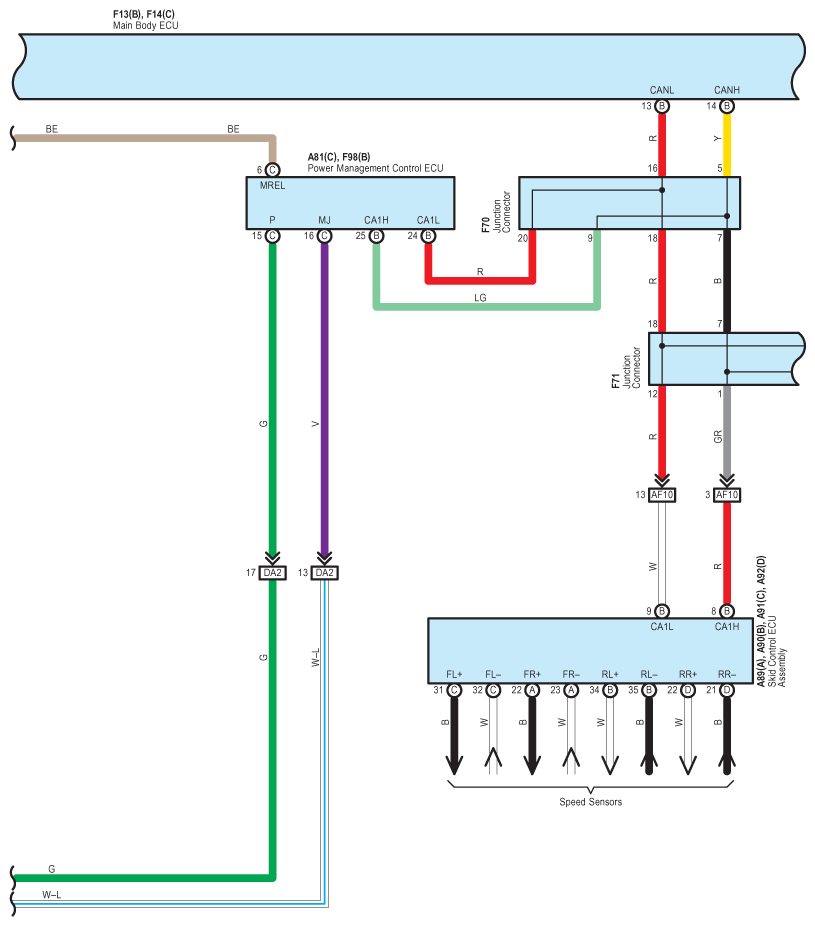

Fig 1: Power Back Door System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

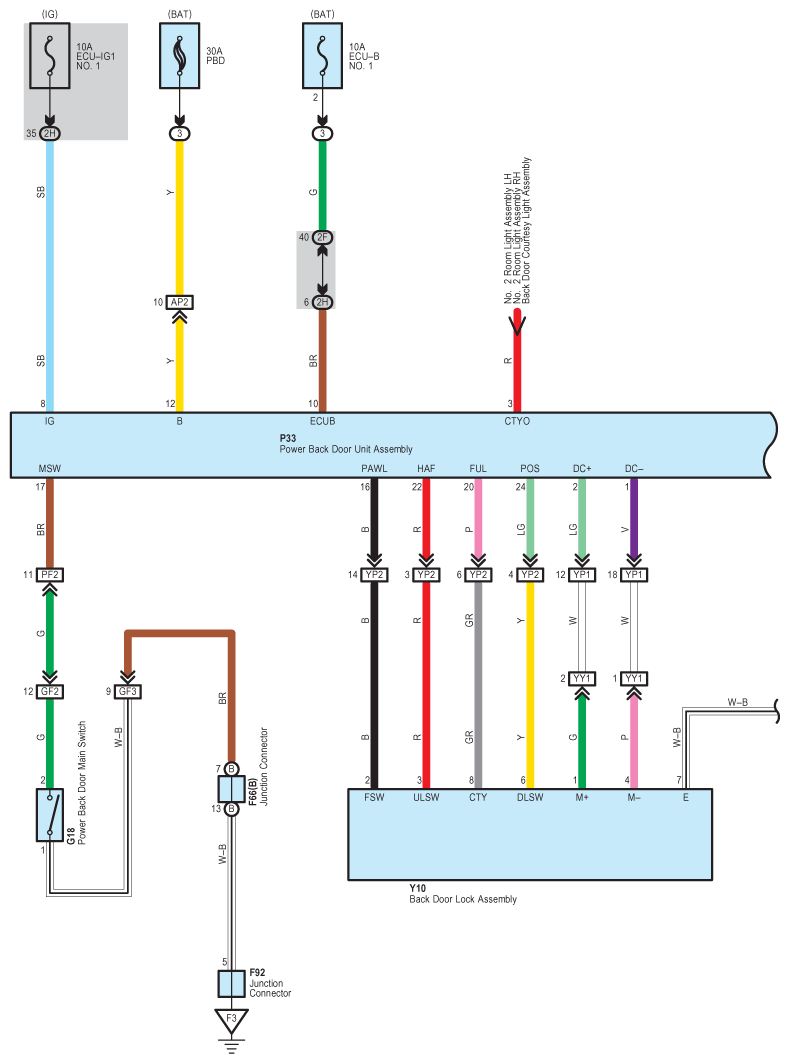

Fig 2: Power Back Door System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

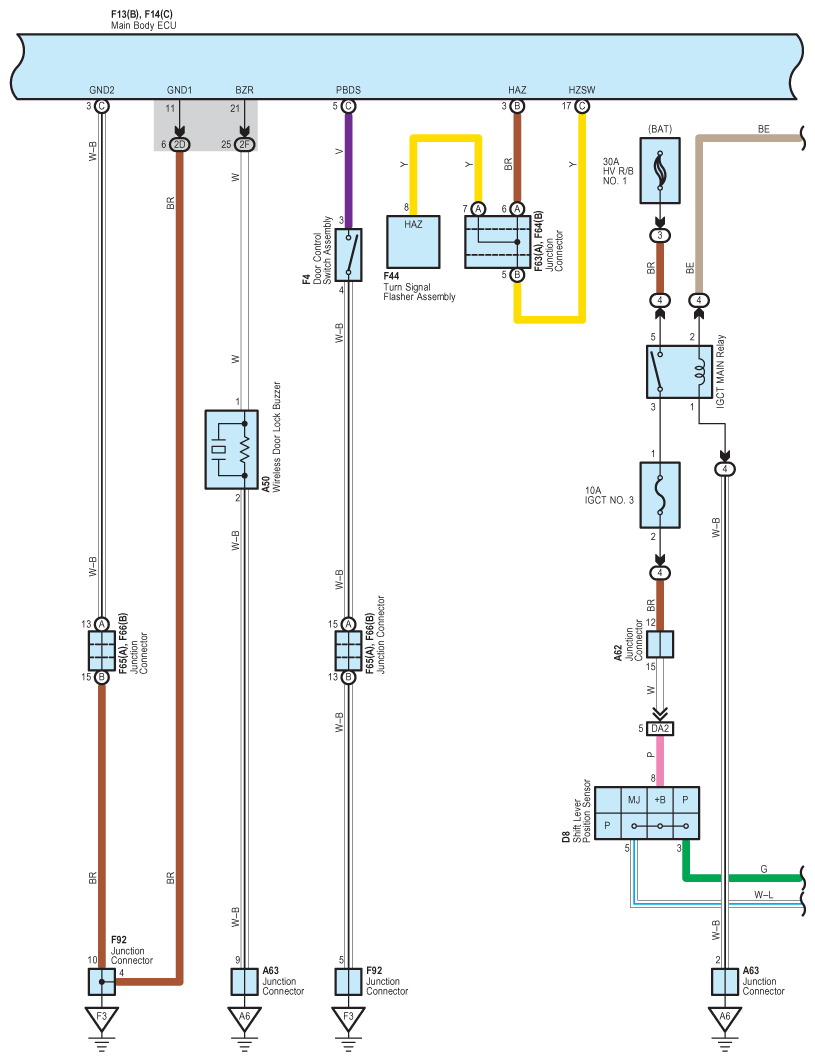

Fig 3: Power Back Door System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

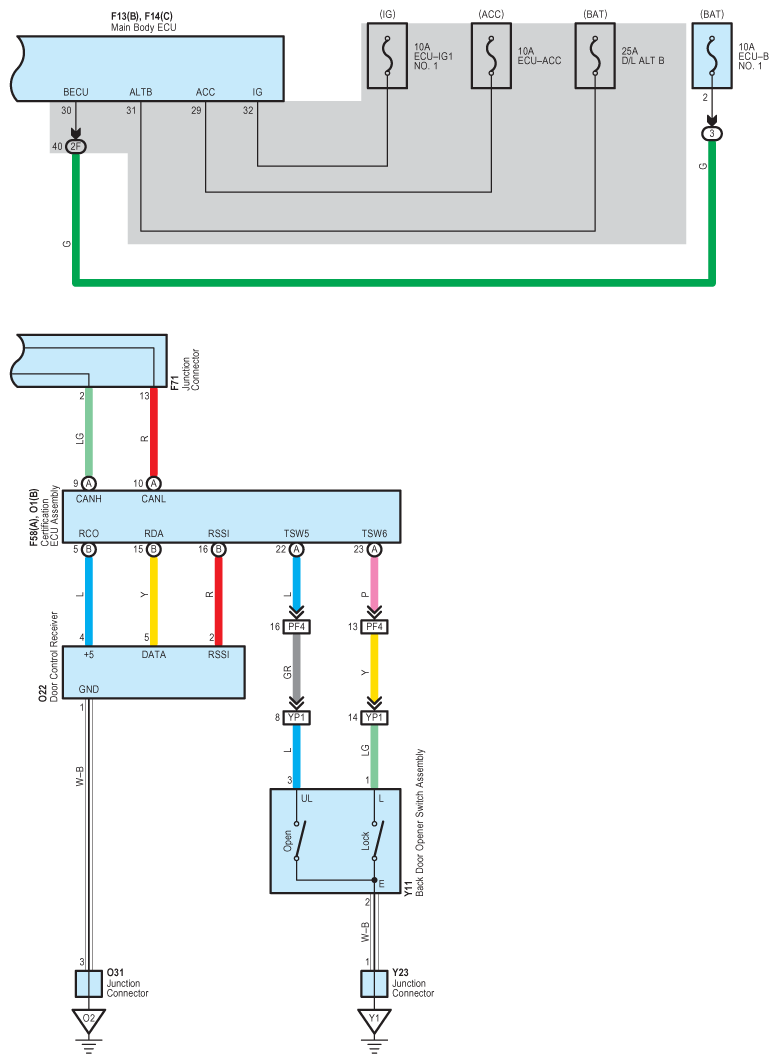

Fig 4: Power Back Door System Wiring Diagram (4 Of 5)

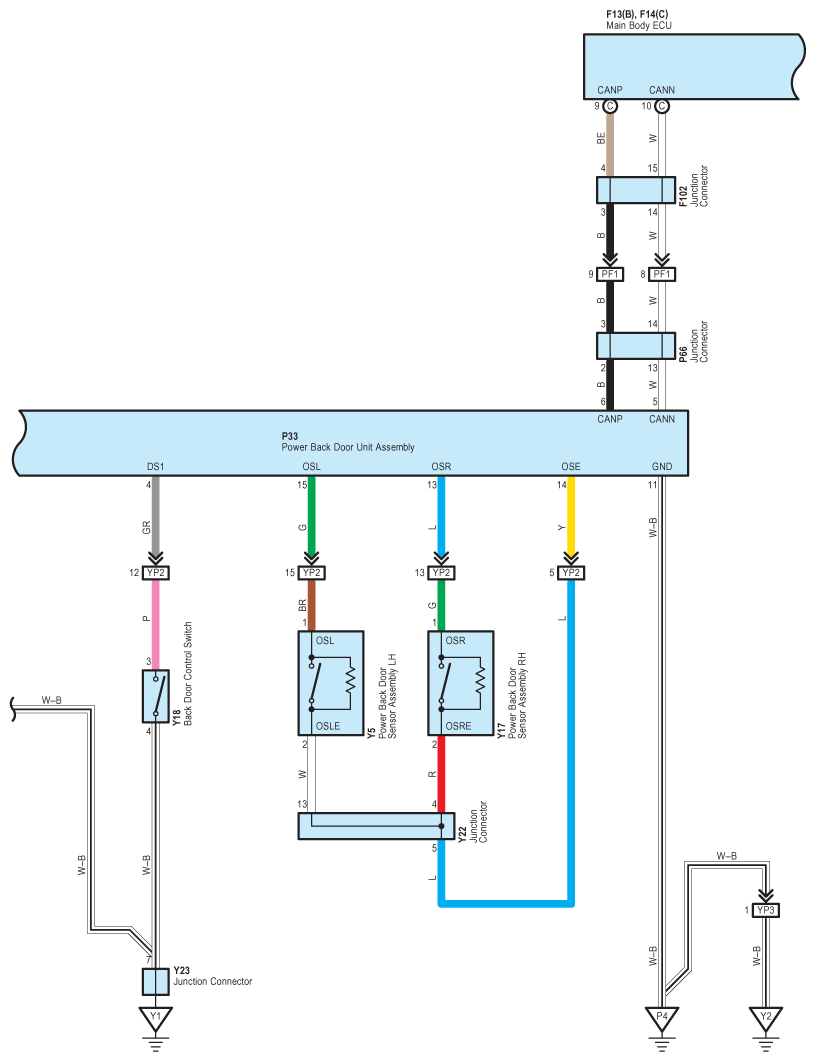

Fig 5: Power Back Door System Wiring Diagram (5 Of 5)
