Mirror Heater and Rear Window Defogger: Notes

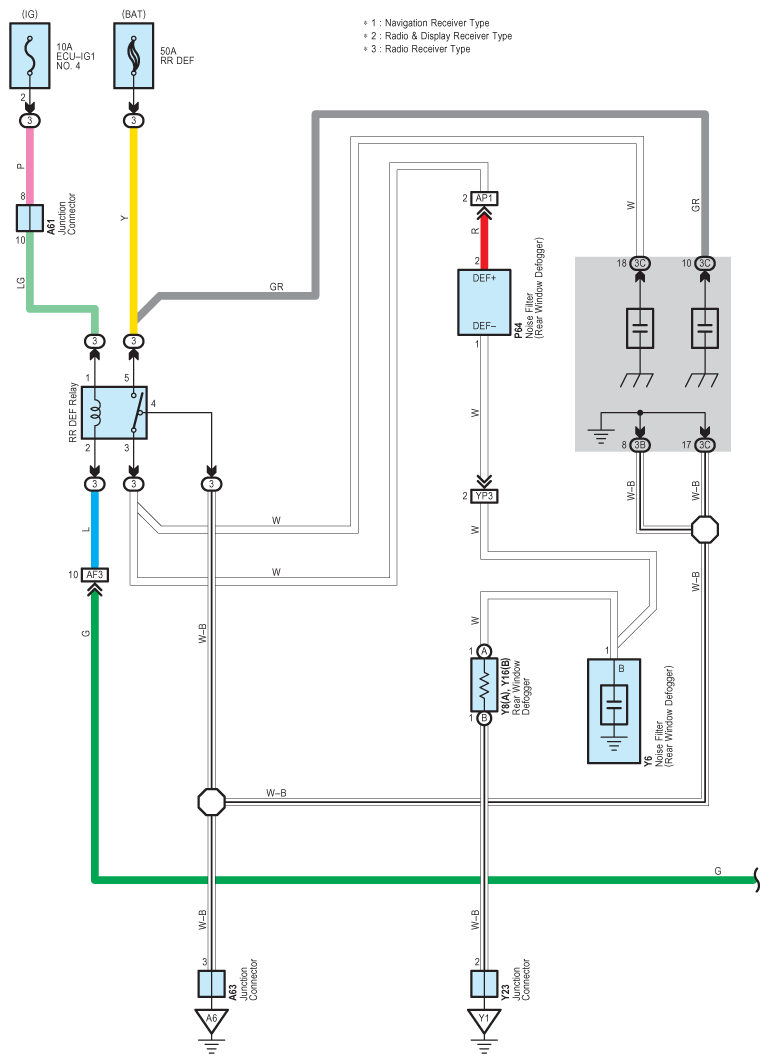

Fig 1: Mirror Heater And Rear Window Defogger System Wiring Diagram (1 Of 5)
G09127882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

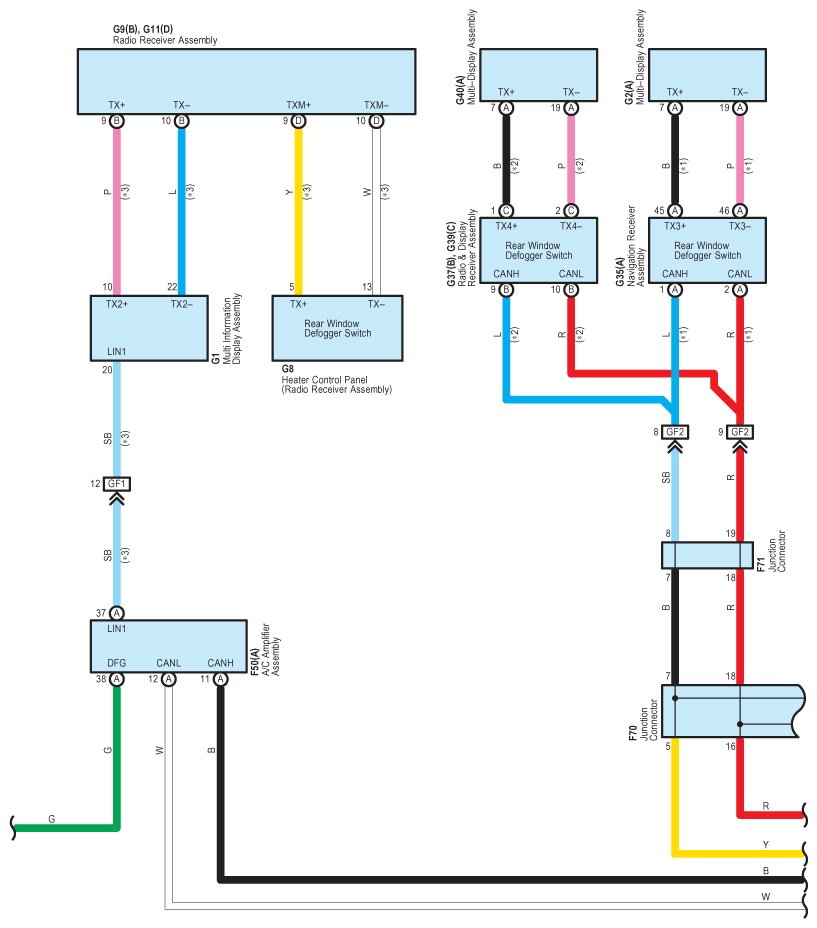

Fig 2: Mirror Heater And Rear Window Defogger System Wiring Diagram (2 Of 5)
G09127883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

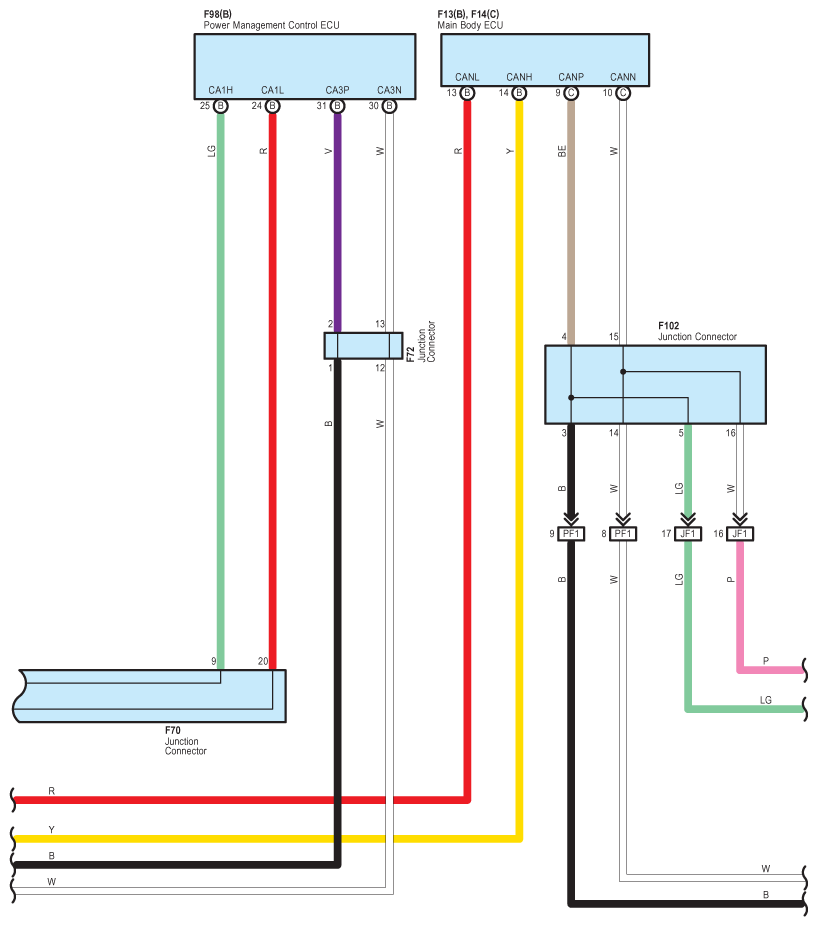

Fig 3: Mirror Heater And Rear Window Defogger System Wiring Diagram (3 Of 5)
G09127884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

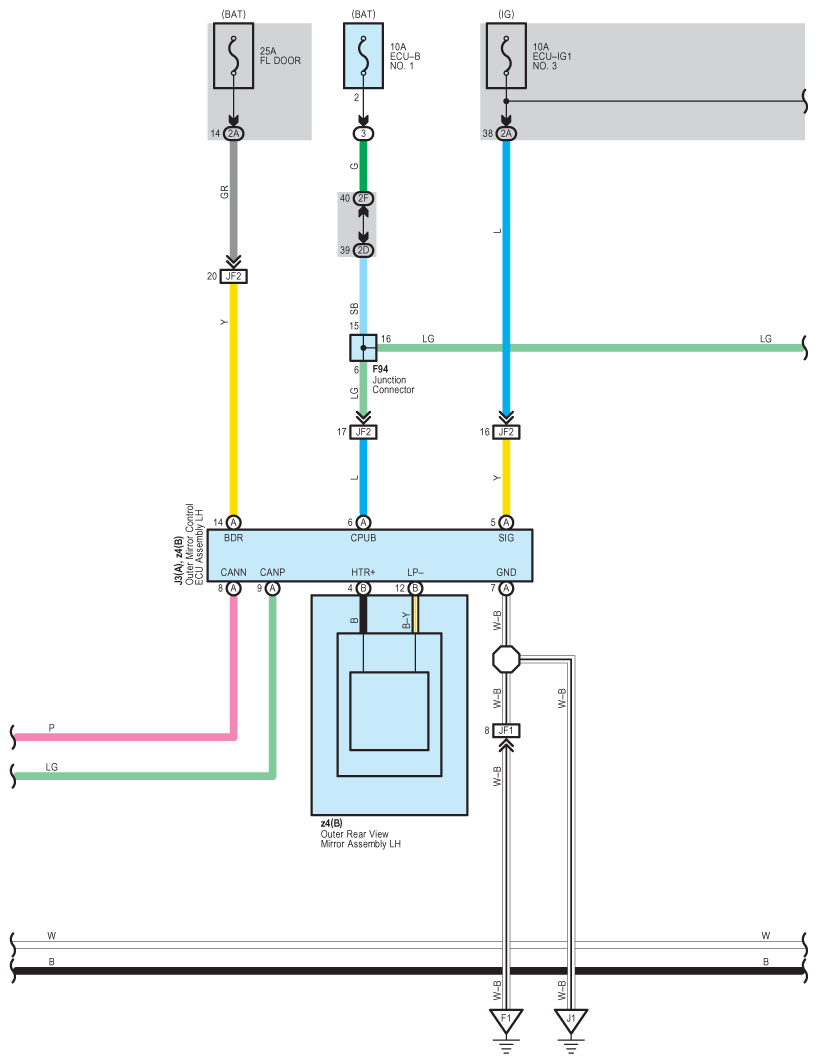

Fig 4: Mirror Heater And Rear Window Defogger System Wiring Diagram (4 Of 5)
G09127885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

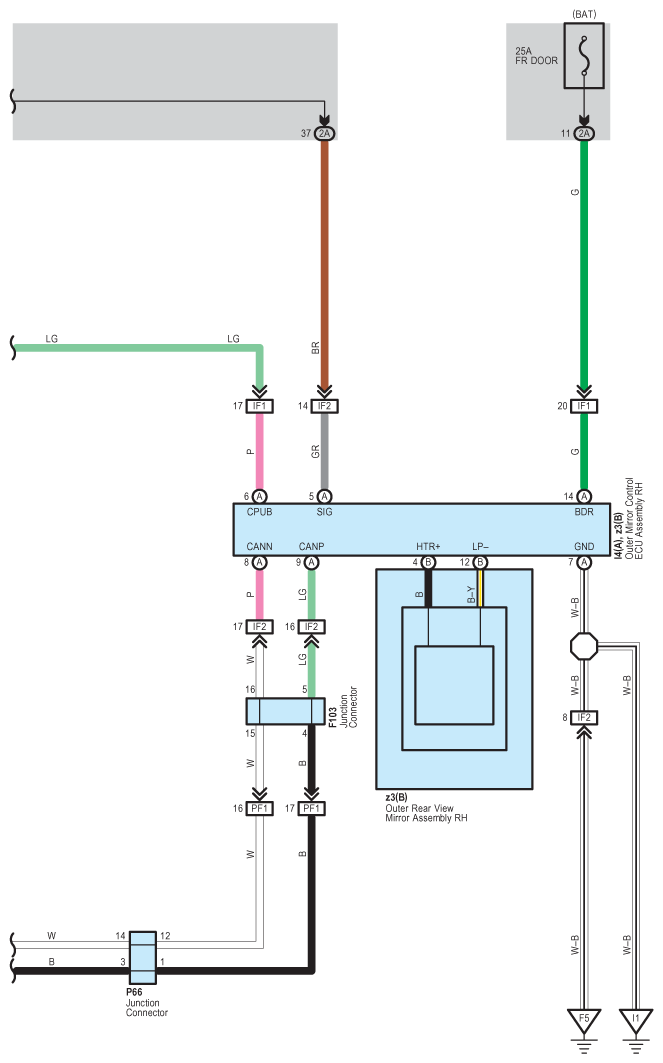

Fig 5: Mirror Heater And Rear Window Defogger System Wiring Diagram (5 Of 5)
G09127886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
