LEXUS ENFORM or Safety Connect: Notes

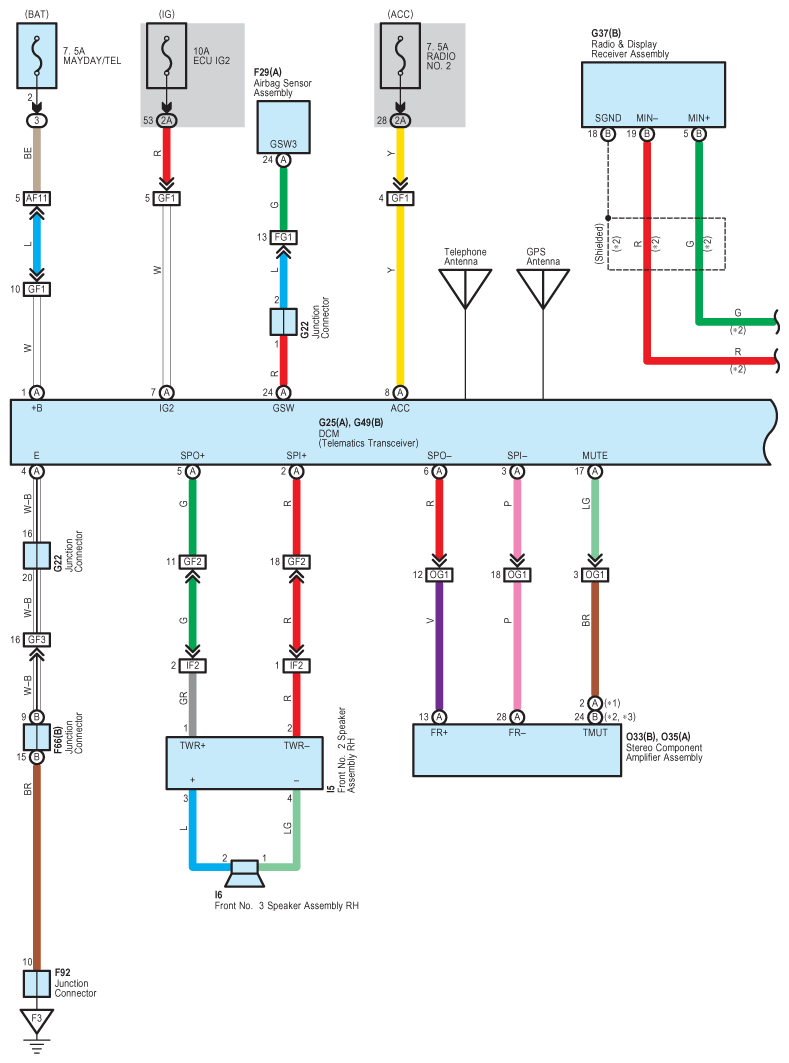

Fig 1: LEXUS Enform Or Safety Connect System Wiring Diagram (1 Of 5)
G09127910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

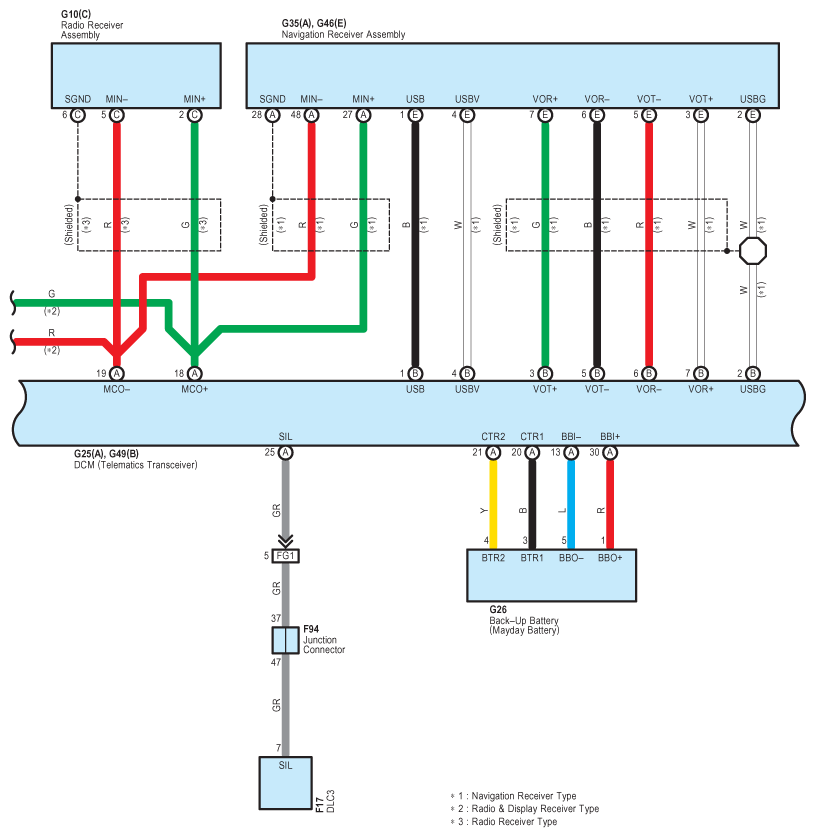

Fig 2: LEXUS Enform Or Safety Connect System Wiring Diagram (2 Of 5)
G09127911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

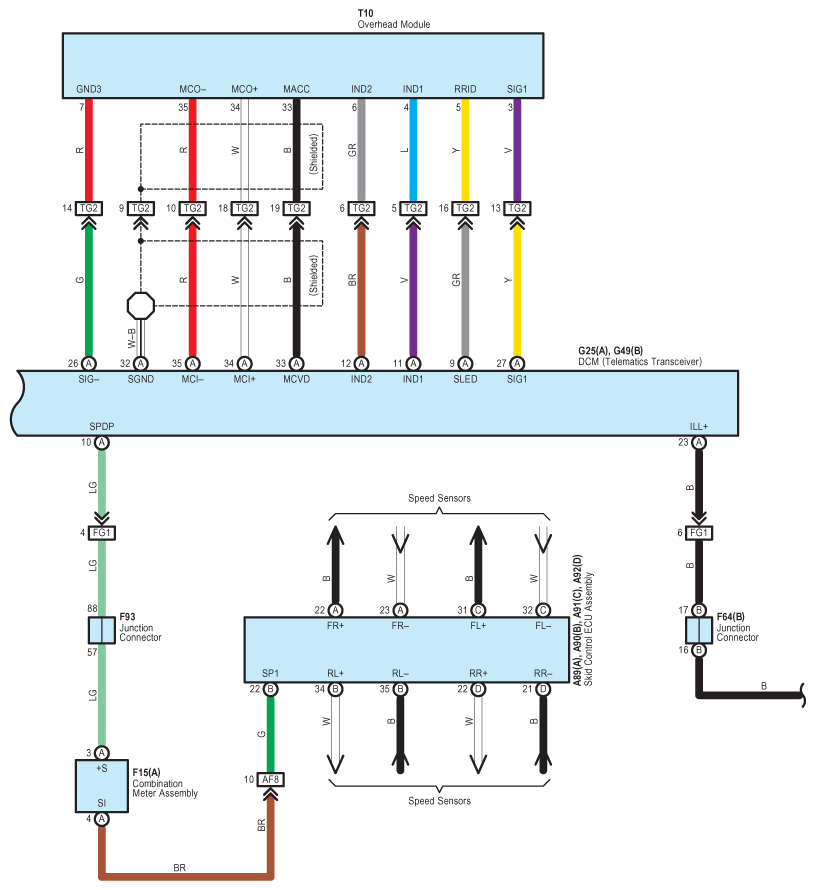

Fig 3: LEXUS Enform Or Safety Connect System Wiring Diagram (3 Of 5)
G09127912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

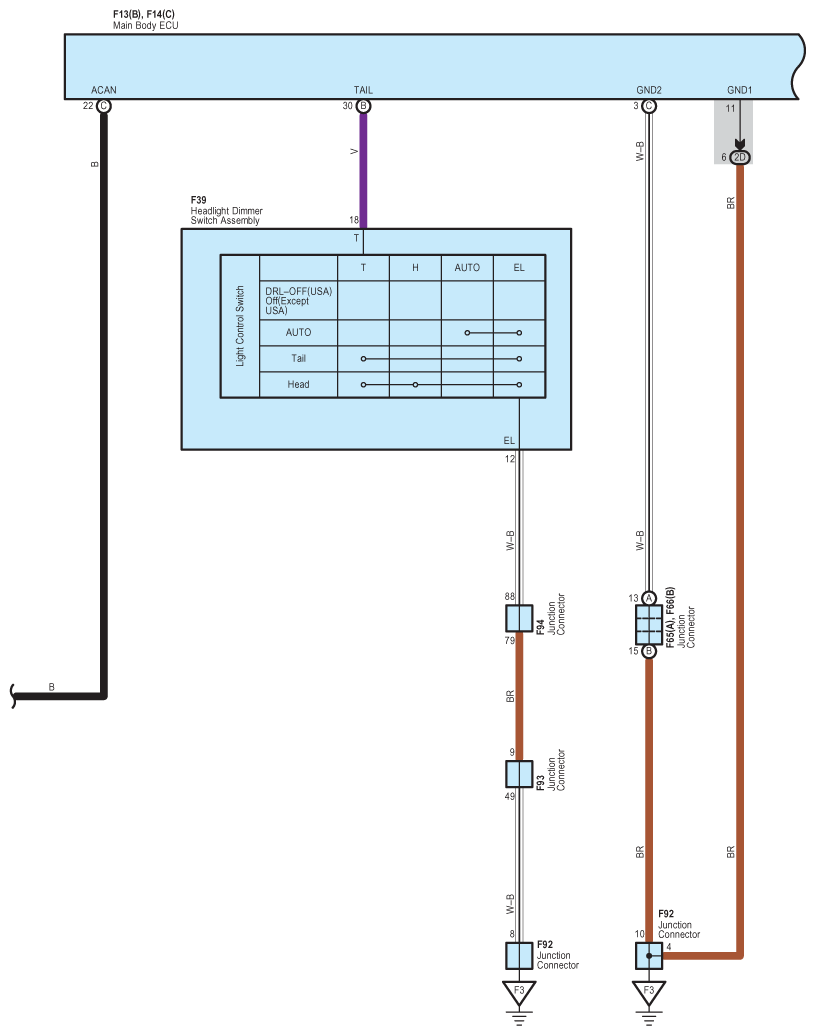

Fig 4: LEXUS Enform Or Safety Connect System Wiring Diagram (4 Of 5)
G09127913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

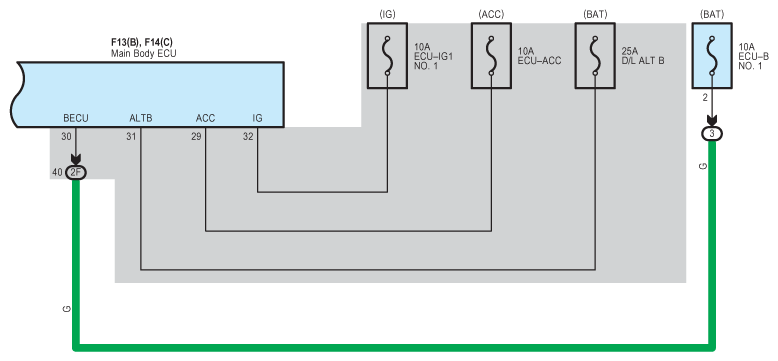

Fig 5: LEXUS Enform Or Safety Connect System Wiring Diagram (5 Of 5)
G09127914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
