OEM System Circuits: Illumination: Notes

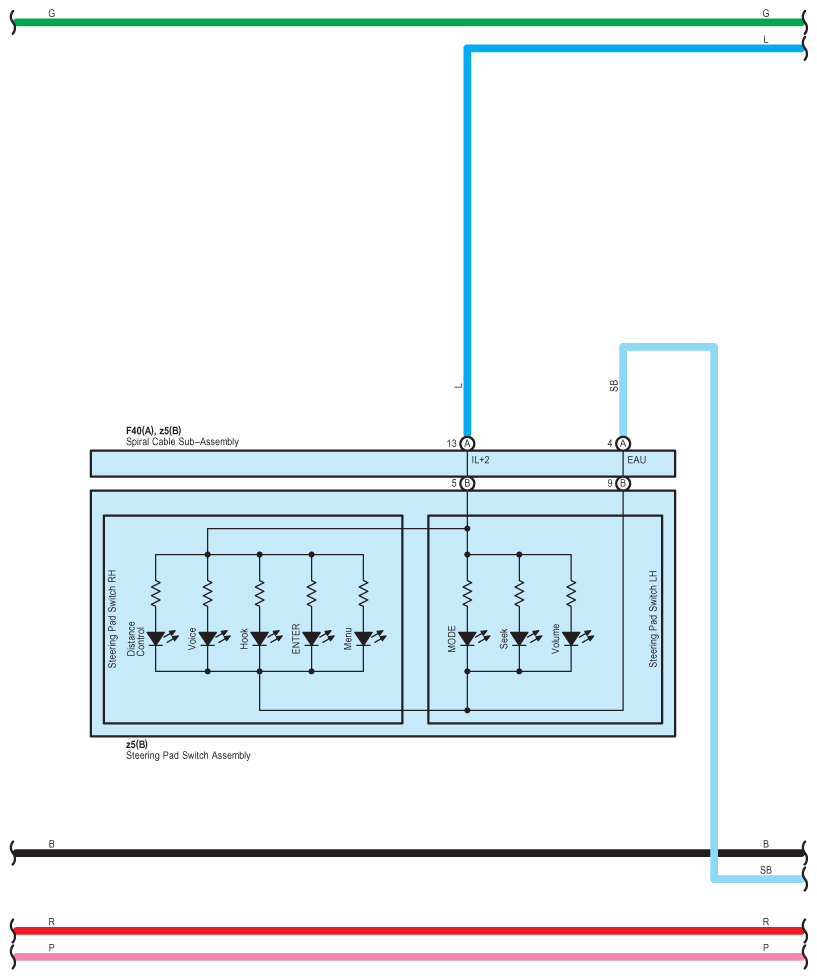

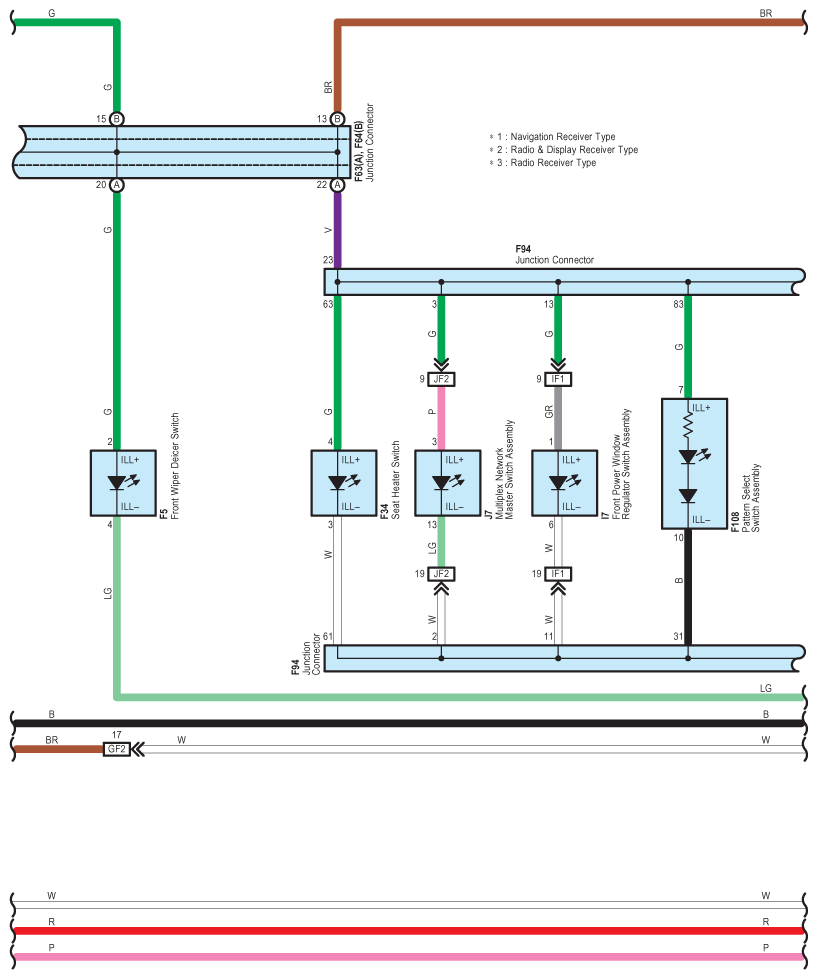

Fig 1: Illumination System Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

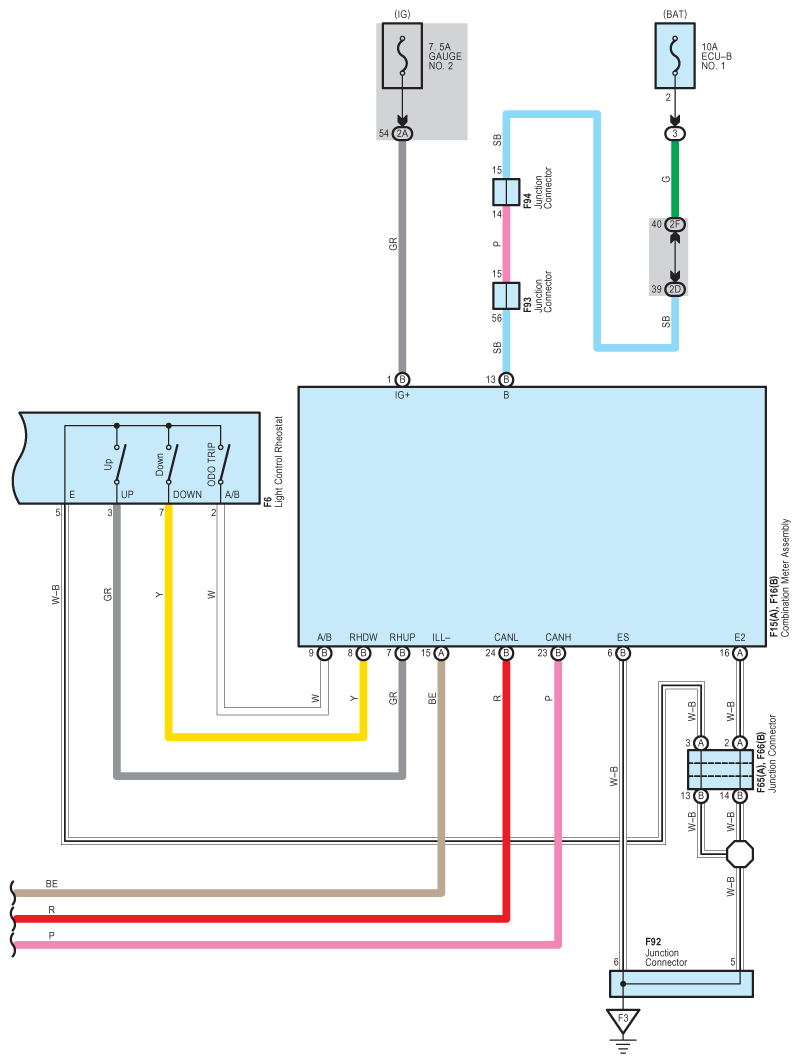

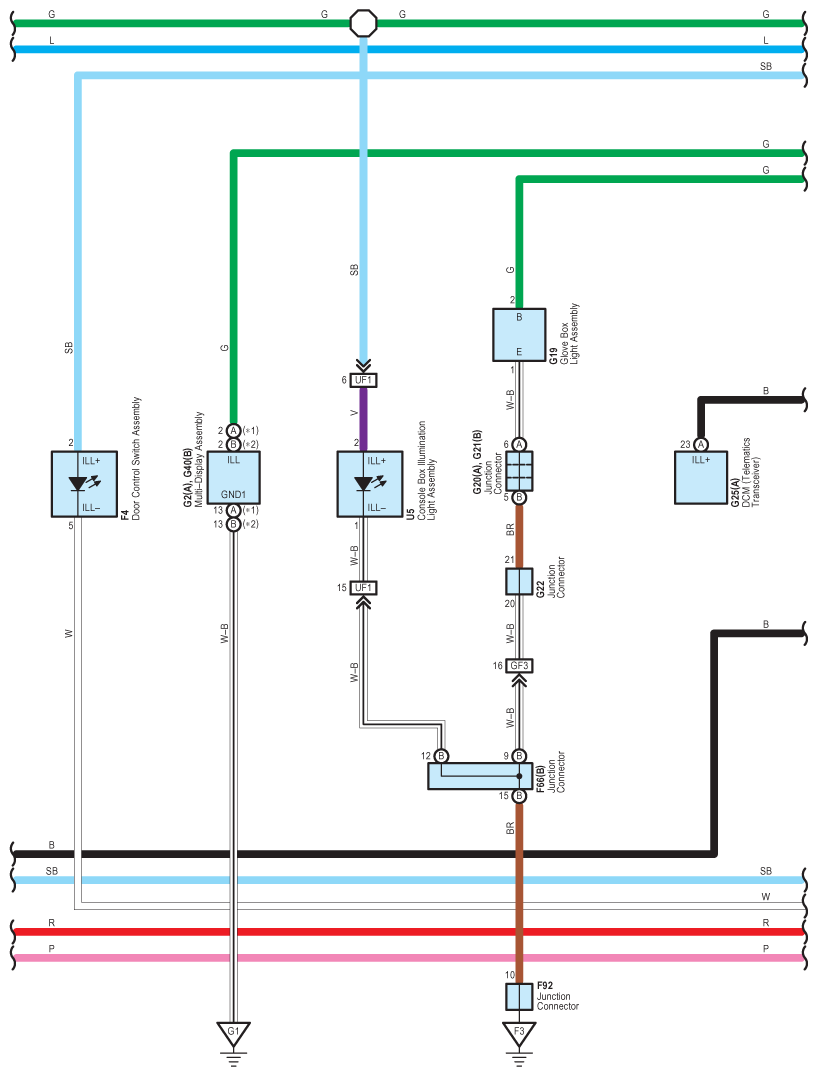

Fig 2: Illumination System Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

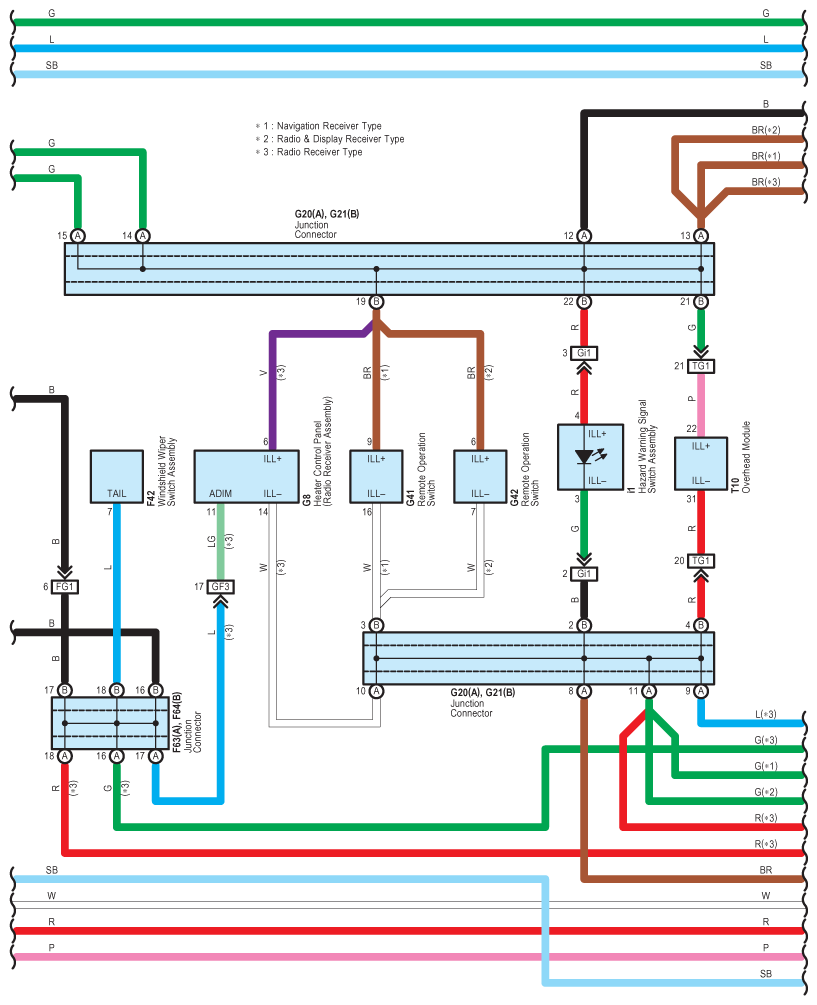

Fig 3: Illumination System Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

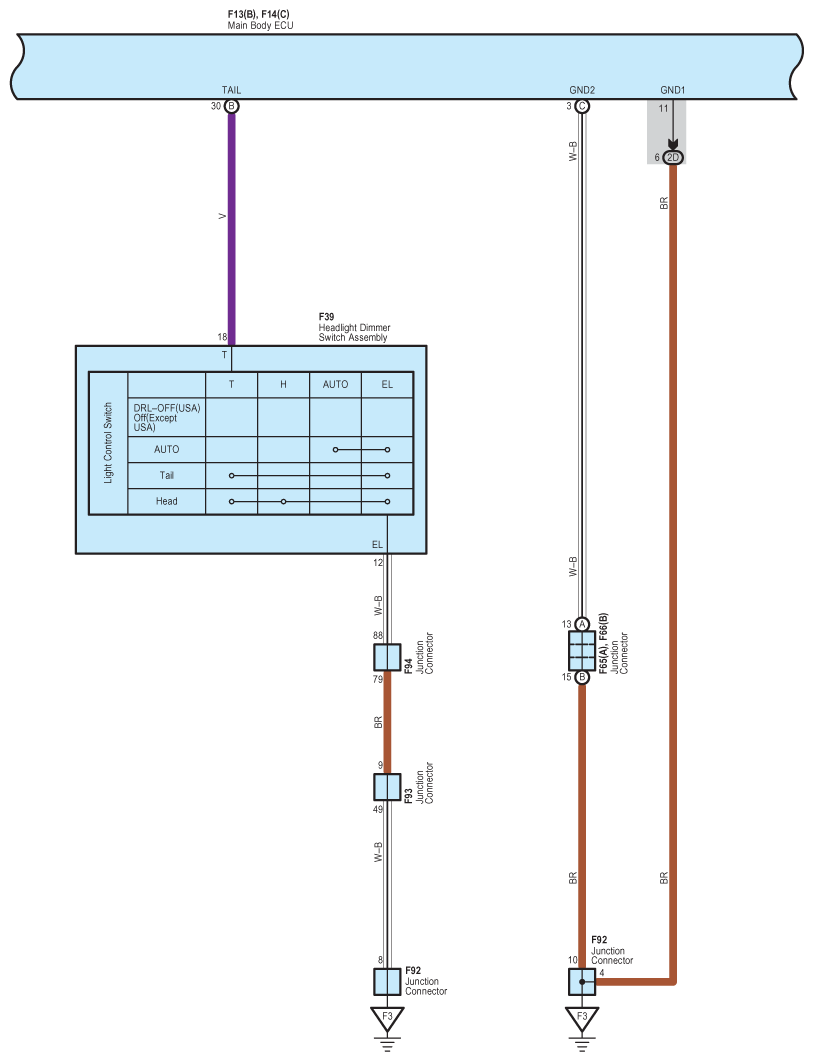

Fig 4: Illumination System Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

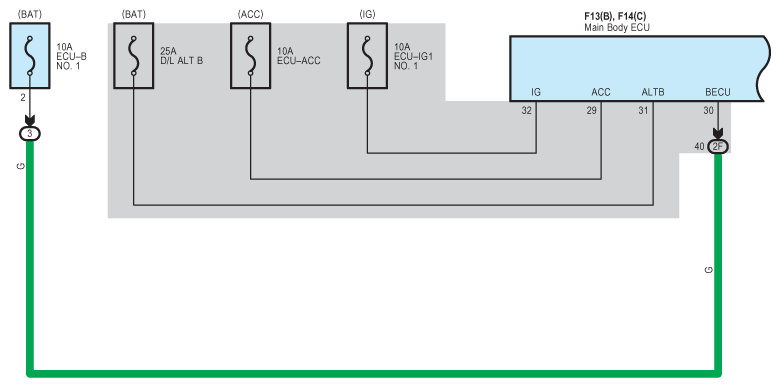

Fig 5: Illumination System Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

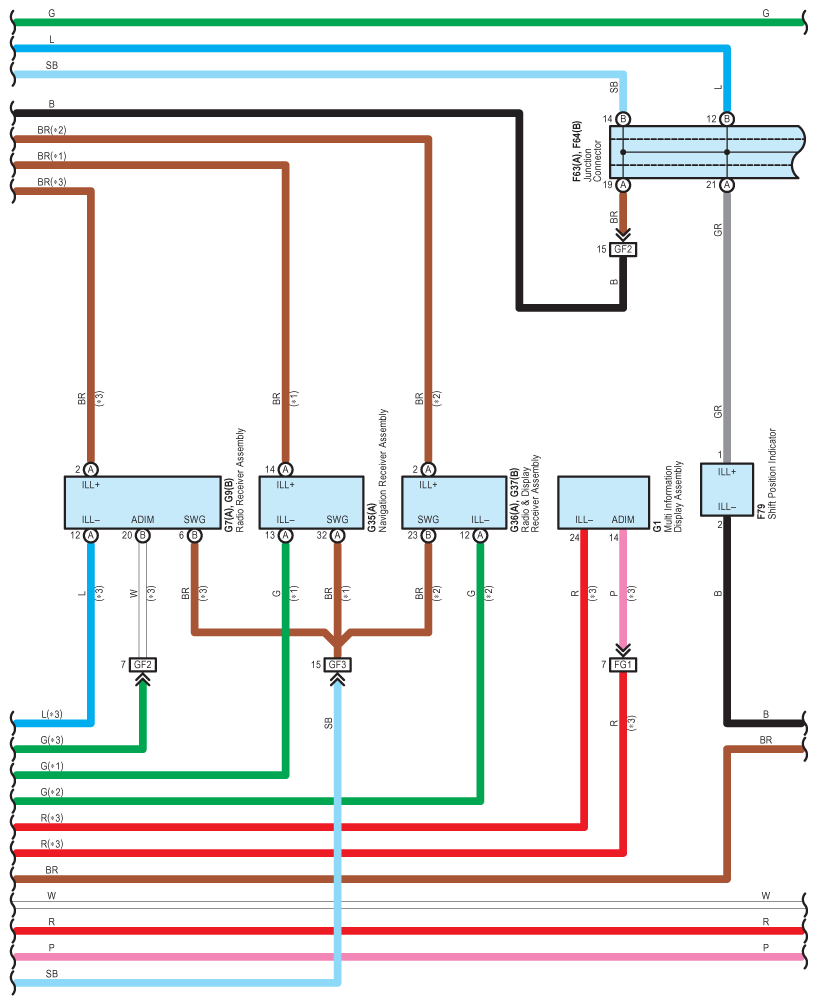

Fig 6: Illumination System Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

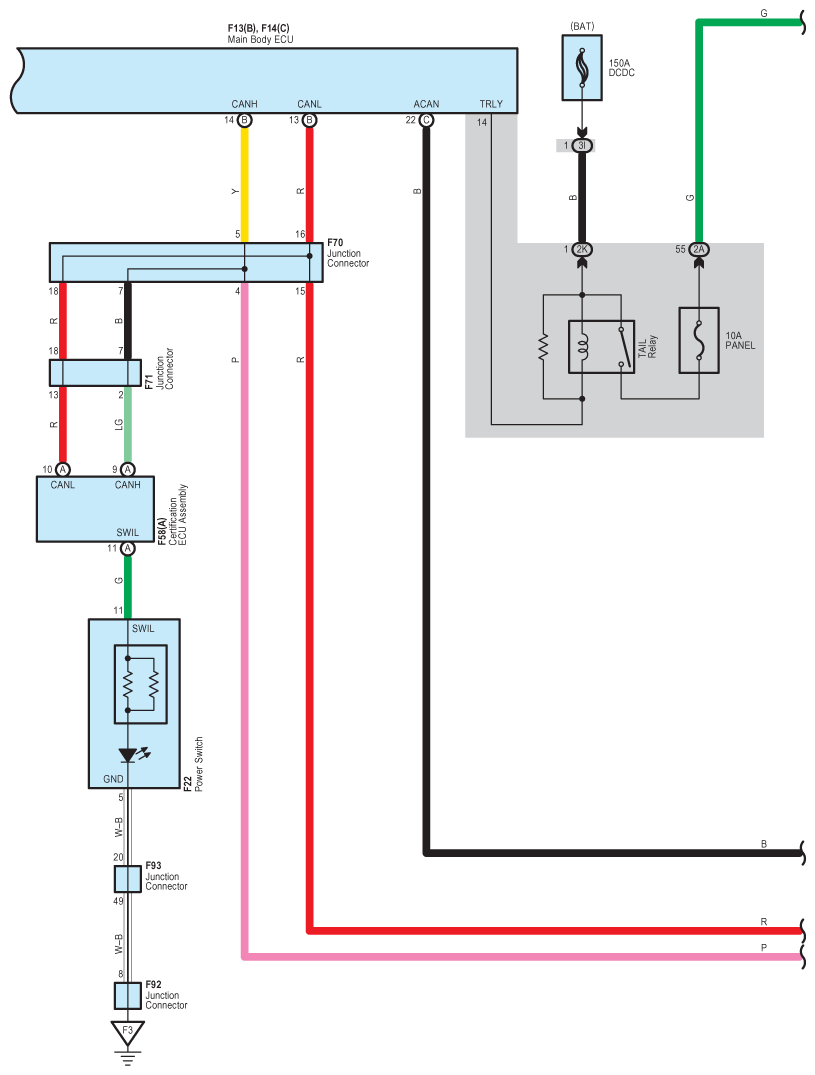

Fig 7: Illumination System Wiring Diagram (7 Of 10)

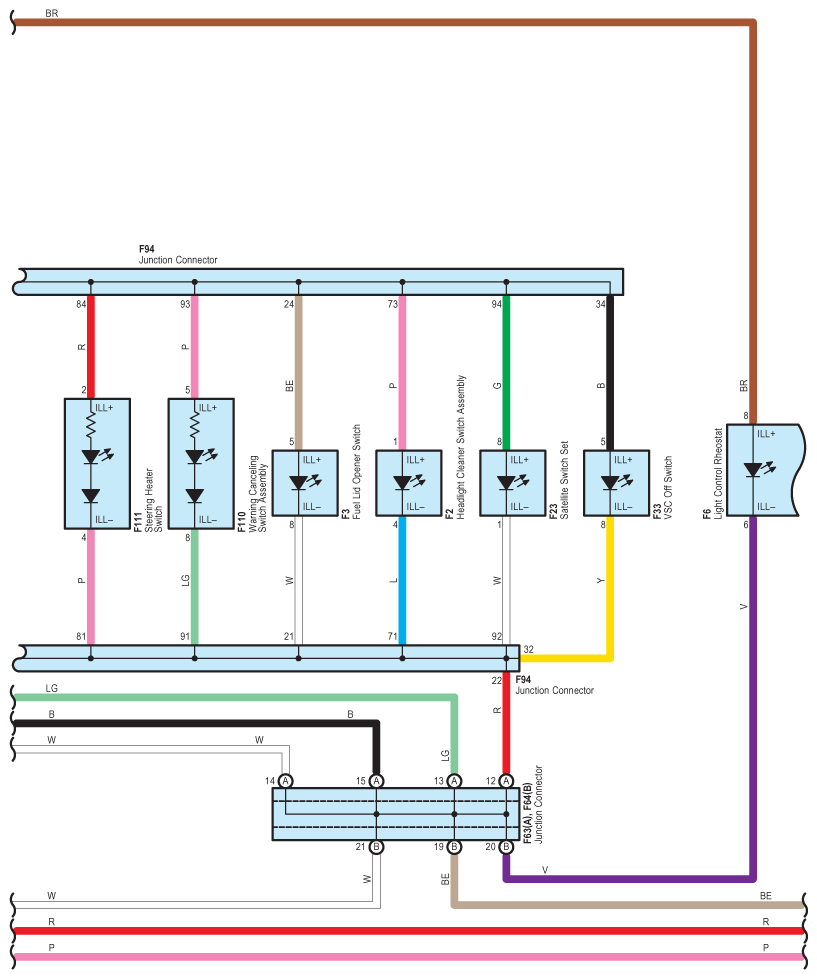

Fig 8: Illumination System Wiring Diagram (8 Of 10)

Fig 9: Illumination System Wiring Diagram (9 Of 10)

Fig 10: Illumination System Wiring Diagram (10 Of 10)
