OEM System Circuits: Ignition: Notes

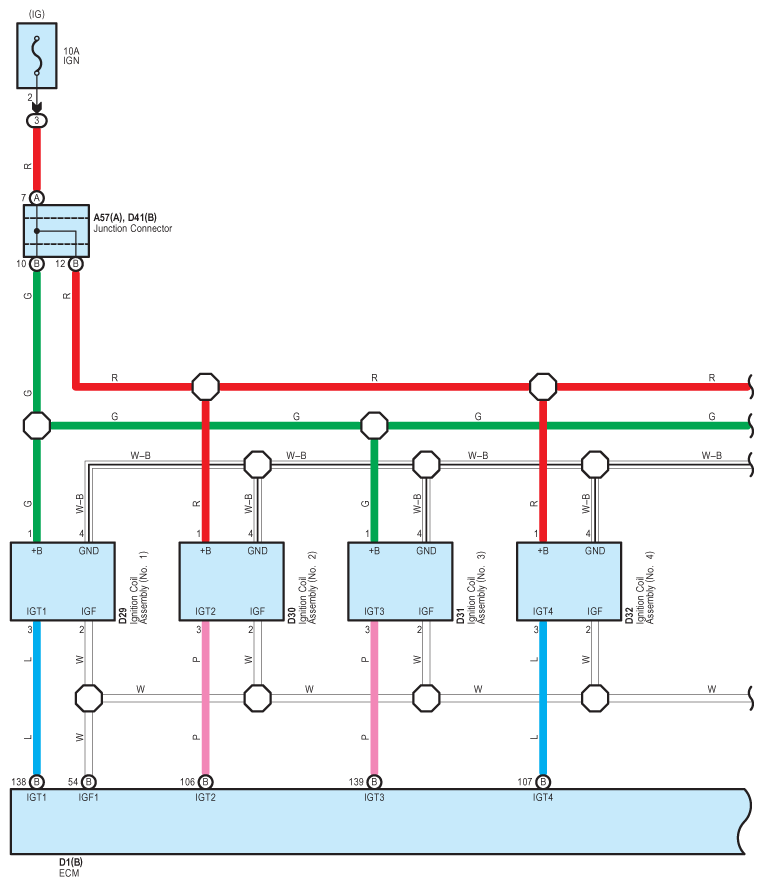

Fig 1: Ignition System Wiring Diagram (1 Of 2)
G09127668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

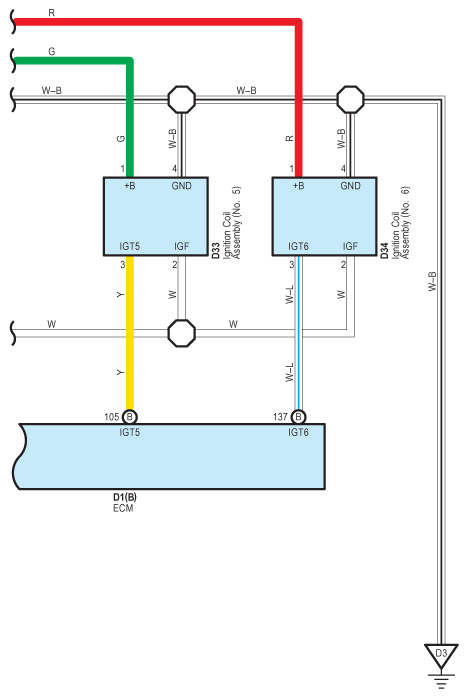

Fig 2: Ignition System Wiring Diagram (2 Of 2)
G09127669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
