Hybrid System: Notes

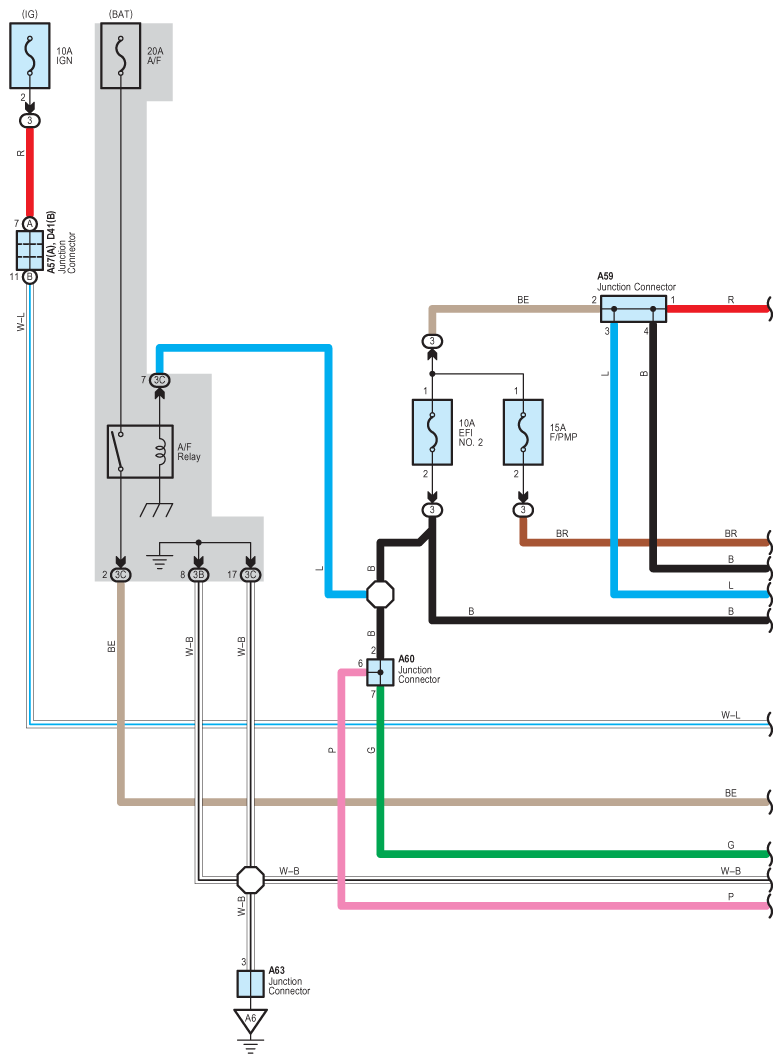

Fig 1: Hybrid System Wiring Diagram (1 Of 30)

G09127670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

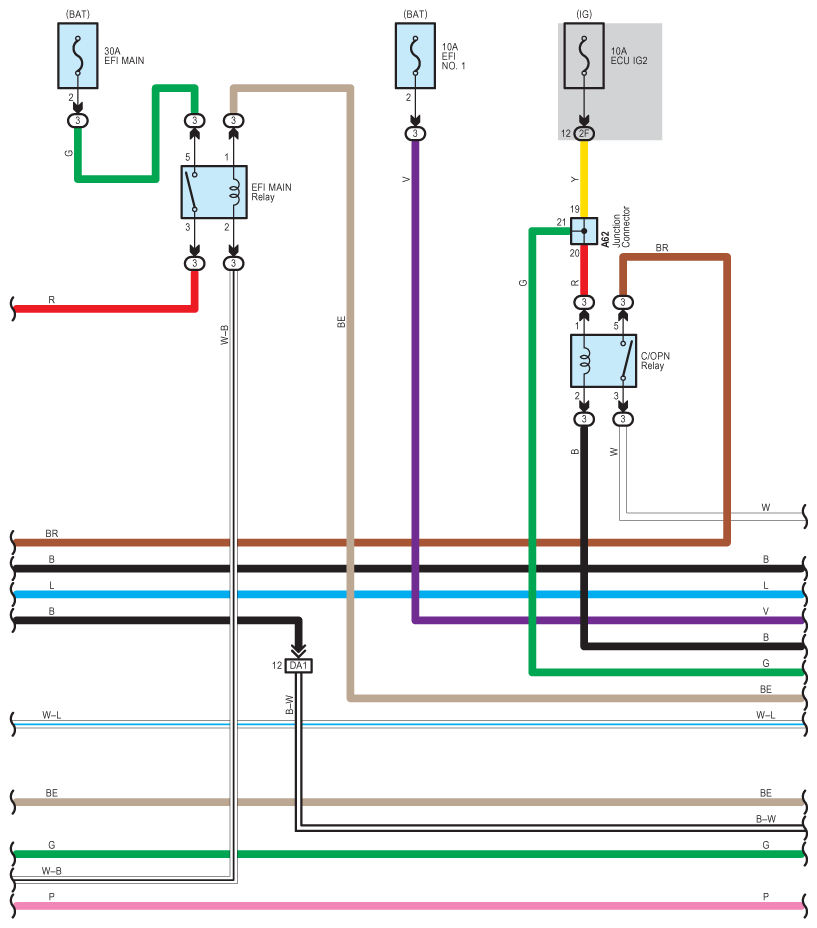

Fig 2: Hybrid System Wiring Diagram (2 Of 30)

G09127671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

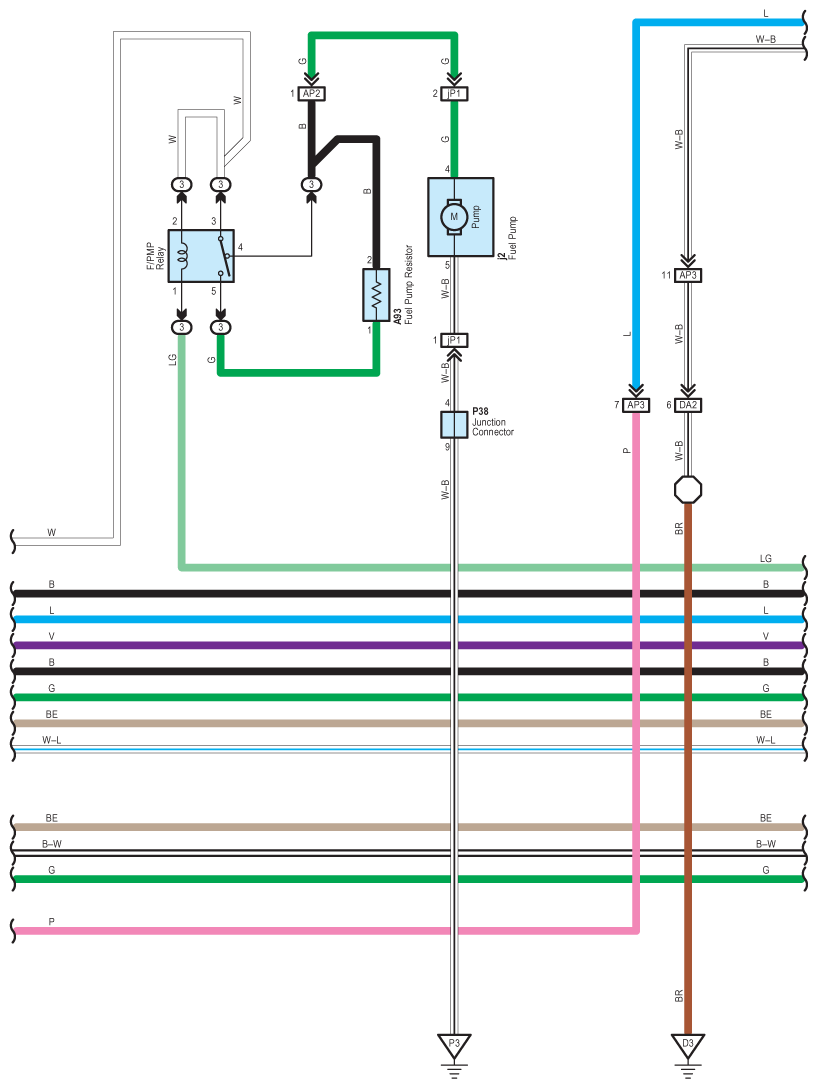

Fig 3: Hybrid System Wiring Diagram (3 Of 30)

G09127672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

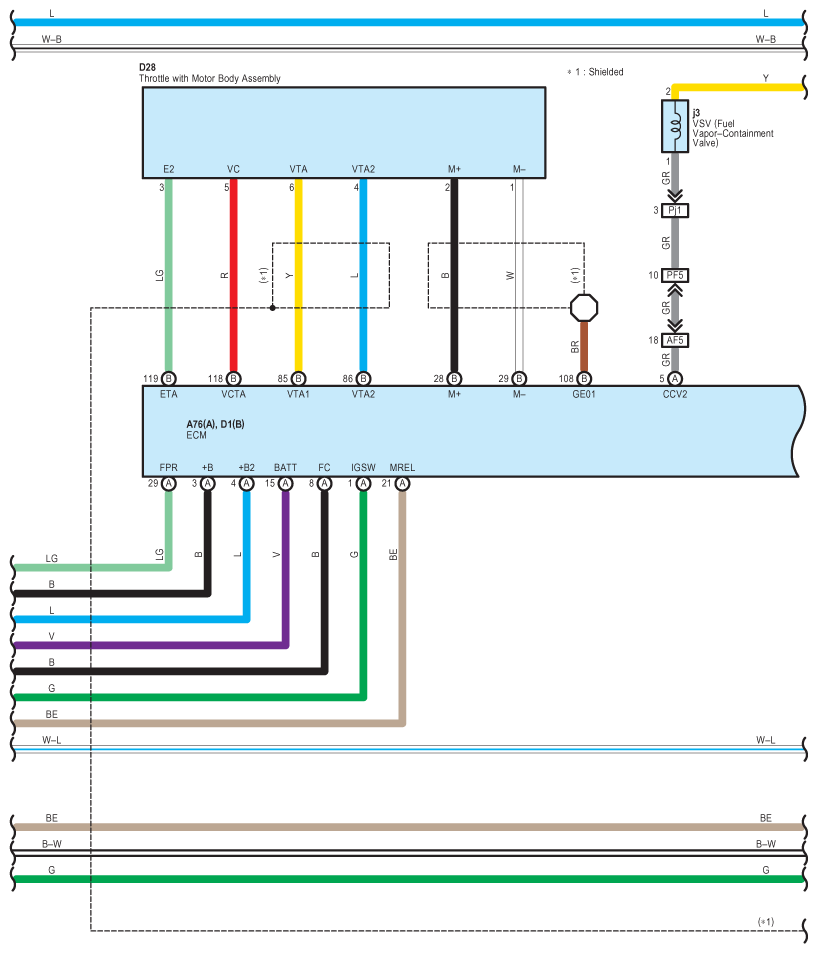

Fig 4: Hybrid System Wiring Diagram (4 Of 30)

G09127673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

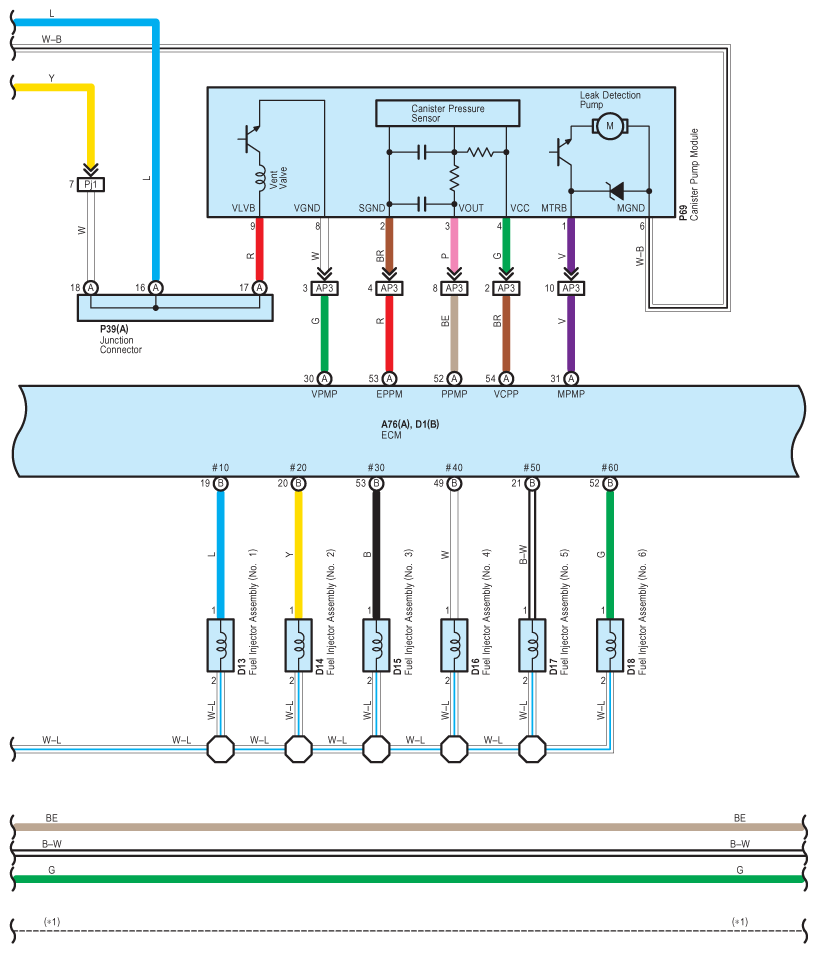

Fig 5: Hybrid System Wiring Diagram (5 Of 30)

G09127674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

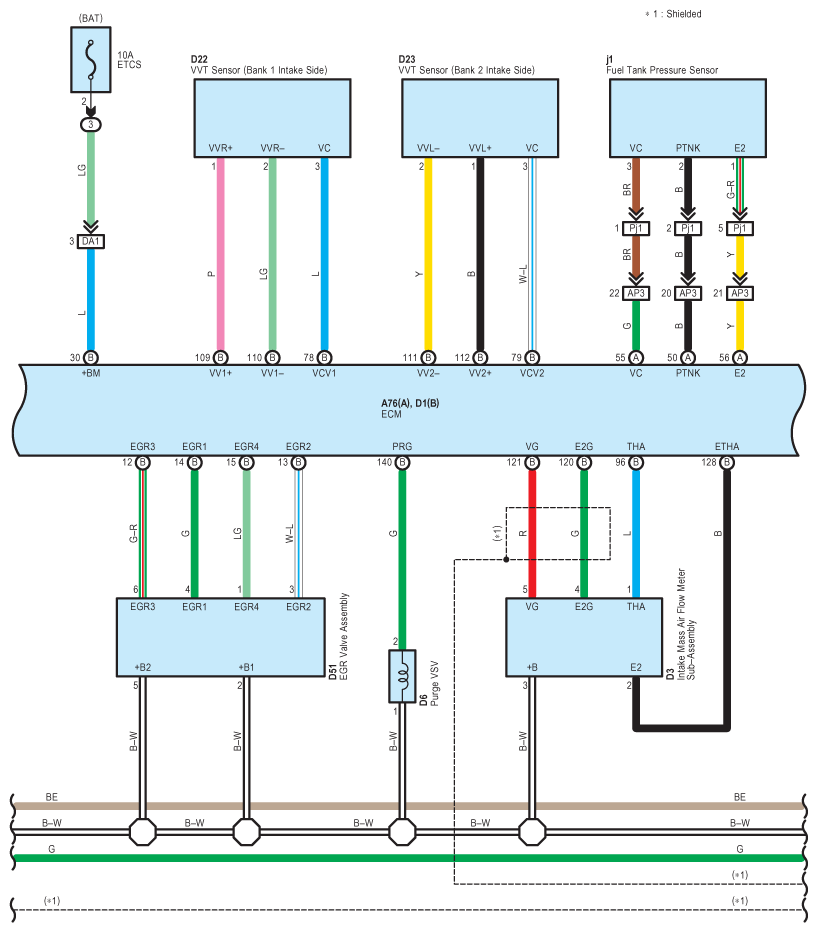

Fig 6: Hybrid System Wiring Diagram (6 Of 30)

G09127675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

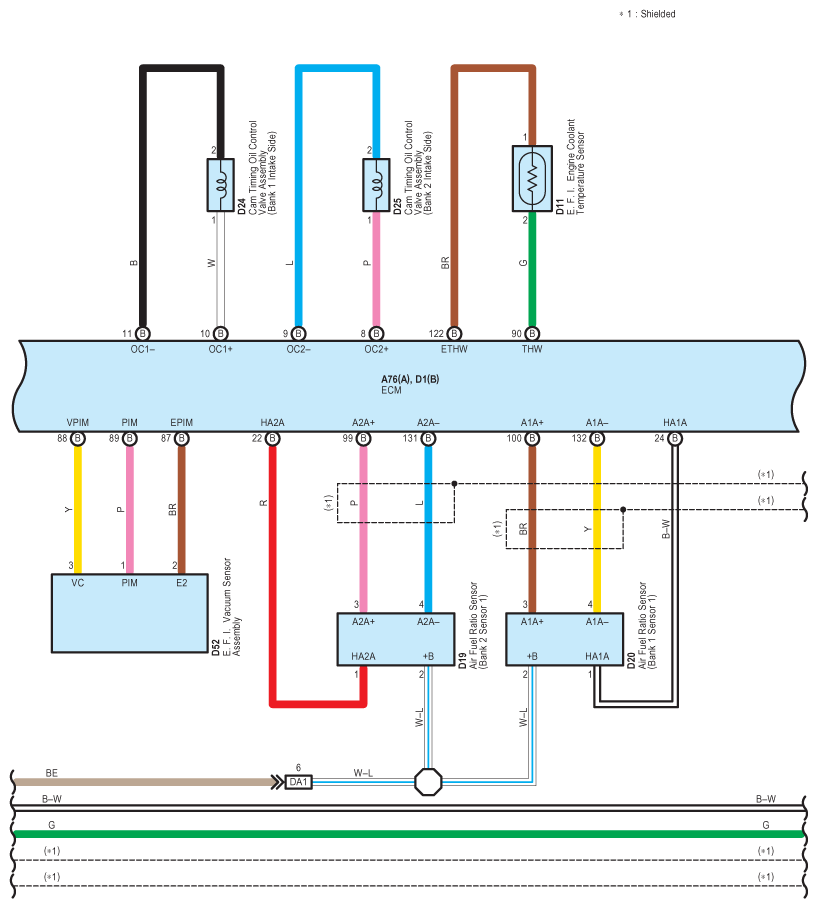

Fig 7: Hybrid System Wiring Diagram (7 Of 30)

G09127676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

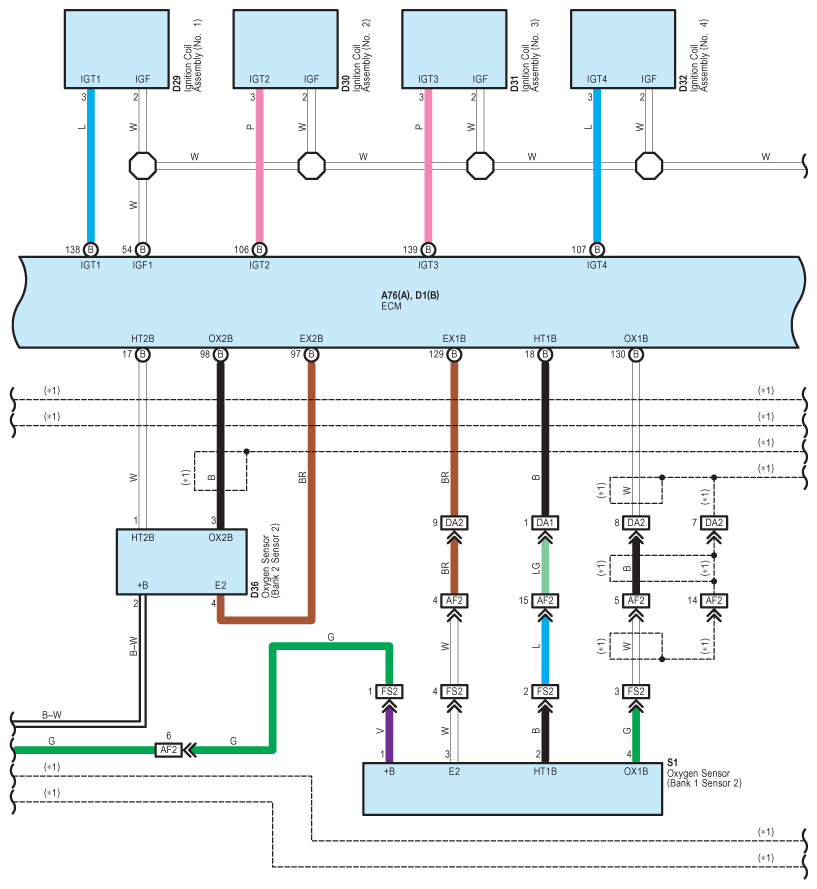

Fig 8: Hybrid System Wiring Diagram (8 Of 30)

G09127677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

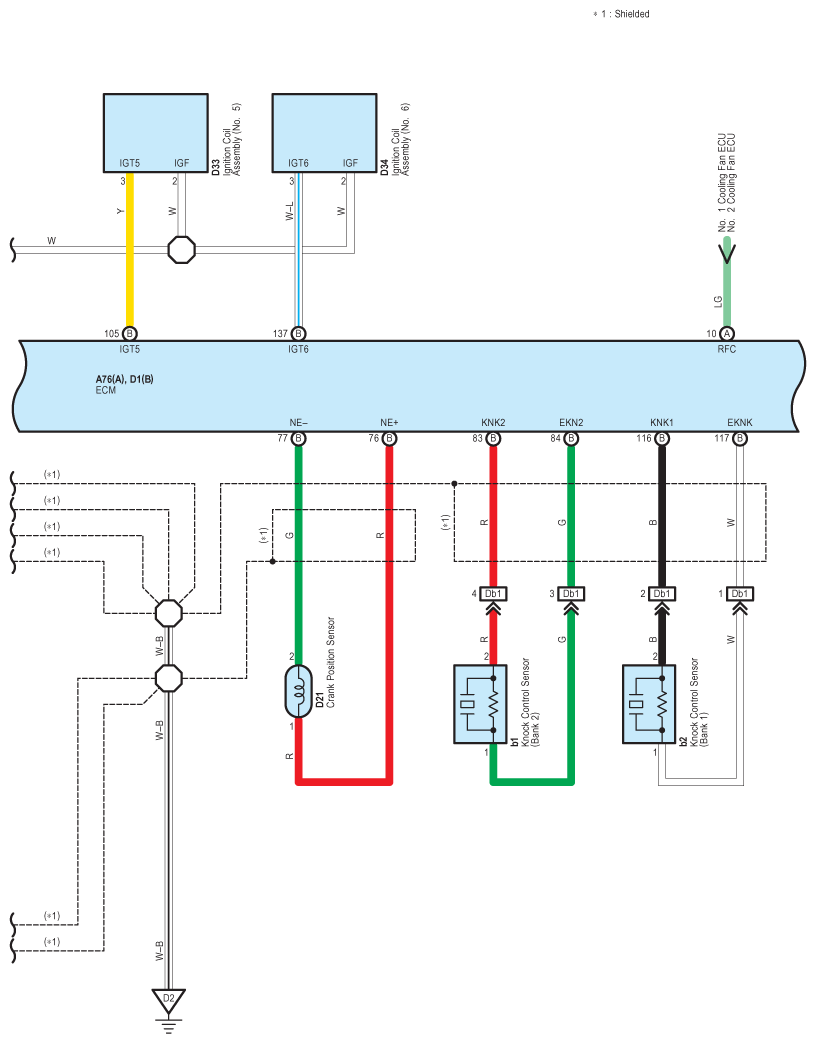

Fig 9: Hybrid System Wiring Diagram (9 Of 30)

G09127678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

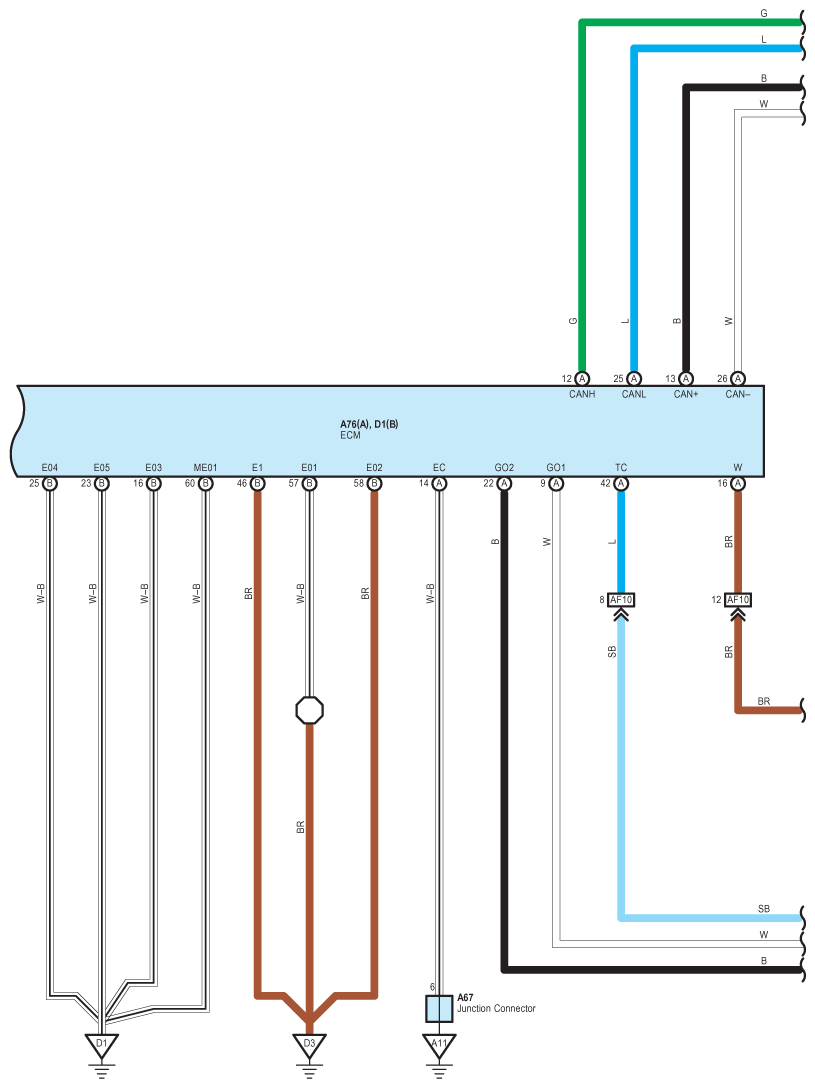

Fig 10: Hybrid System Wiring Diagram (10 Of 30)

G09127679

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

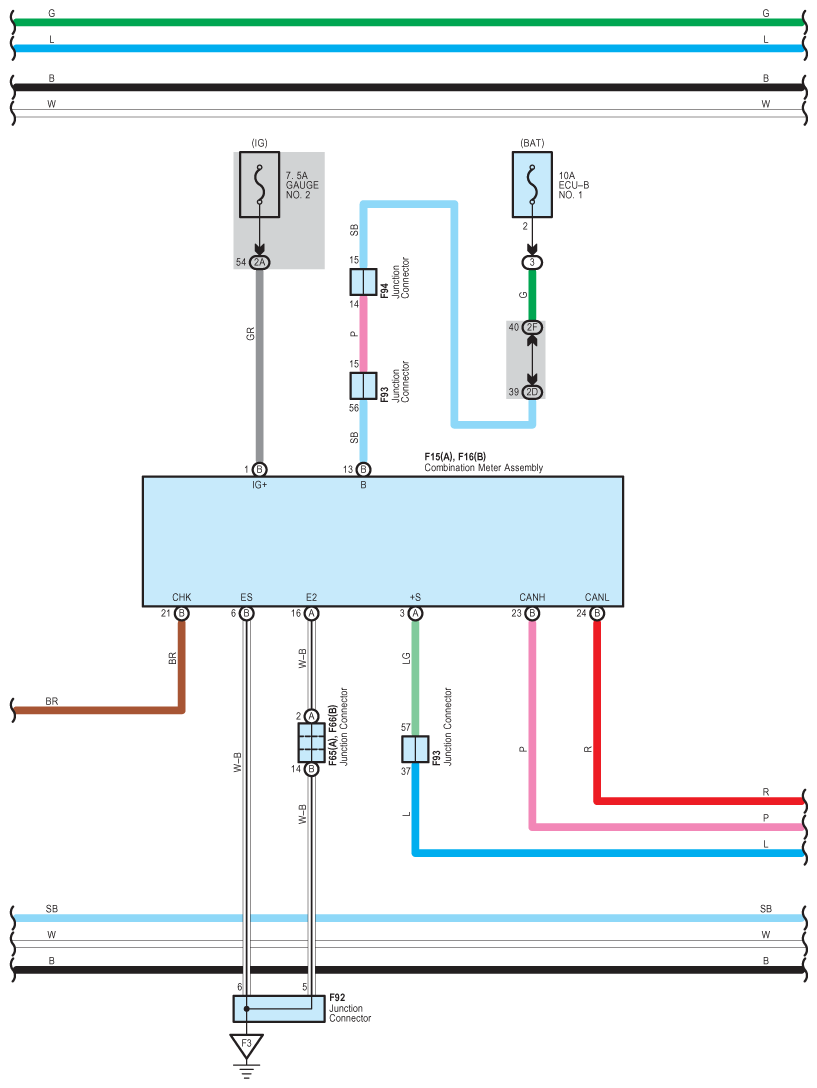

Fig 11: Hybrid System Wiring Diagram (11 Of 30)

G09127680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

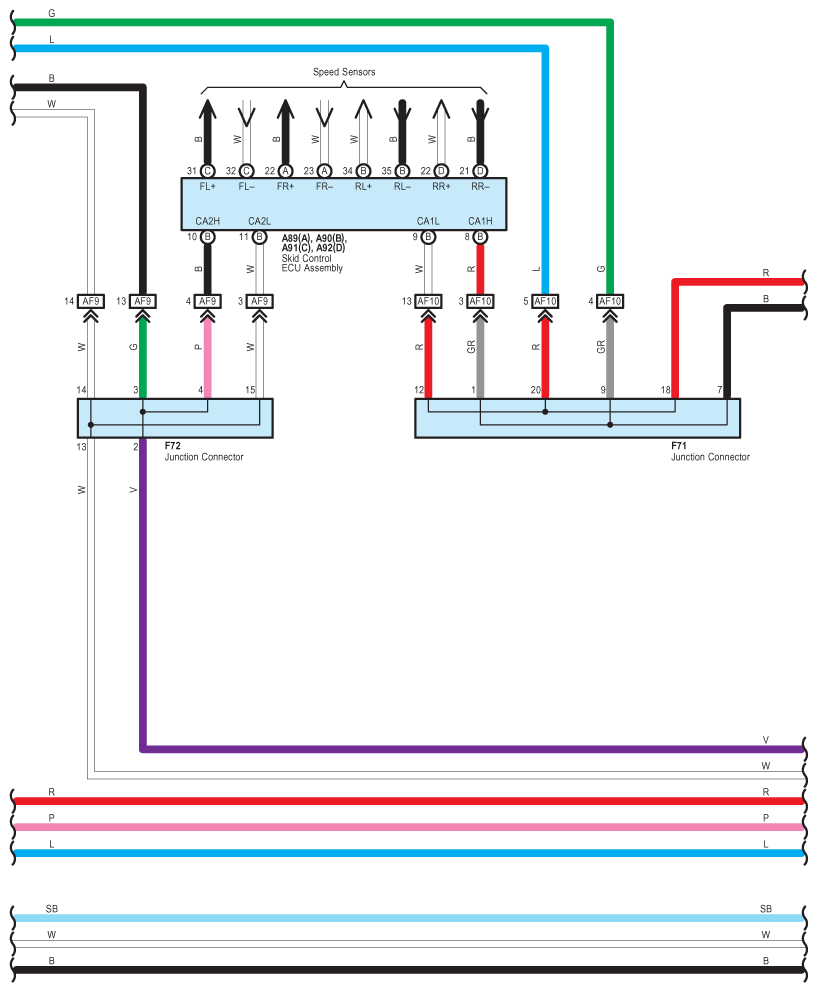

Fig 12: Hybrid System Wiring Diagram (12 Of 30)

G09127681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

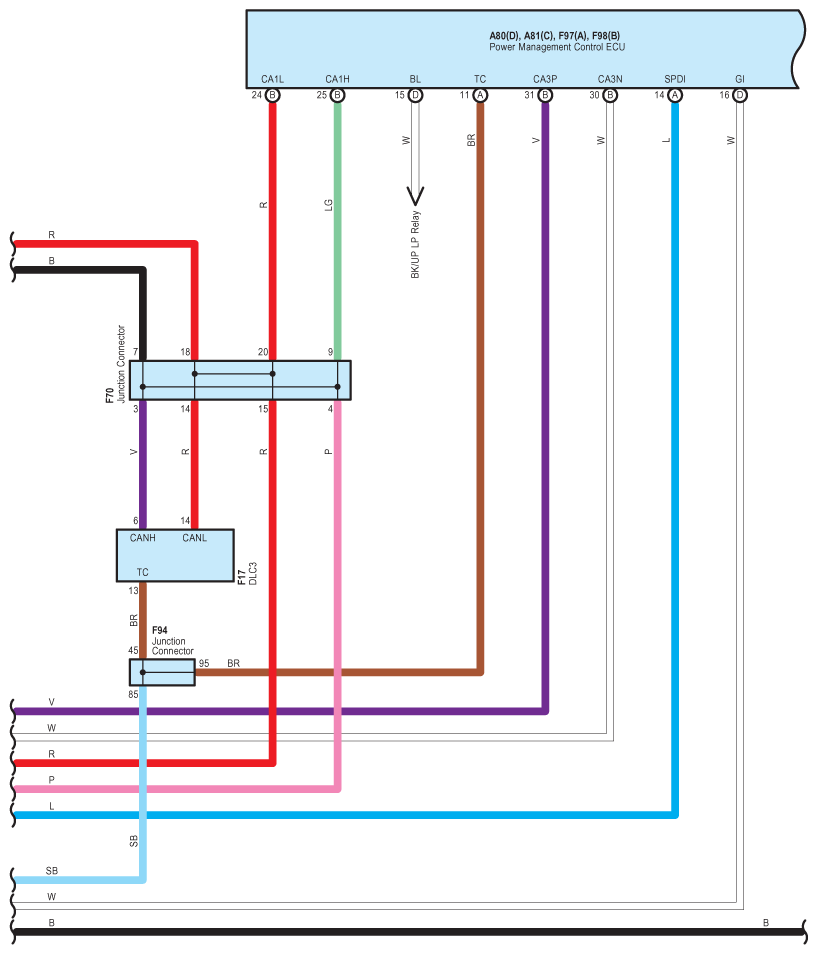

Fig 13: Hybrid System Wiring Diagram (13 Of 30)

G09127682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

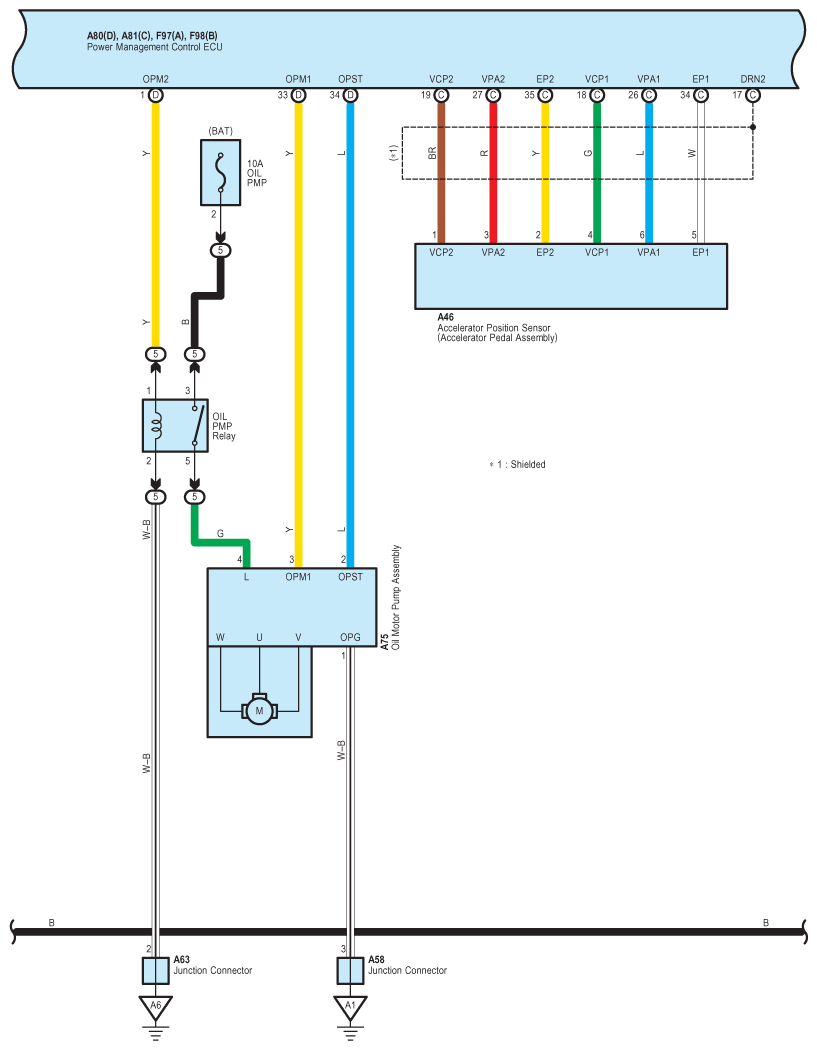

Fig 14: Hybrid System Wiring Diagram (14 Of 30)

G09127683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

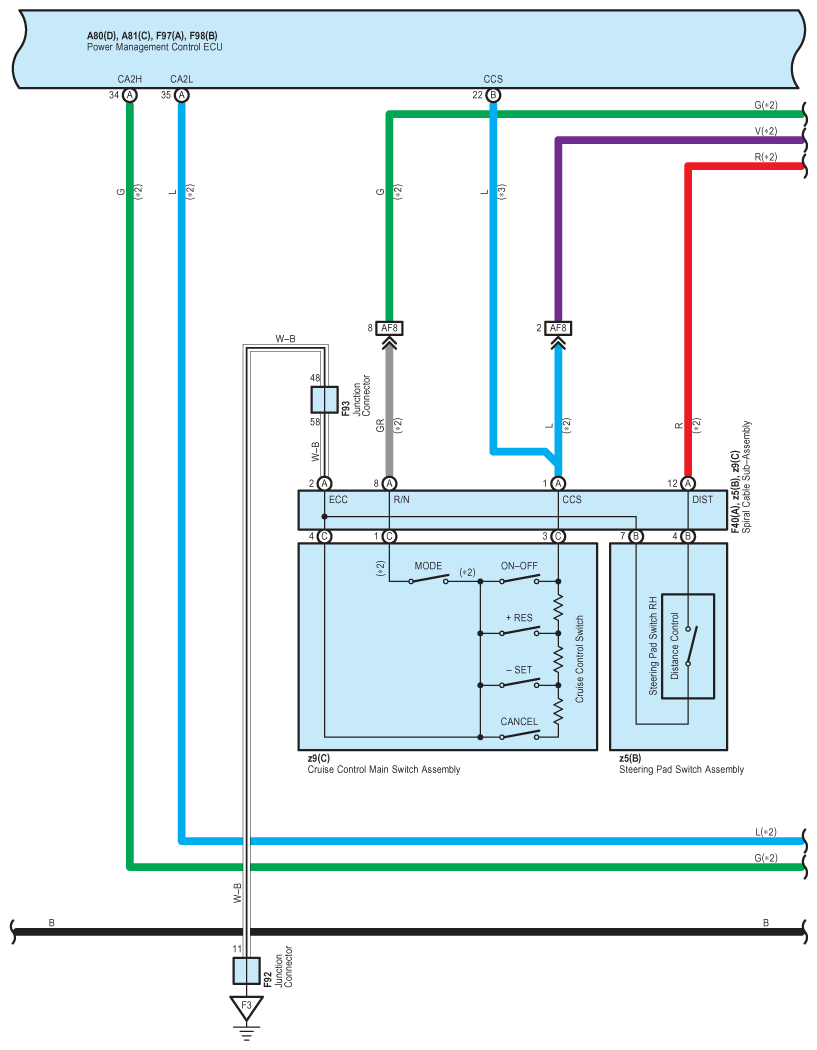

Fig 15: Hybrid System Wiring Diagram (15 Of 30)

G09127684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

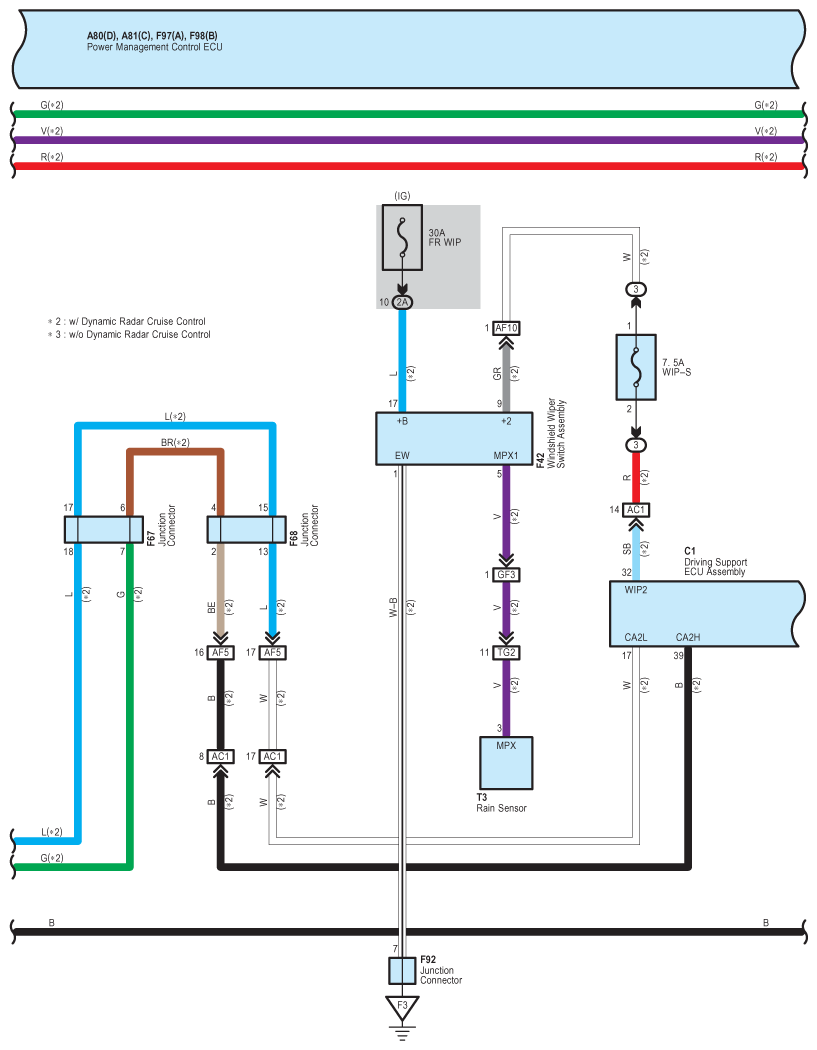

Fig 16: Hybrid System Wiring Diagram (16 Of 30)

G09127685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

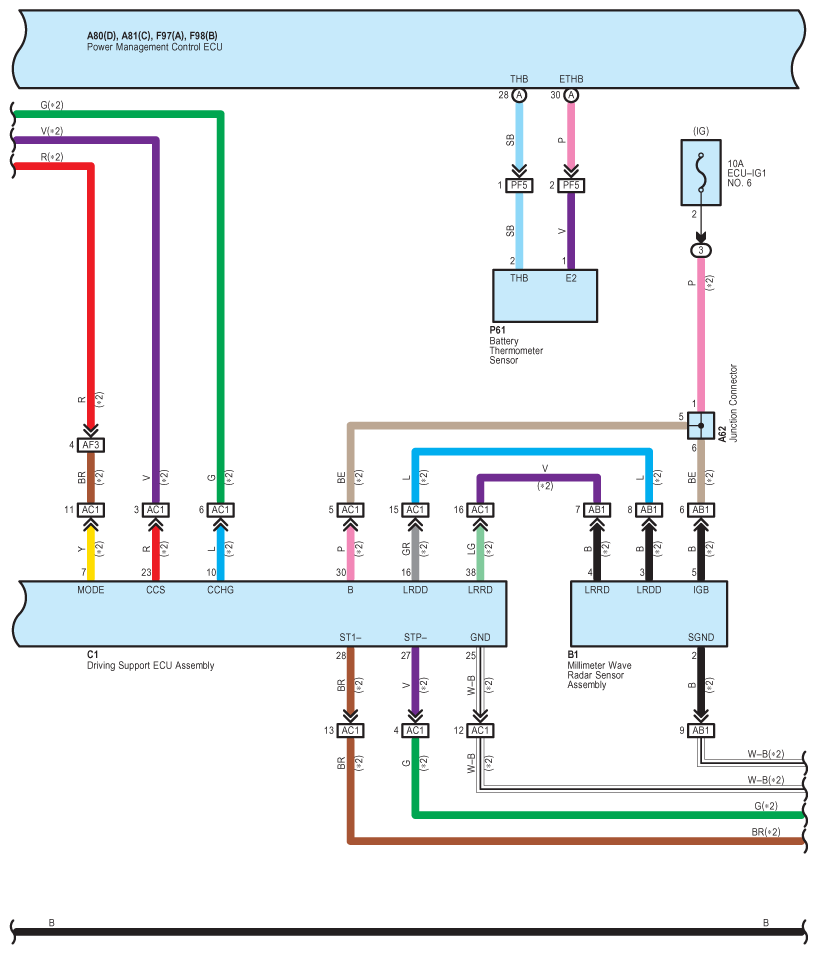

Fig 17: Hybrid System Wiring Diagram (17 Of 30)

G09127686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

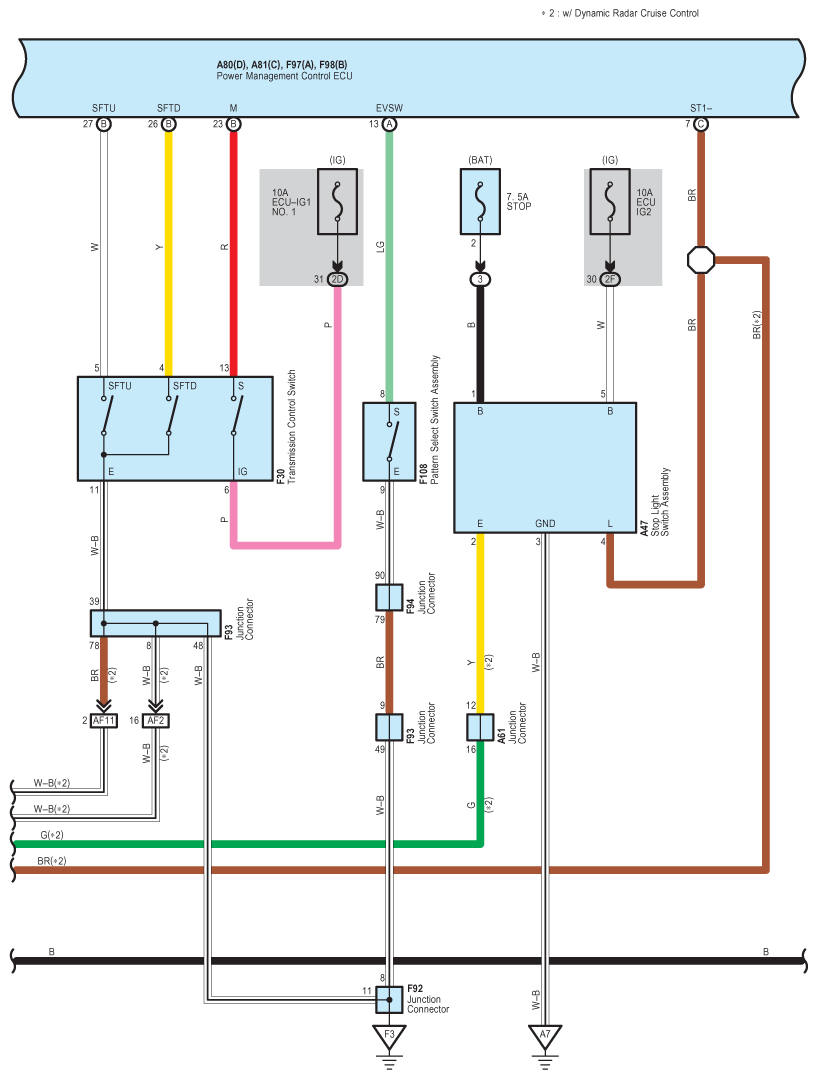

Fig 18: Hybrid System Wiring Diagram (18 Of 30)

G09127687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

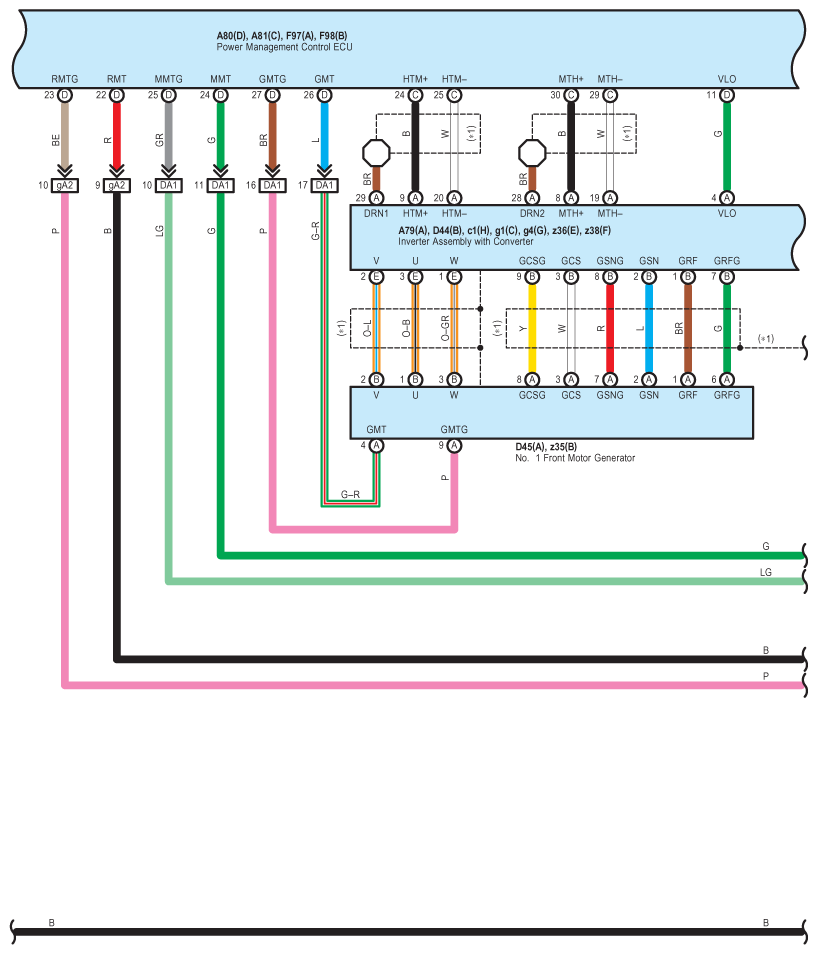

Fig 19: Hybrid System Wiring Diagram (19 Of 30)

G09127688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

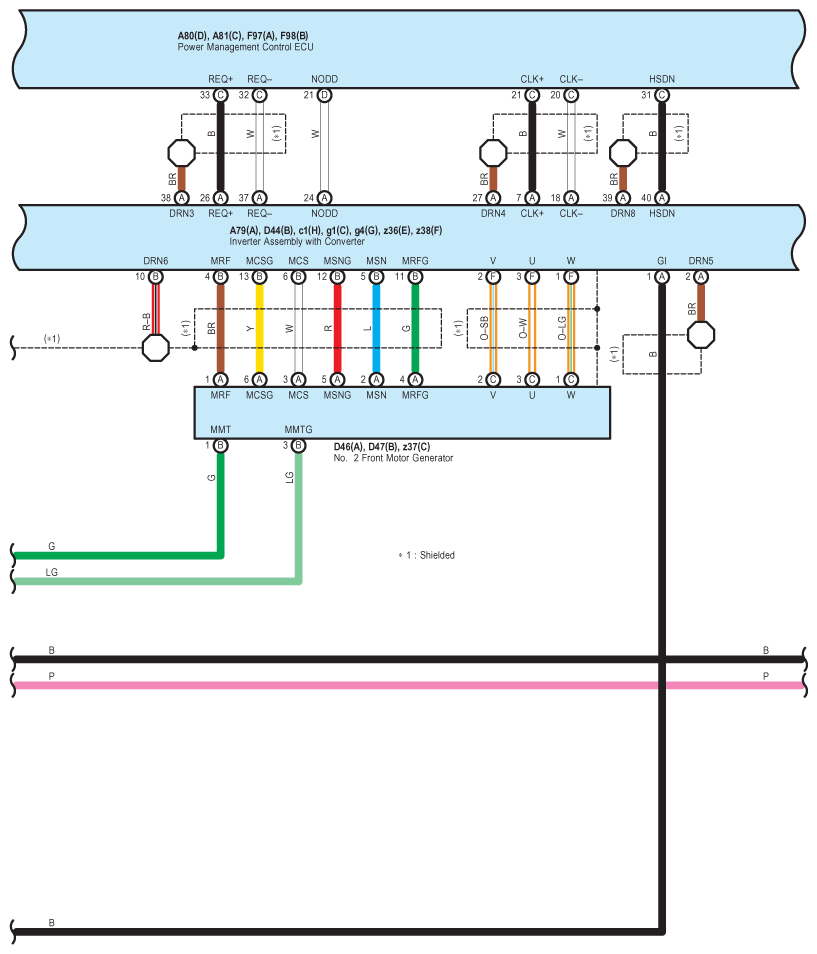

Fig 20: Hybrid System Wiring Diagram (20 Of 30)

G09127689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

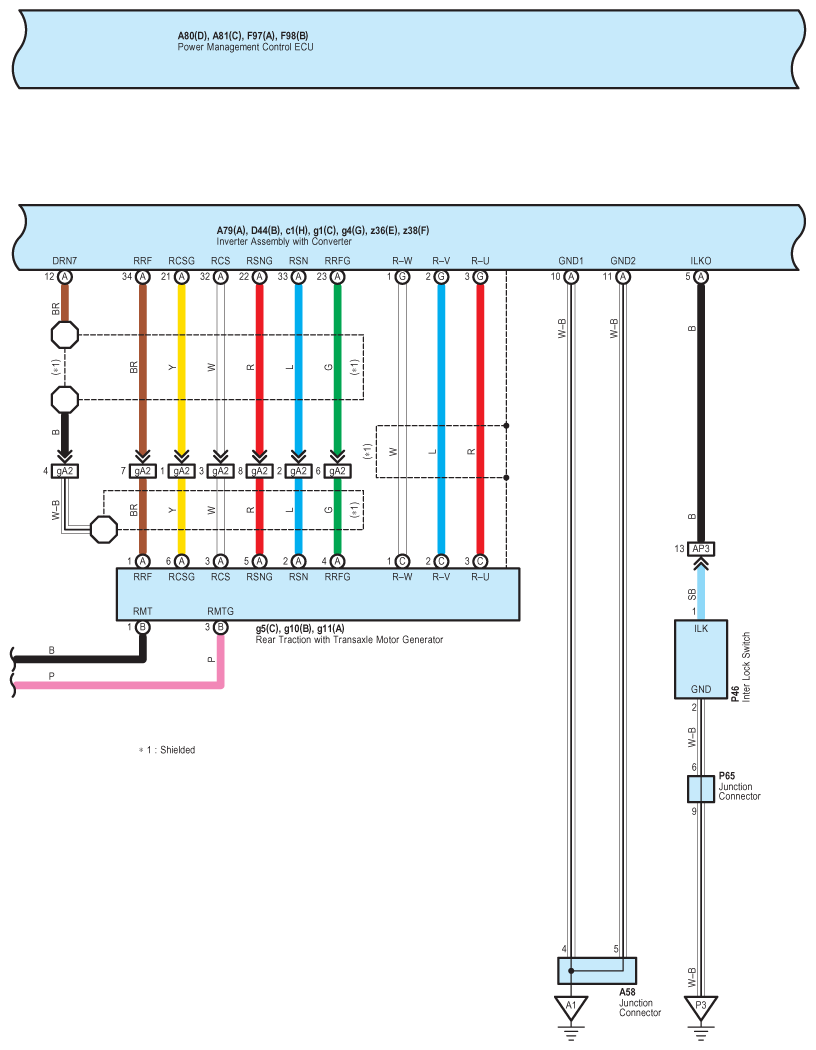

Fig 21: Hybrid System Wiring Diagram (21 Of 30)

G09127690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

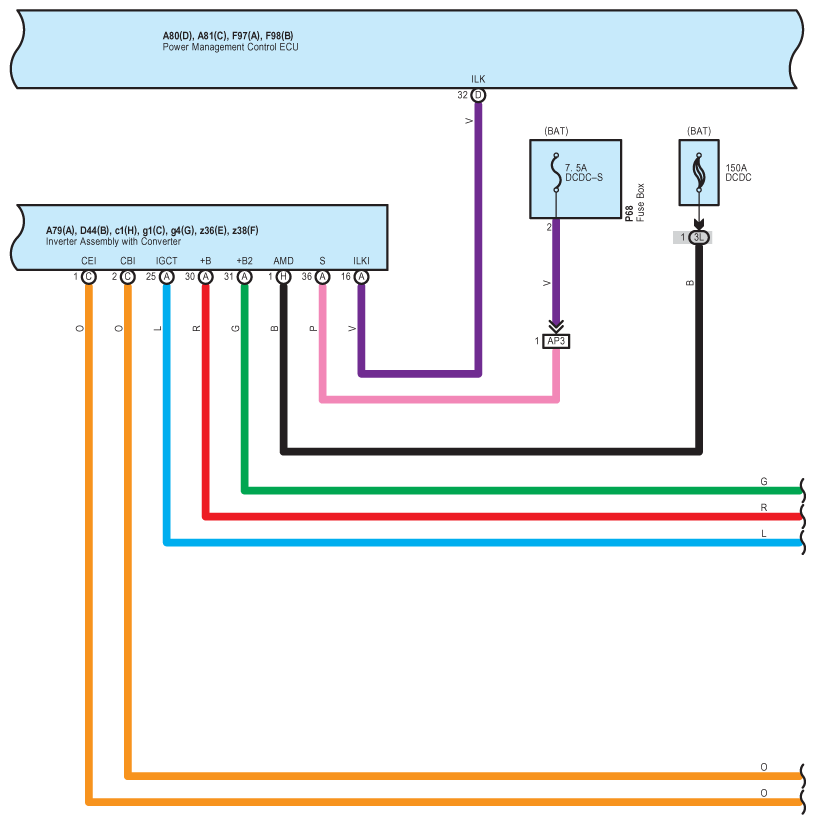

Fig 22: Hybrid System Wiring Diagram (22 Of 30)

G09127691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

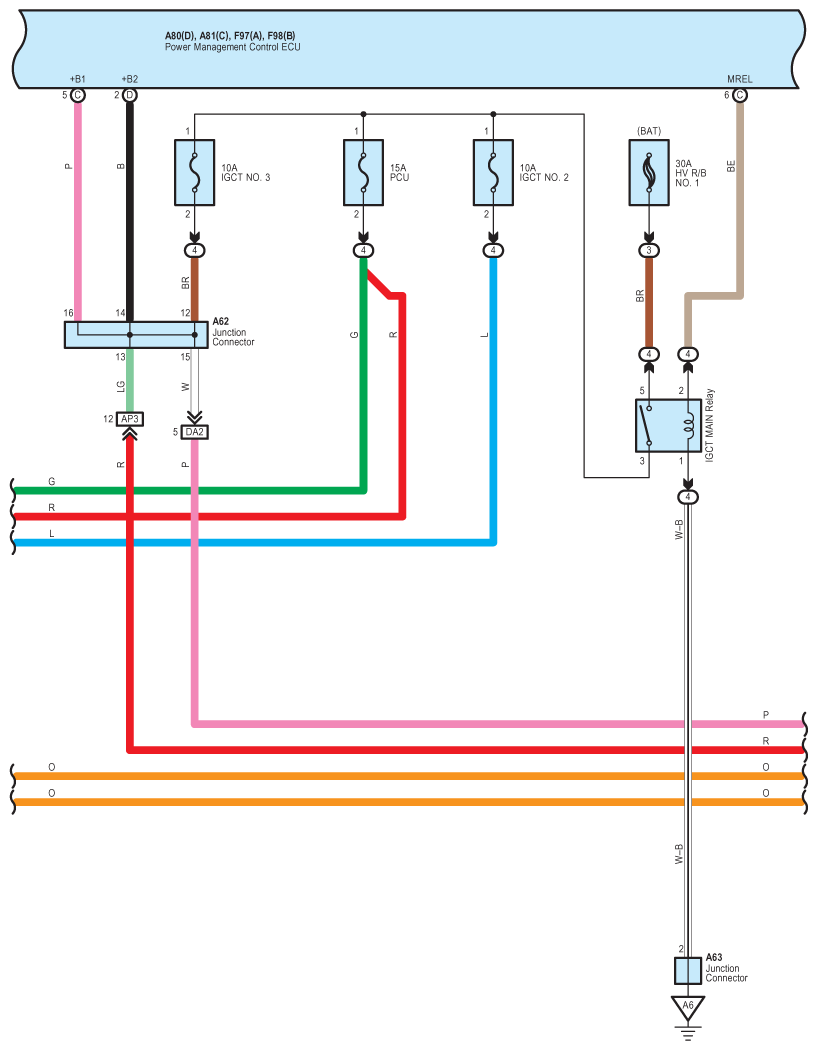

Fig 23: Hybrid System Wiring Diagram (23 Of 30)

G09127692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

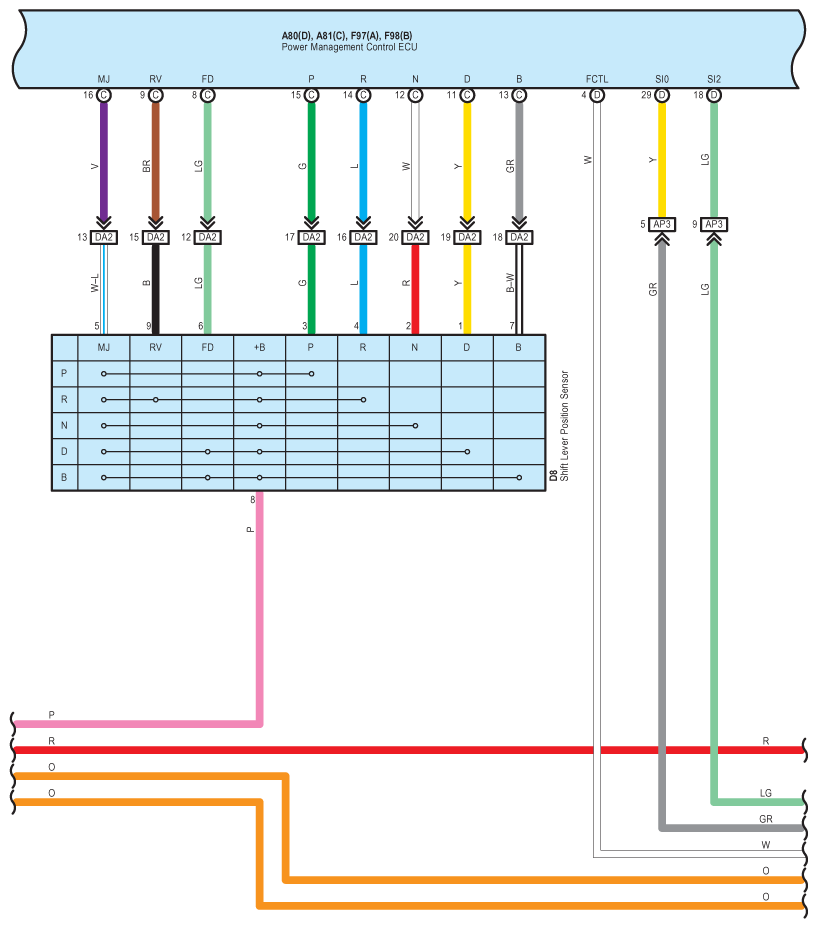

Fig 24: Hybrid System Wiring Diagram (24 Of 30)

G09127693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

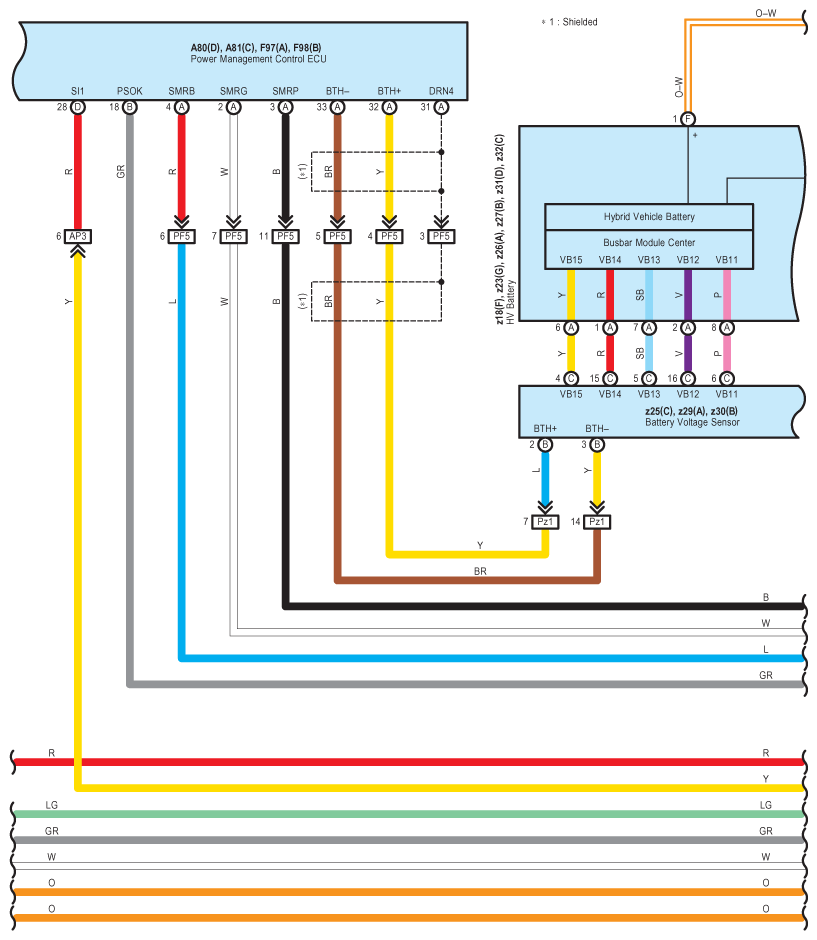

Fig 25: Hybrid System Wiring Diagram (25 Of 30)

G09127694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

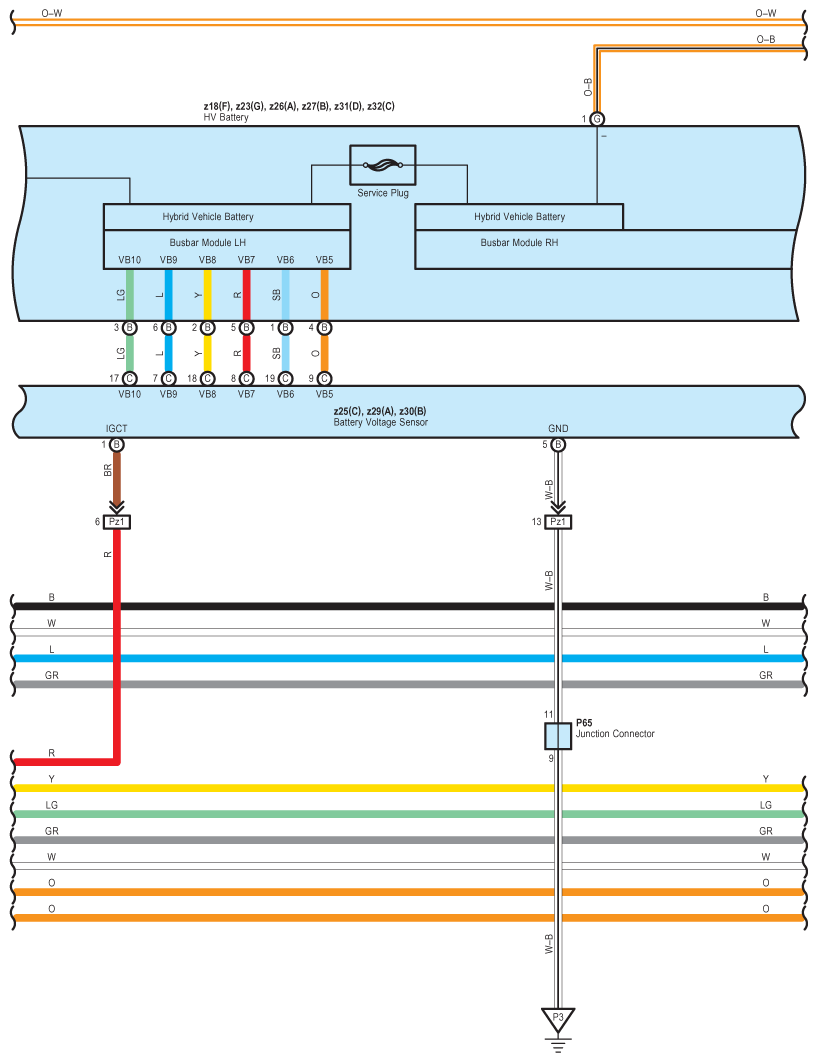

Fig 26: Hybrid System Wiring Diagram (26 Of 30)

G09127695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

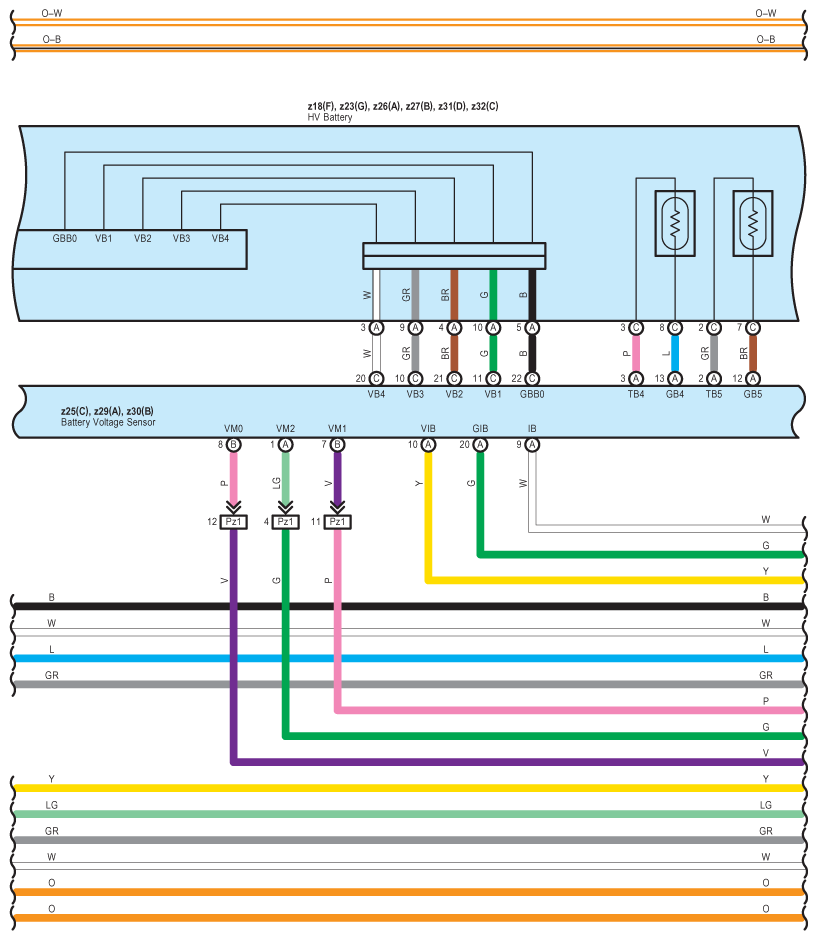

Fig 27: Hybrid System Wiring Diagram (27 Of 30)

G09127696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

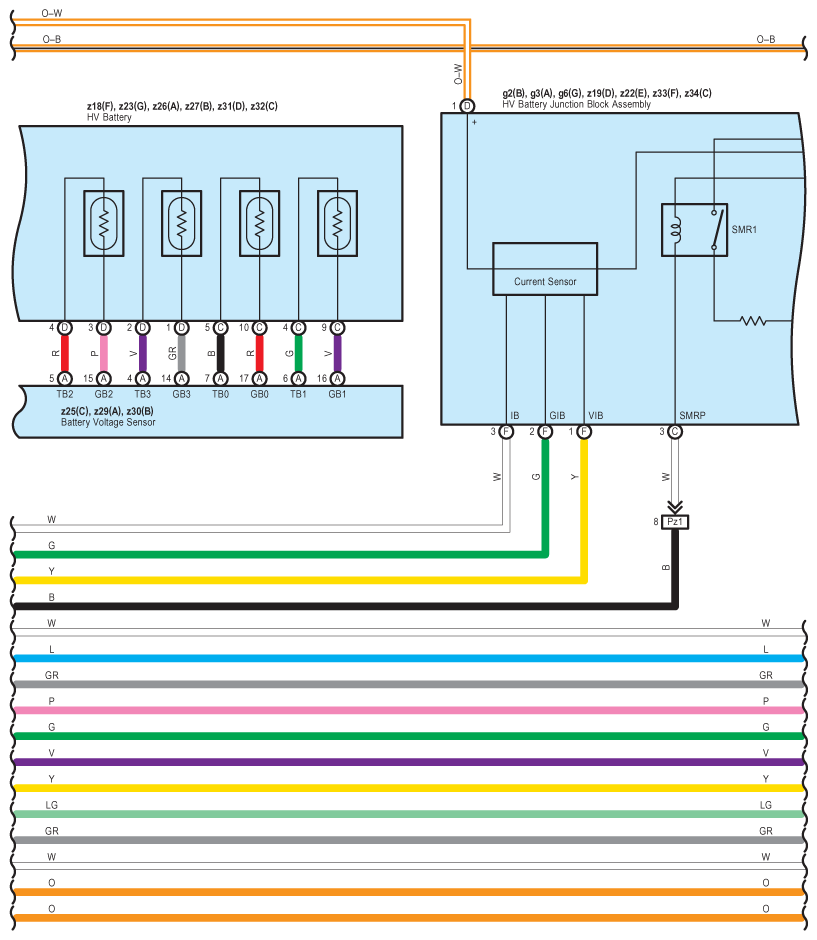

Fig 28: Hybrid System Wiring Diagram (28 Of 30)

G09127697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

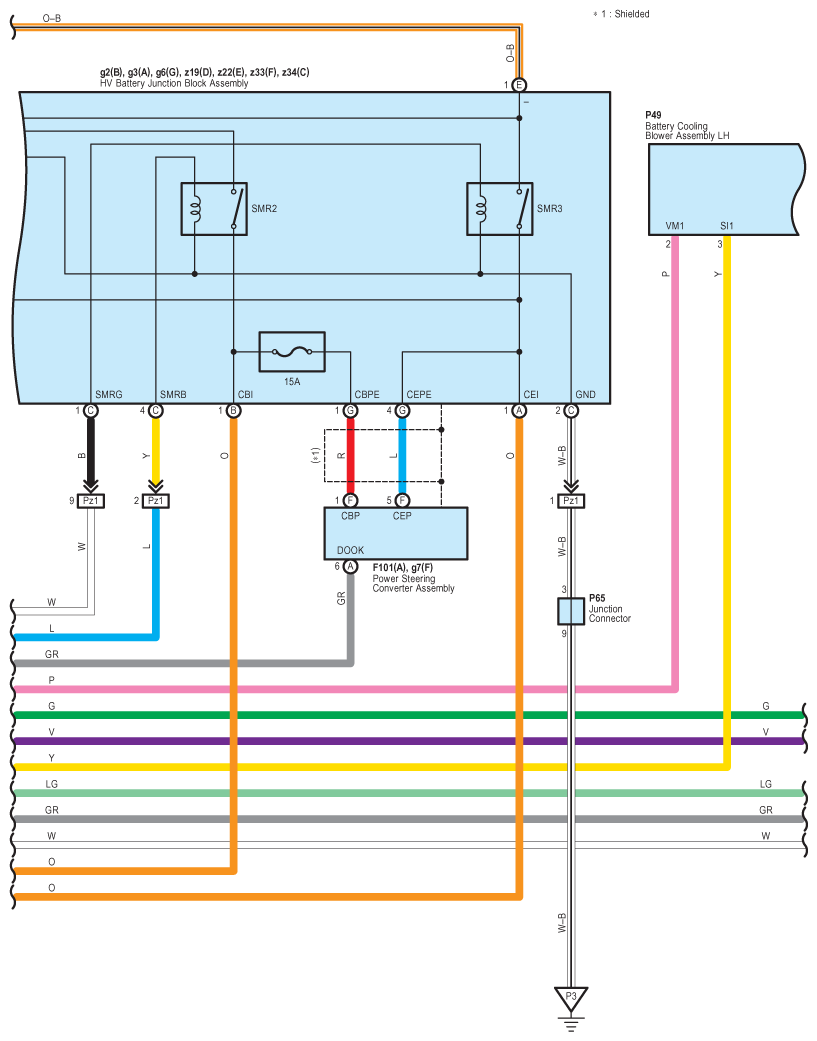

Fig 29: Hybrid System Wiring Diagram (29 Of 30)

G09127698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

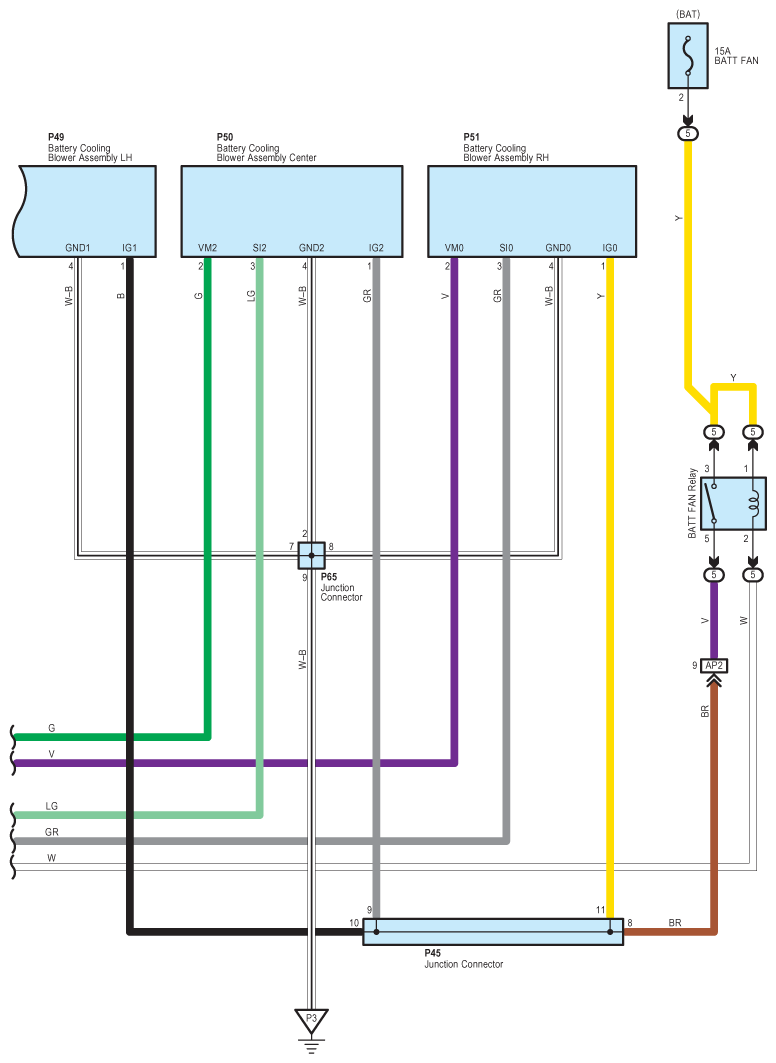

Fig 30: Hybrid System Wiring Diagram (30 Of 30)

G09127699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
