Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control: Notes

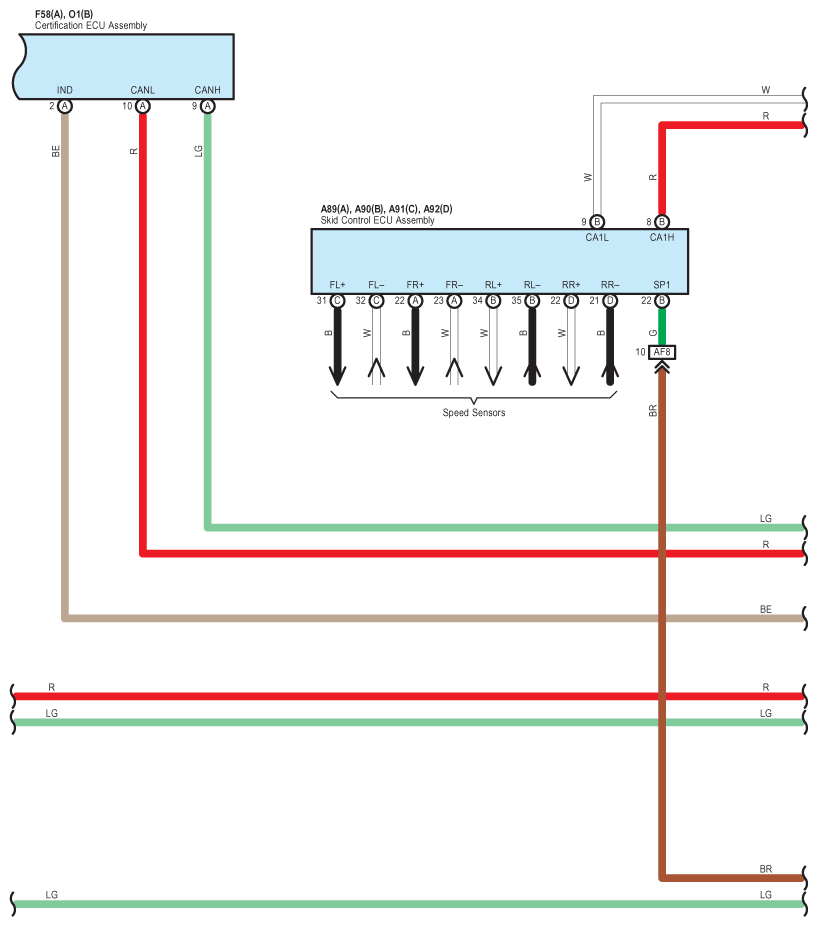

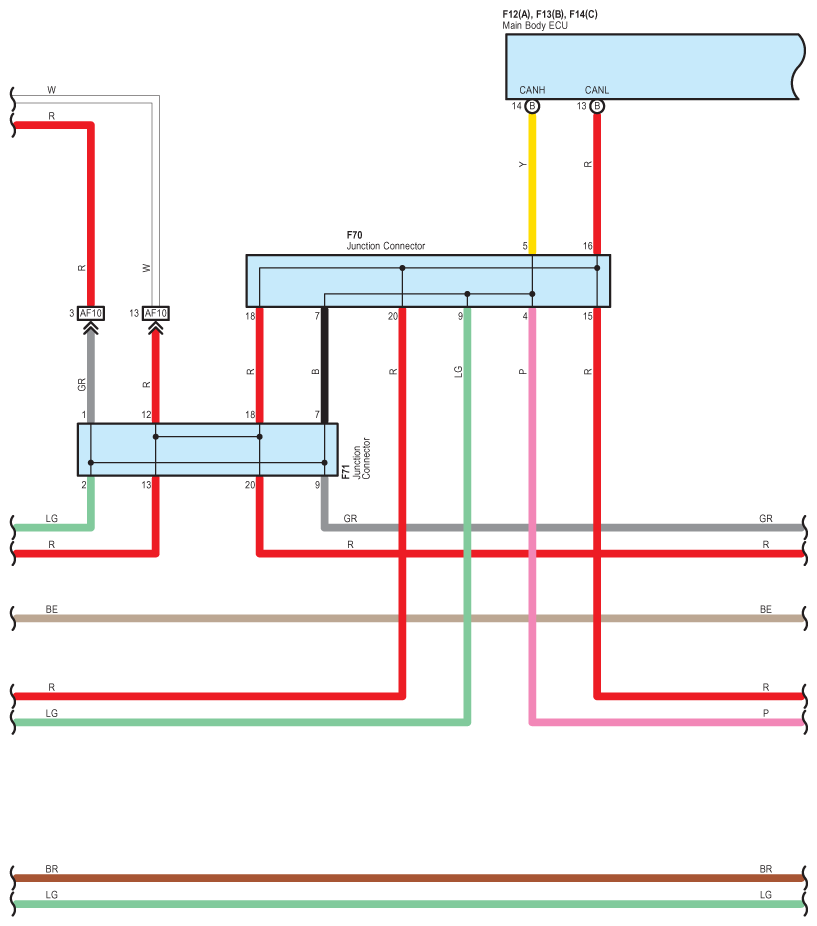

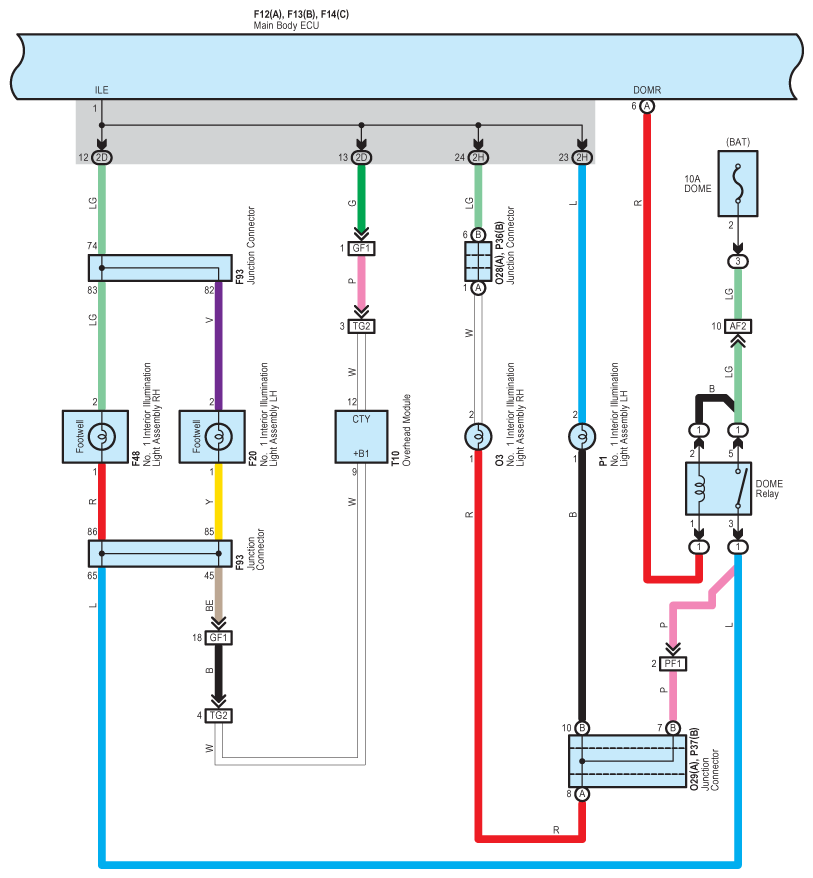

Fig 1: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (1 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

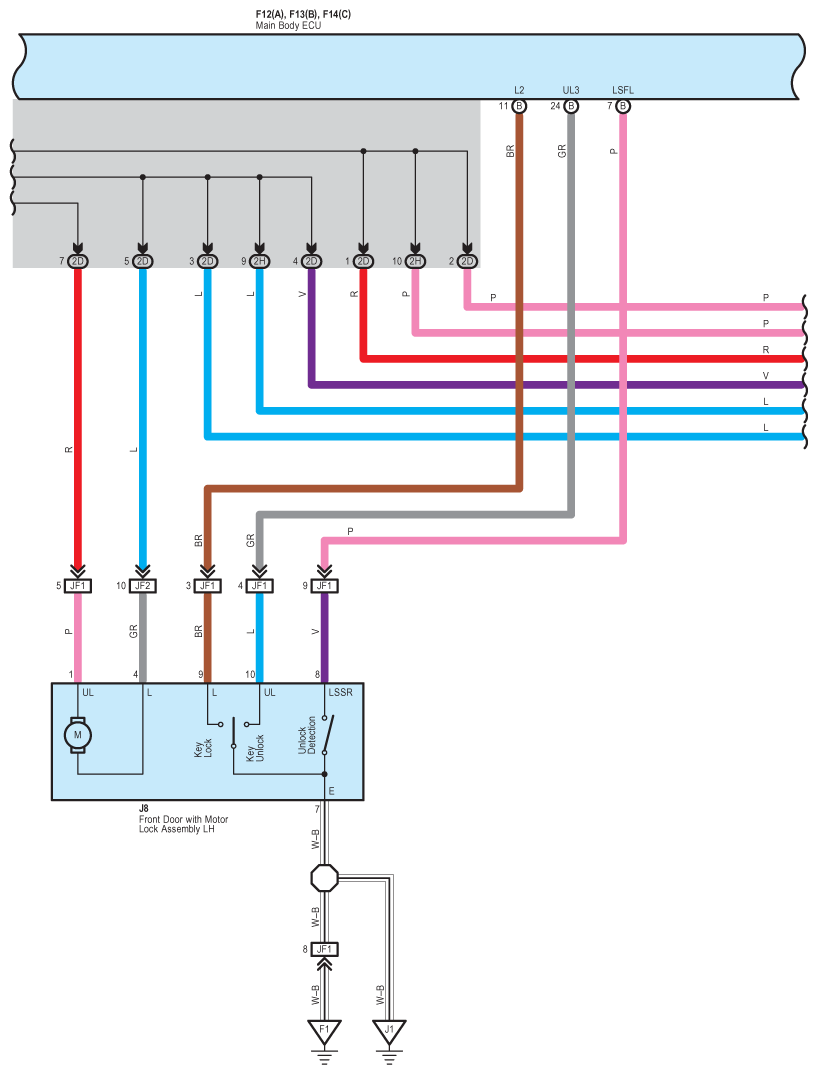

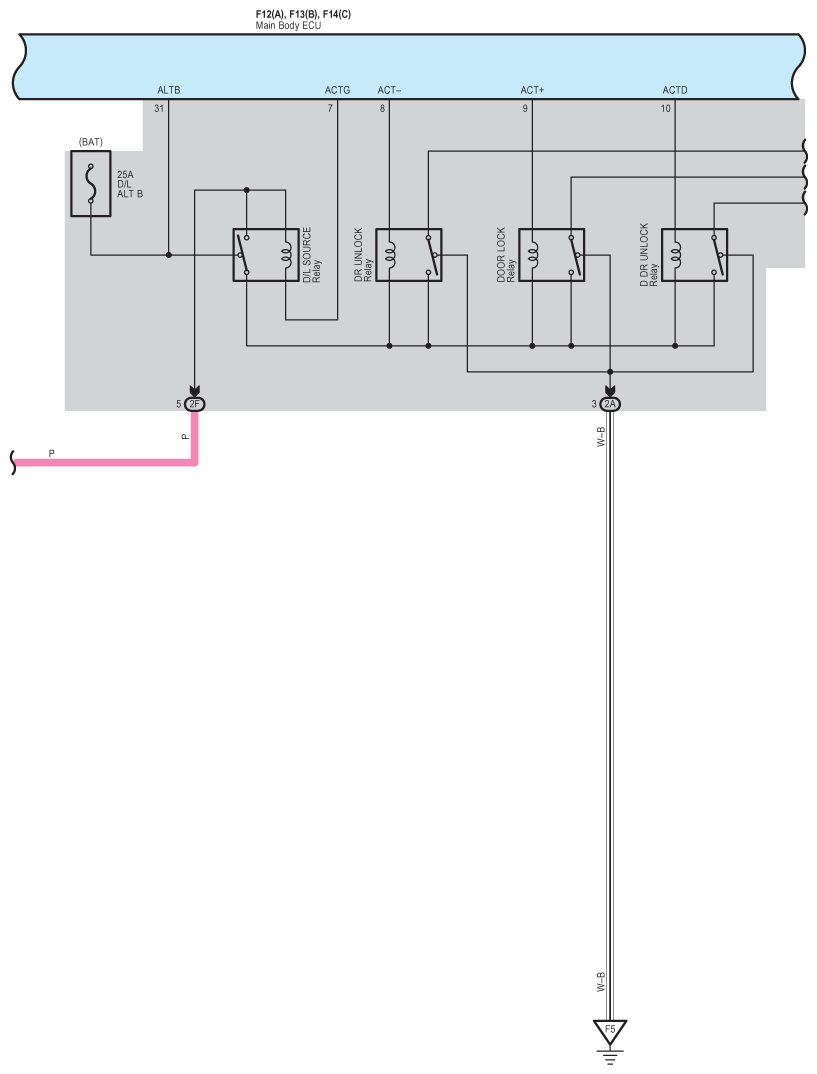

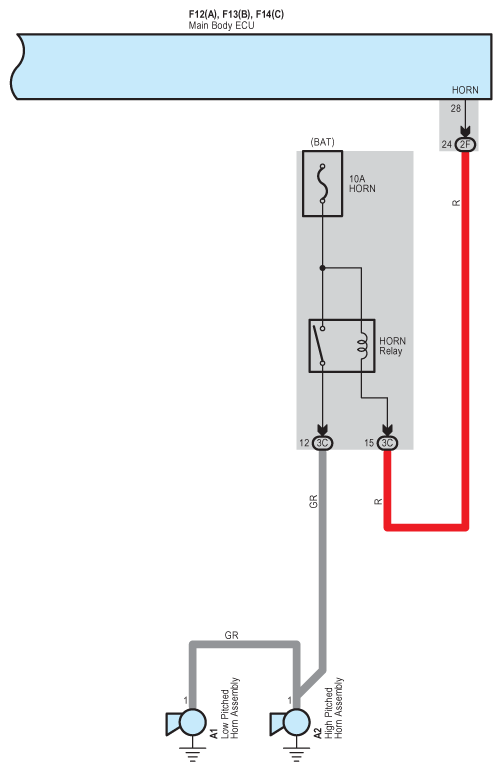

Fig 2: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (2 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

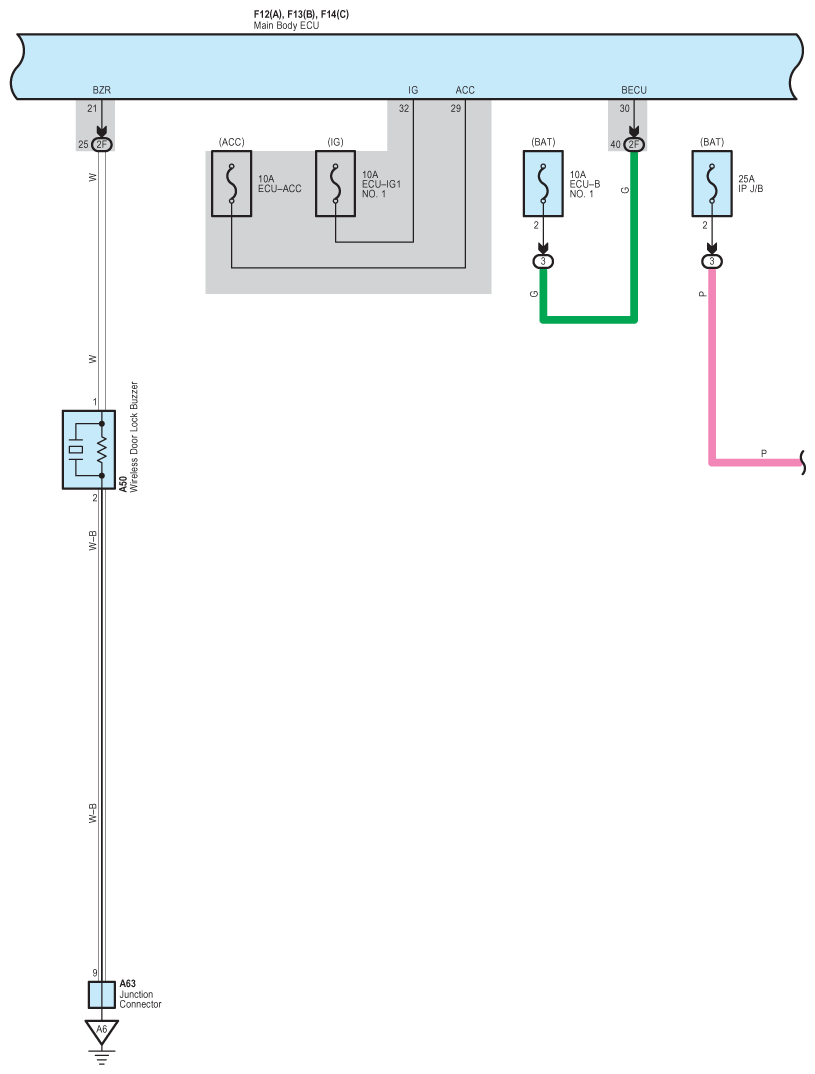

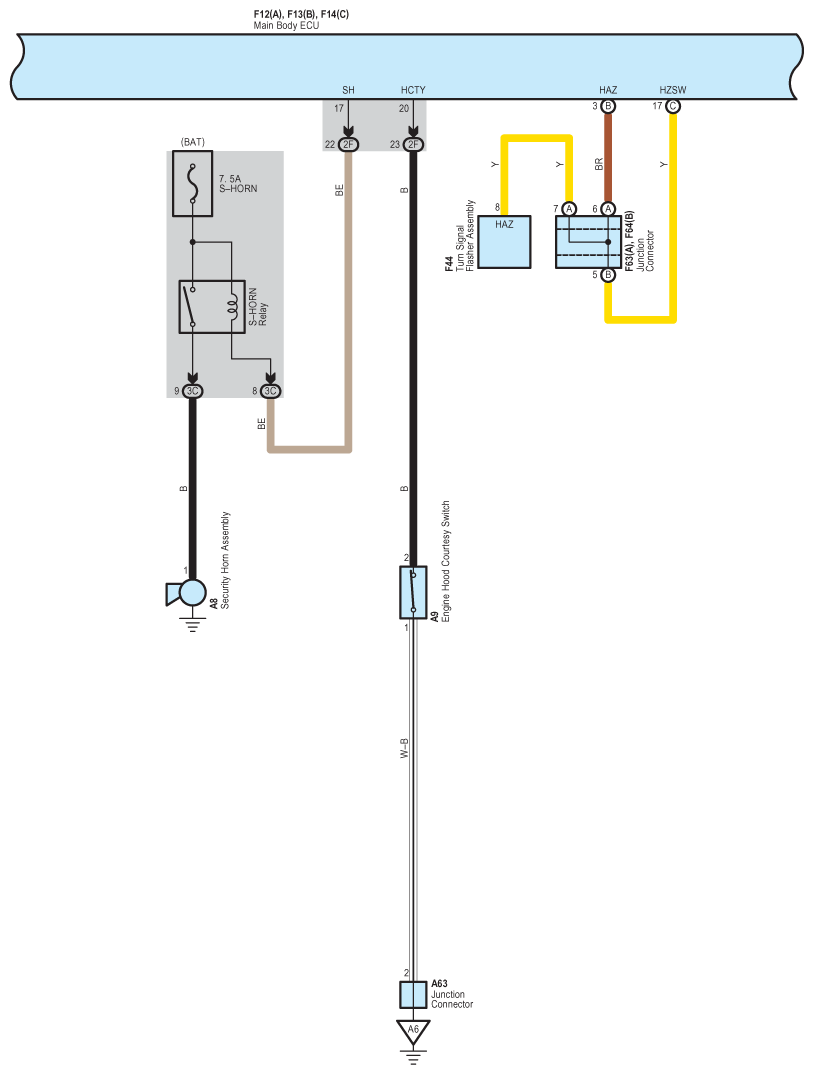

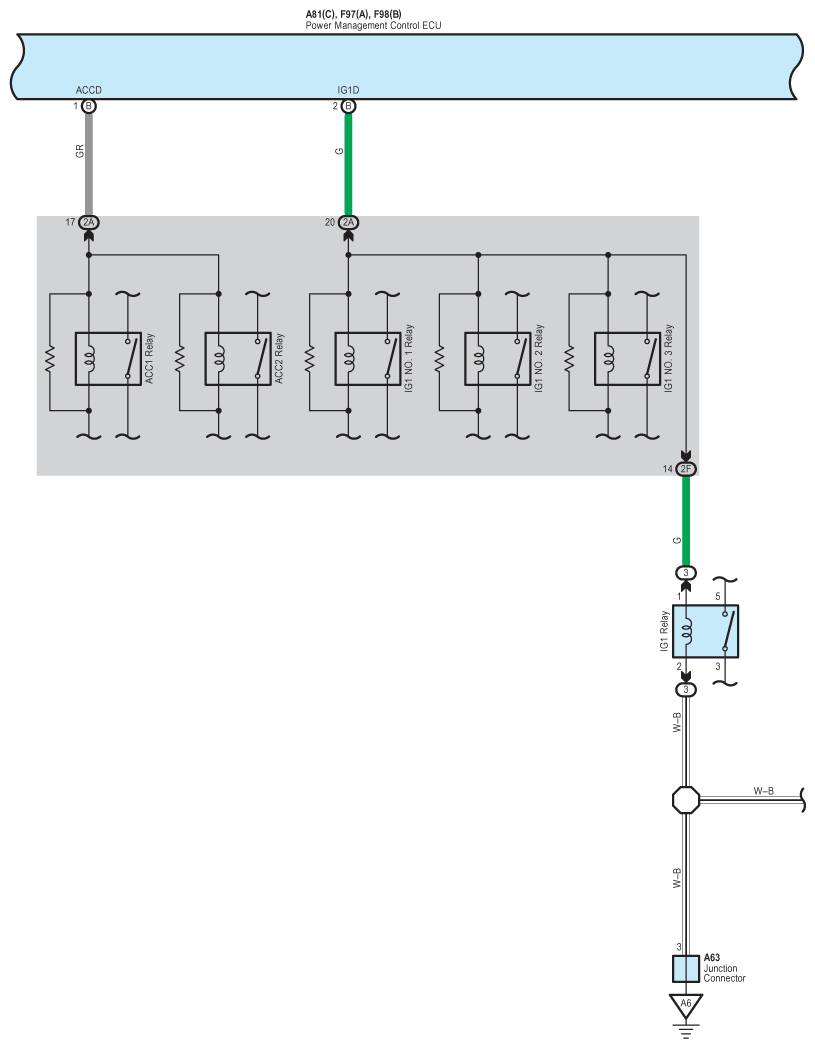

Fig 3: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (3 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

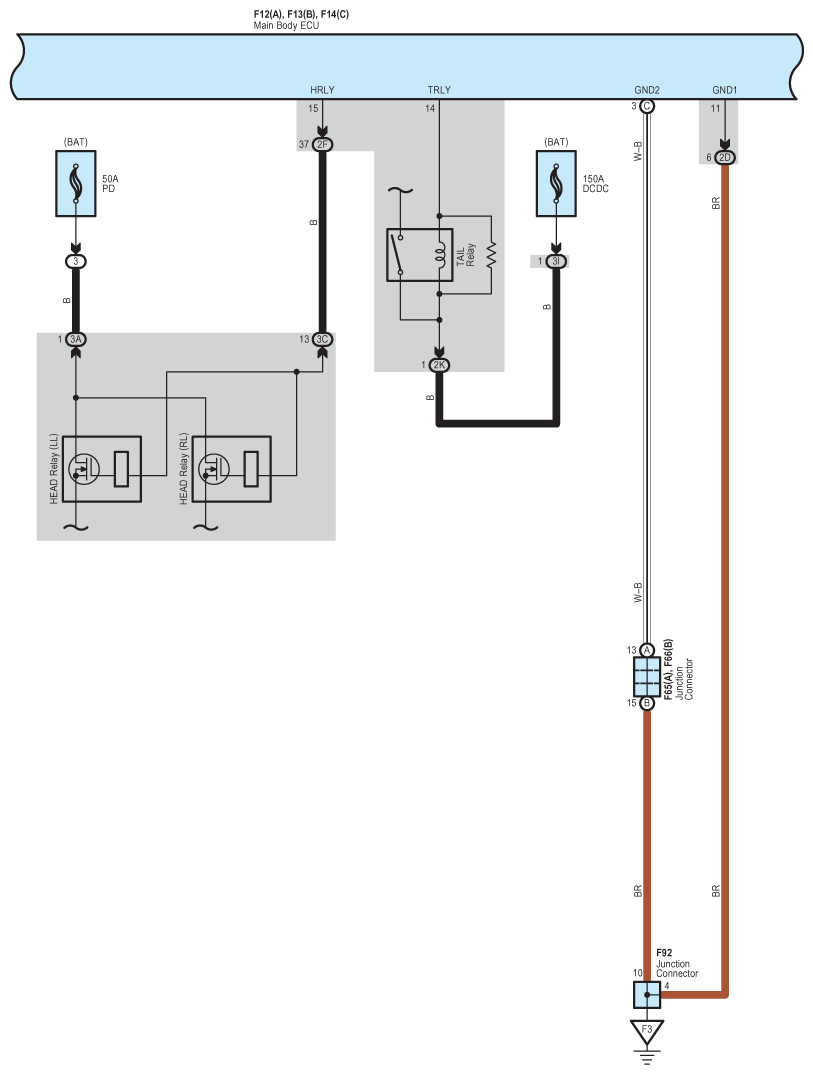

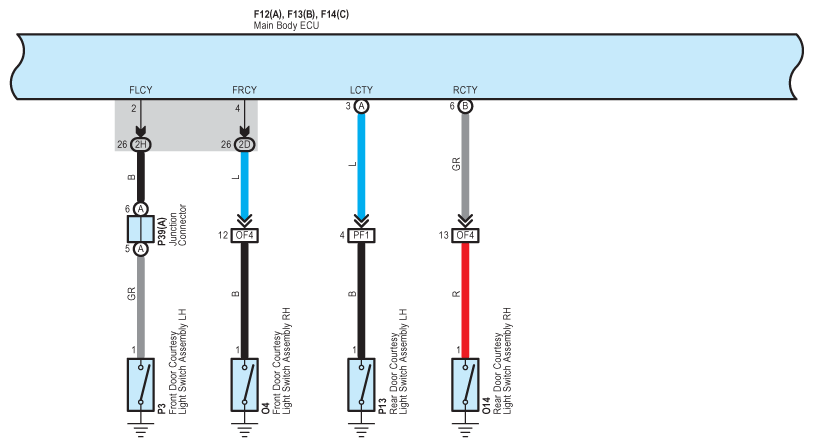

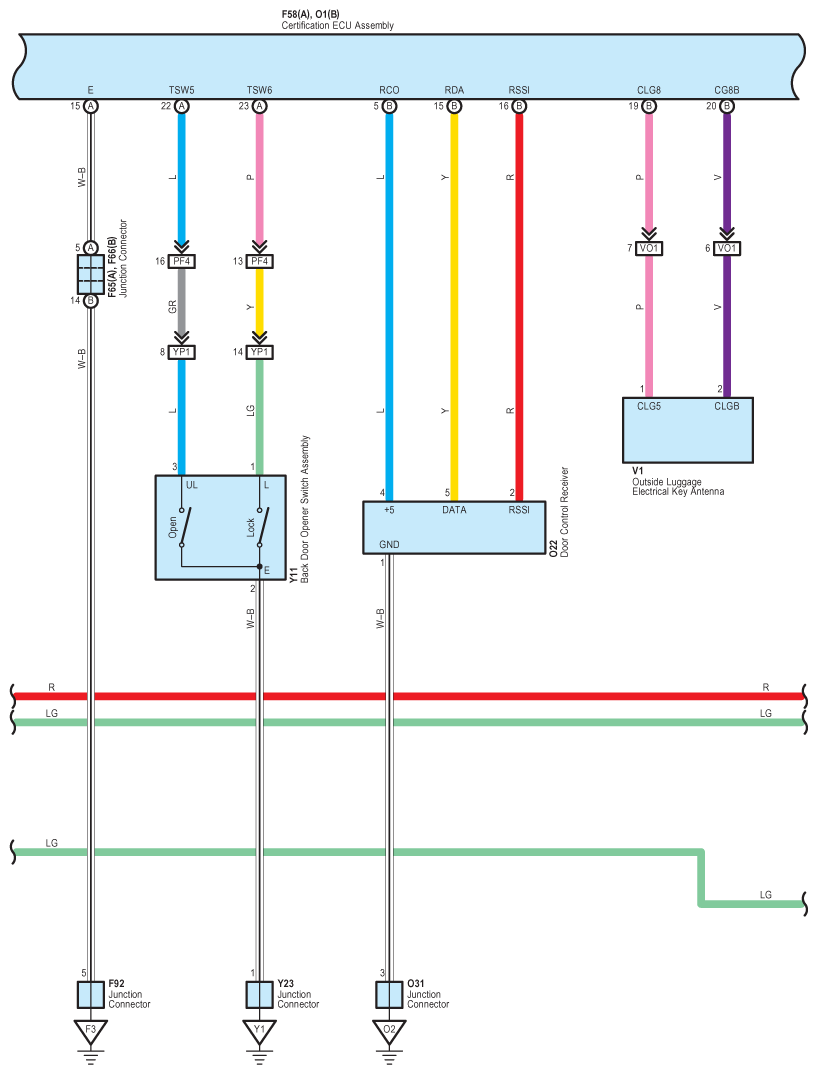

Fig 4: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (4 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

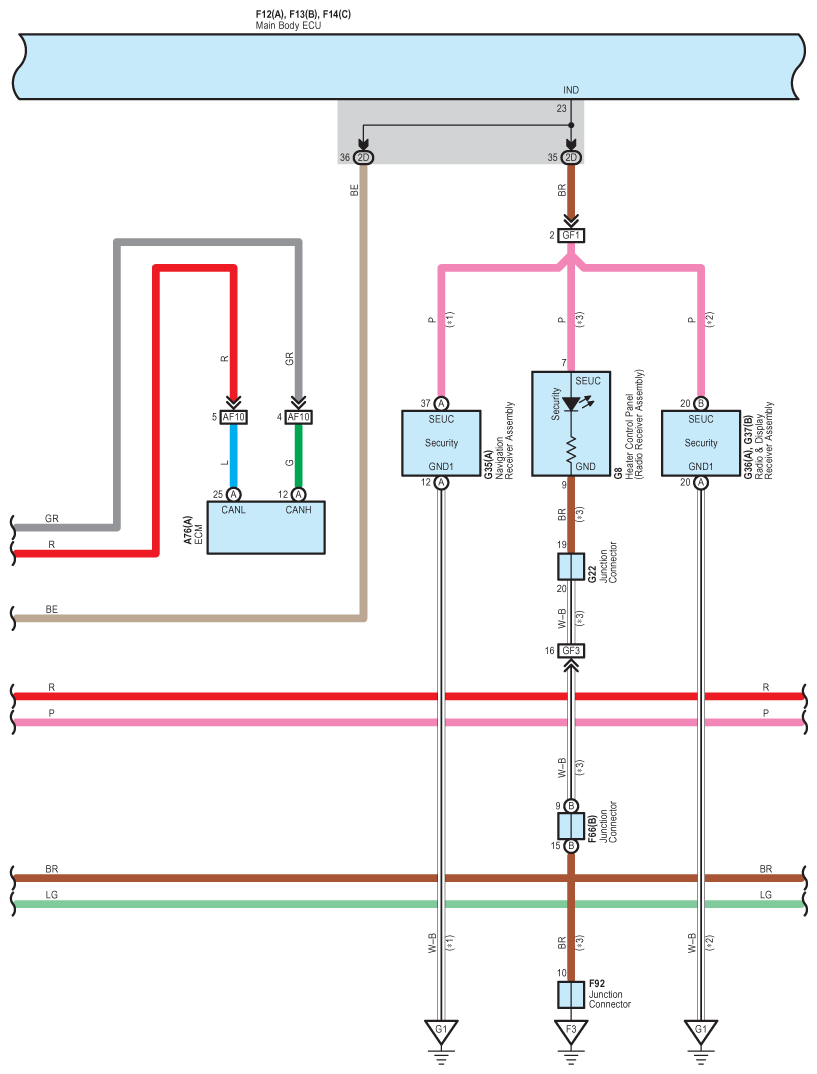

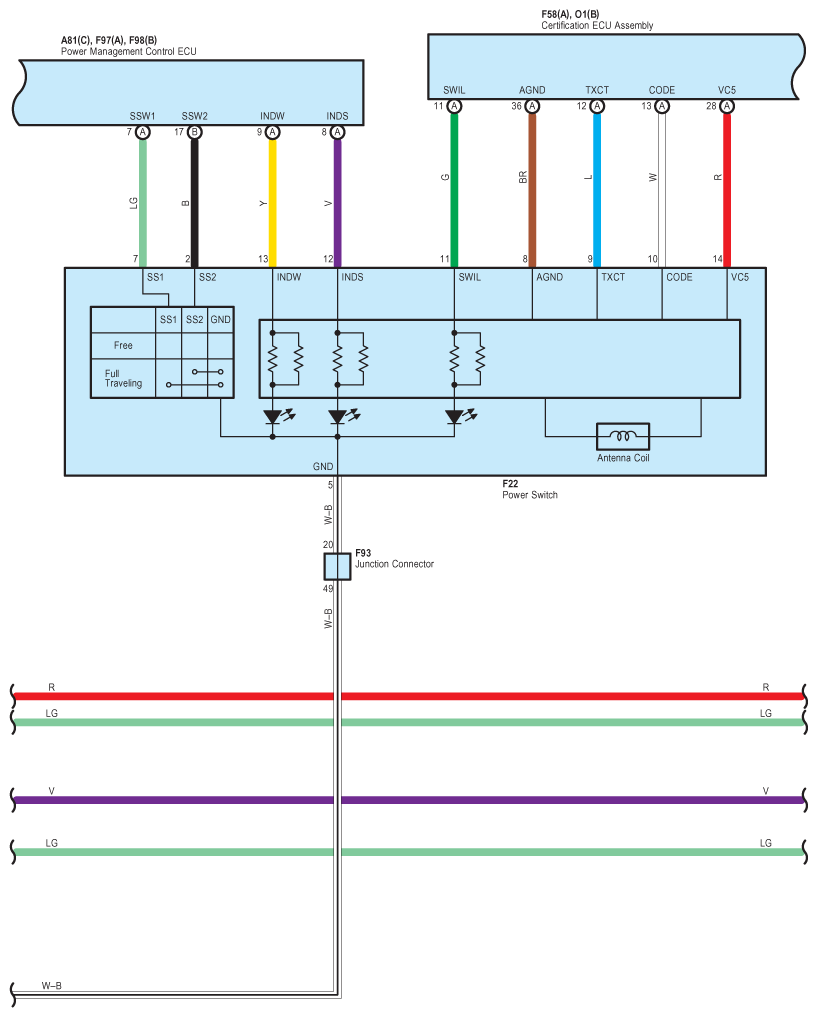

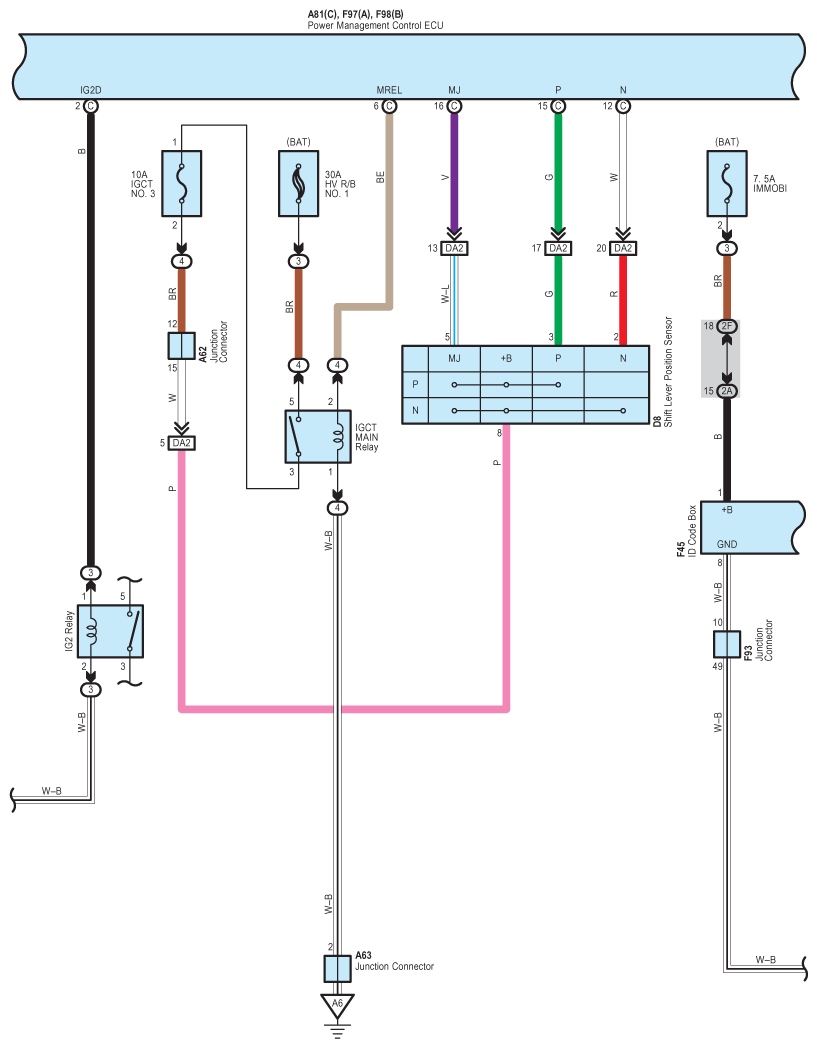

Fig 5: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (5 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

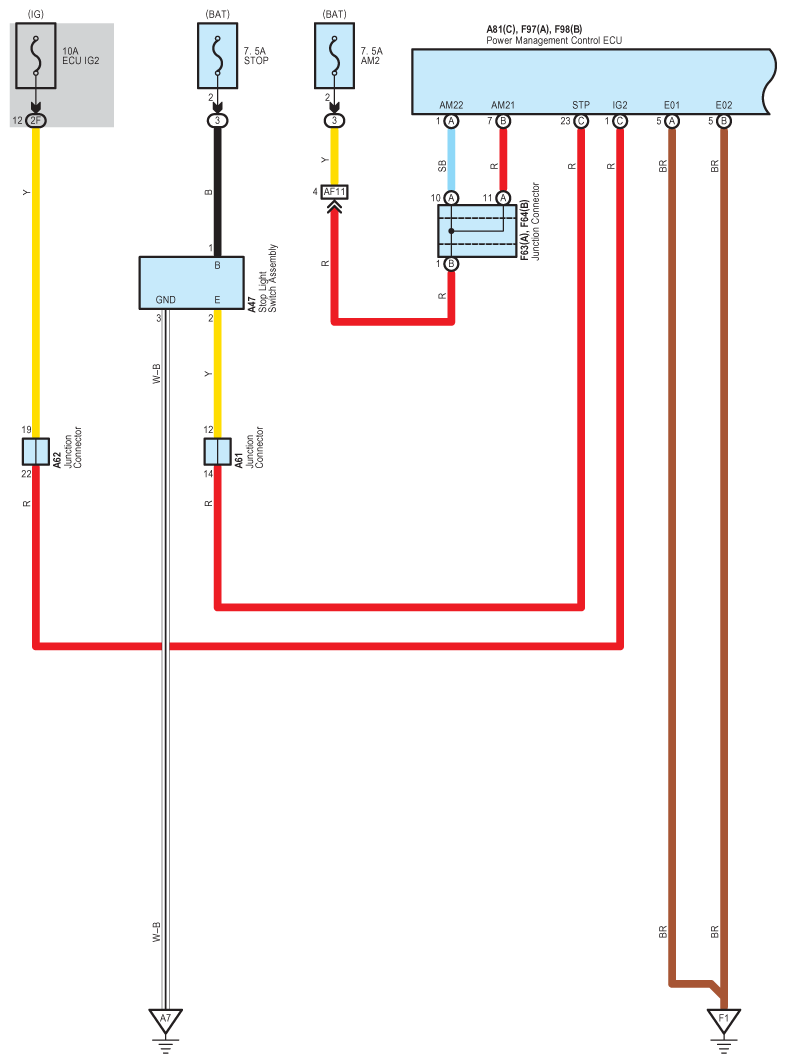

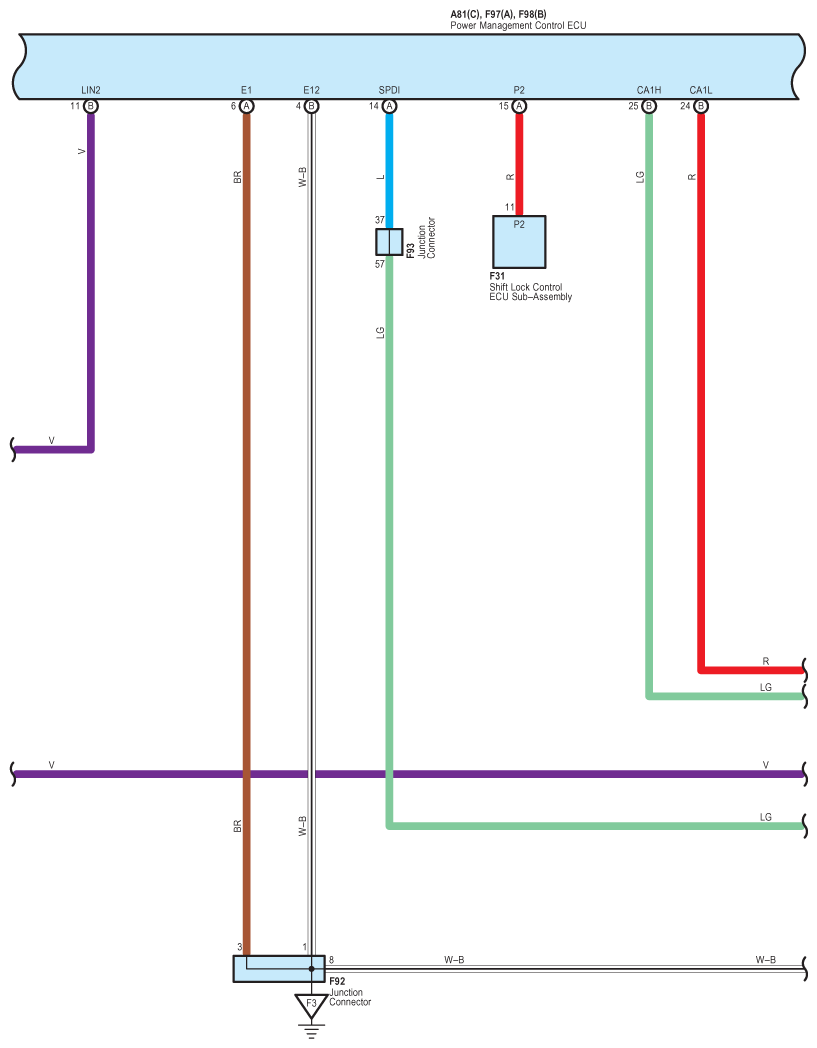

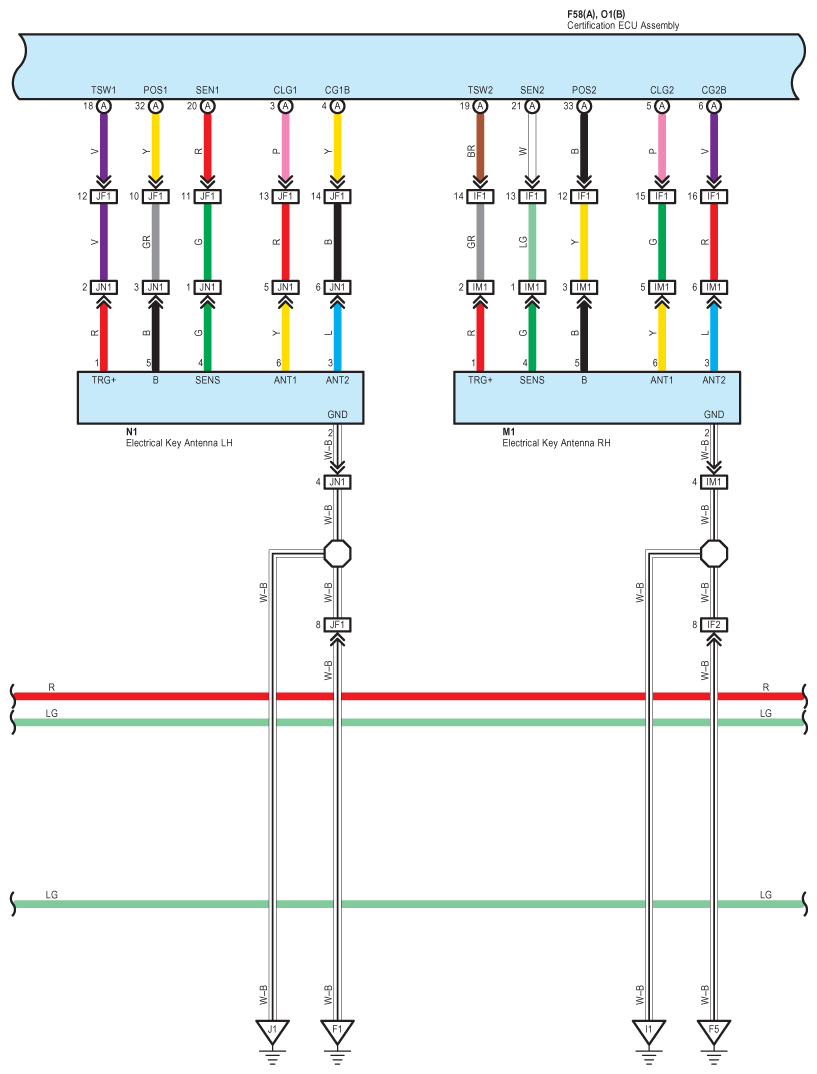

Fig 6: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (6 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

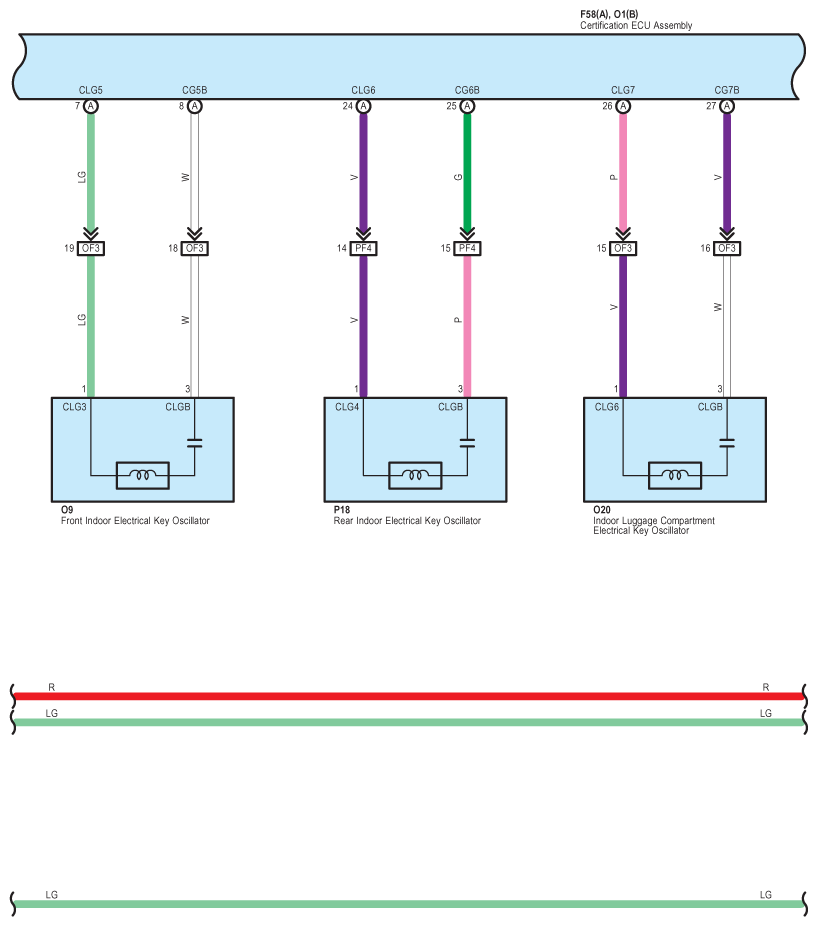

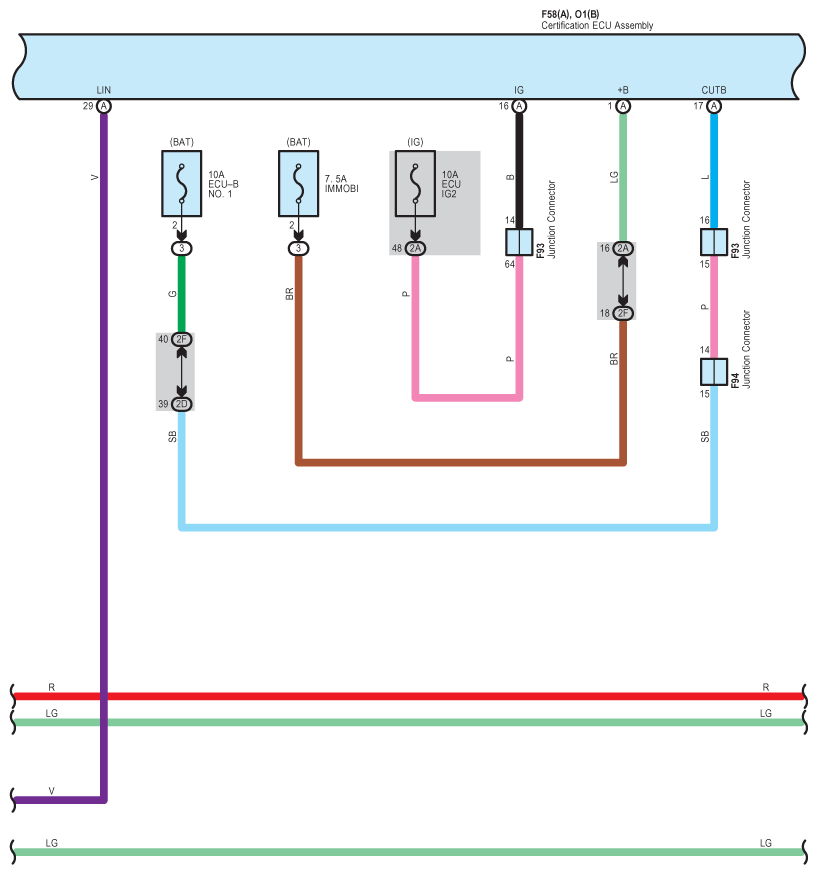

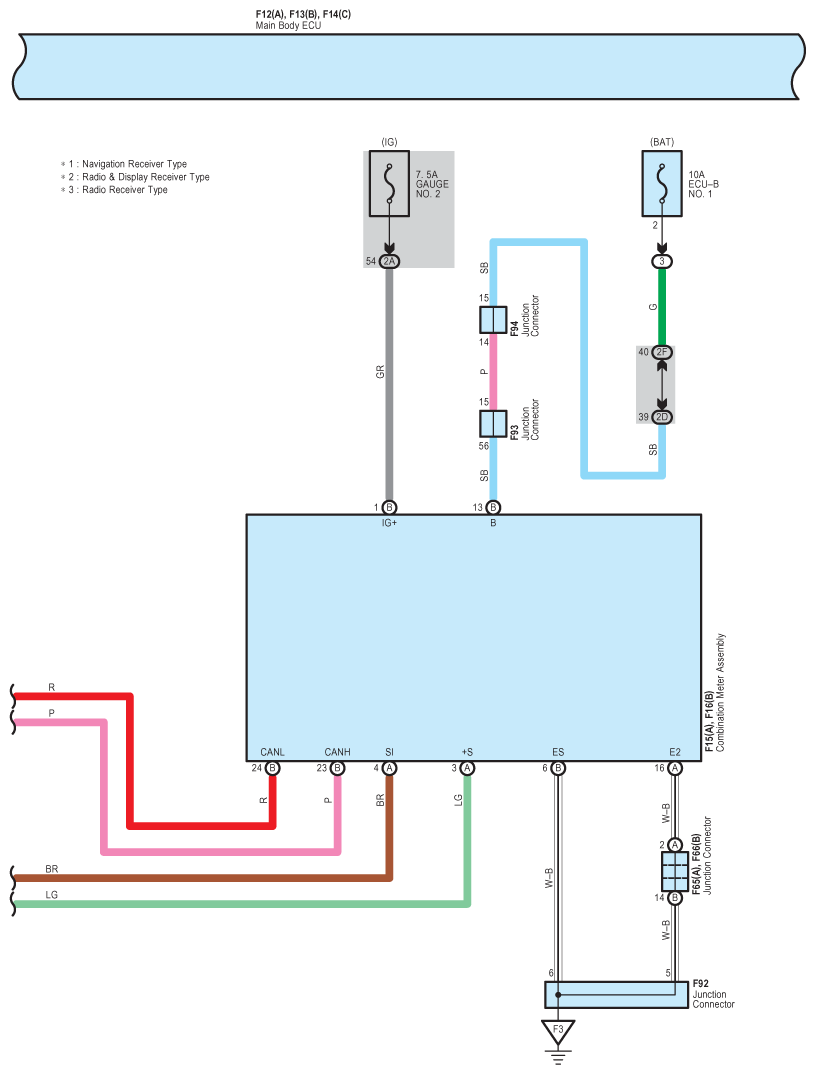

Fig 7: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (7 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

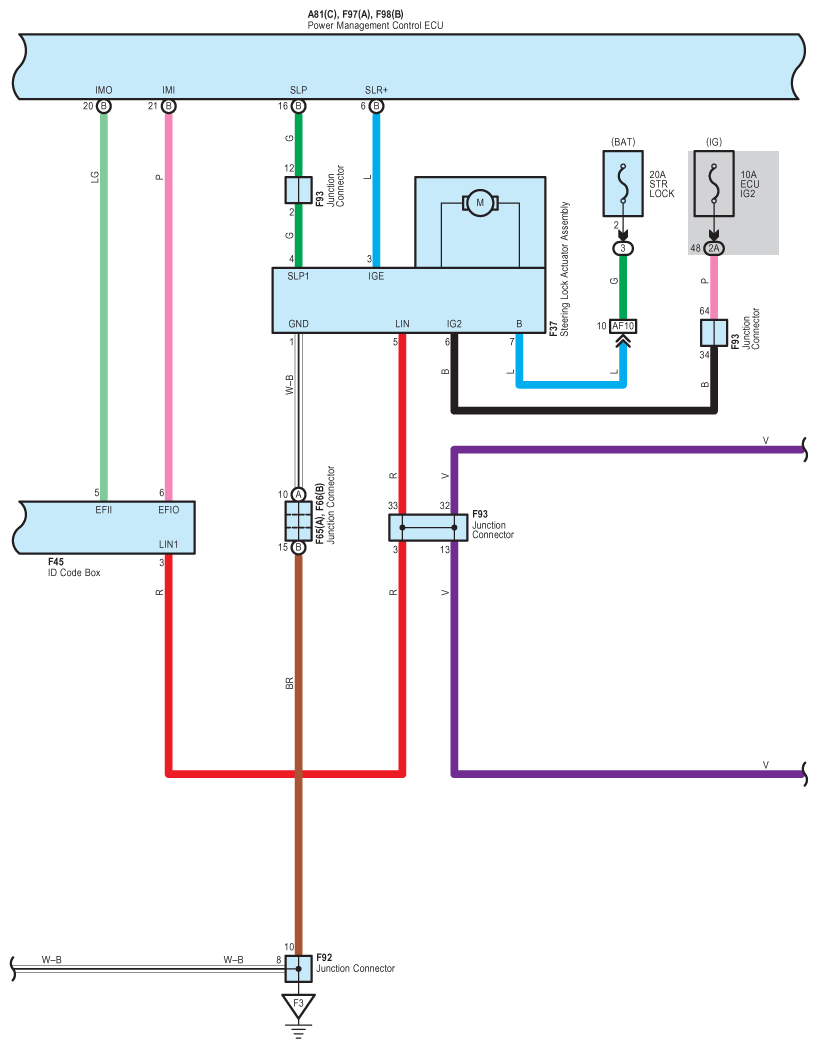

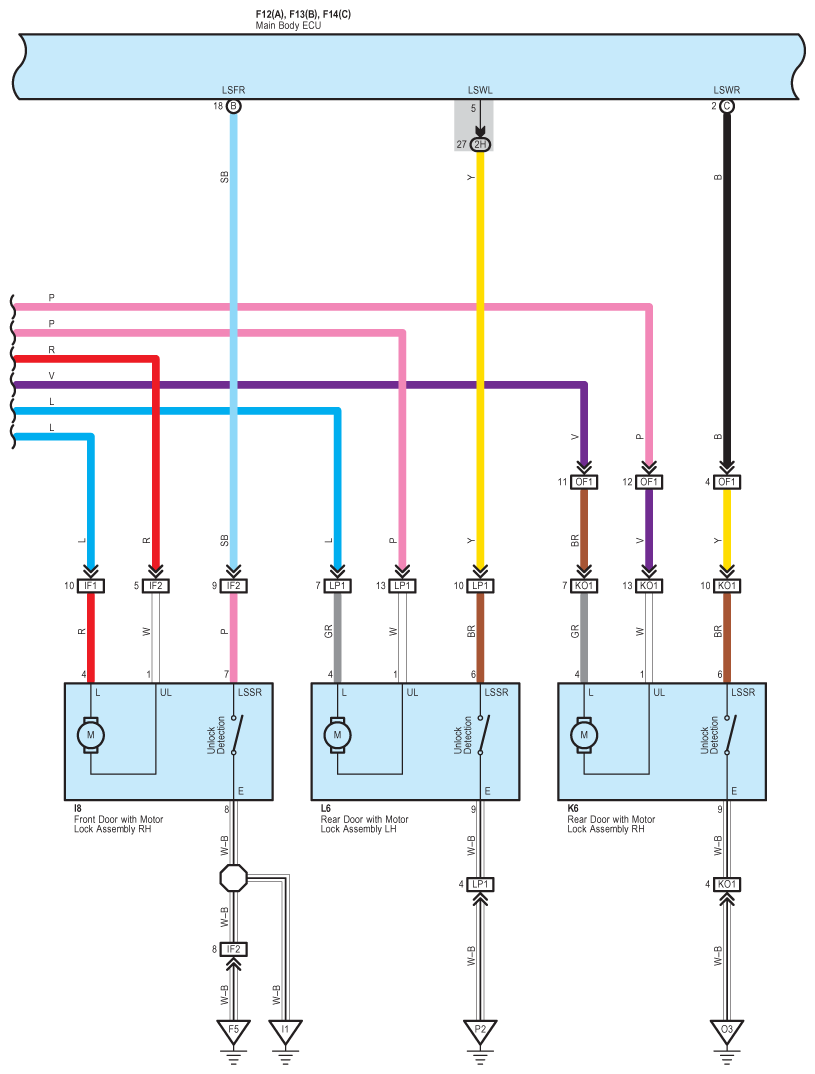

Fig 8: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (8 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (9 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (10 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (11 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (12 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (13 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (14 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (15 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (16 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (17 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (18 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (19 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (20 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (21 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (22 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Engine Immobilizer, Smart Access, Starting, Steering Lock And Wireless Door Lock (W/Smart Key) System Wiring Diagram (23 Of 23)
