OEM System Circuits: EPS: Notes

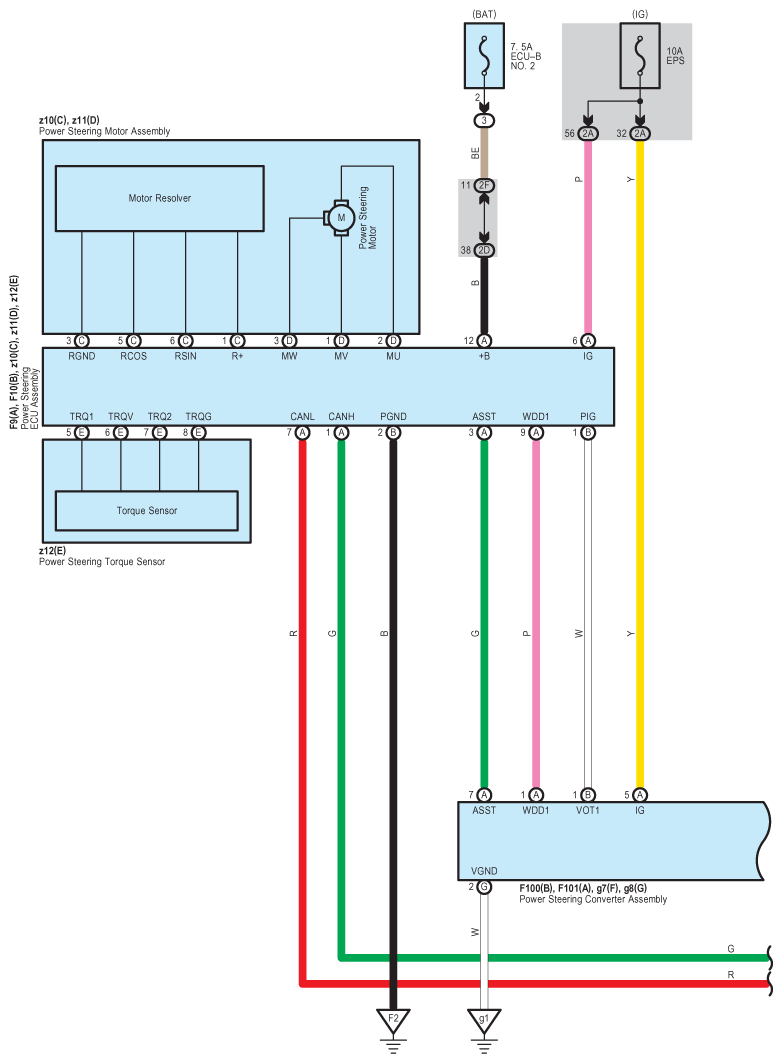

Fig 1: EPS System Wiring Diagram (1 Of 5)

G09127798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

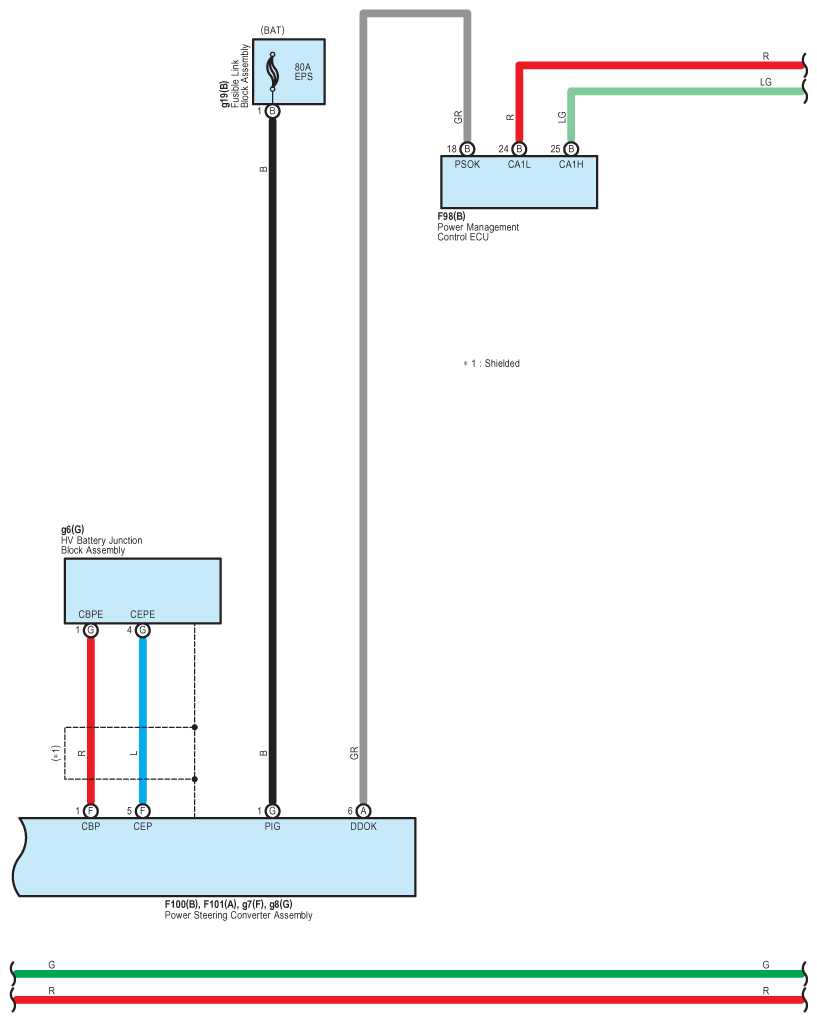

Fig 2: EPS System Wiring Diagram (2 Of 5)

G09127799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

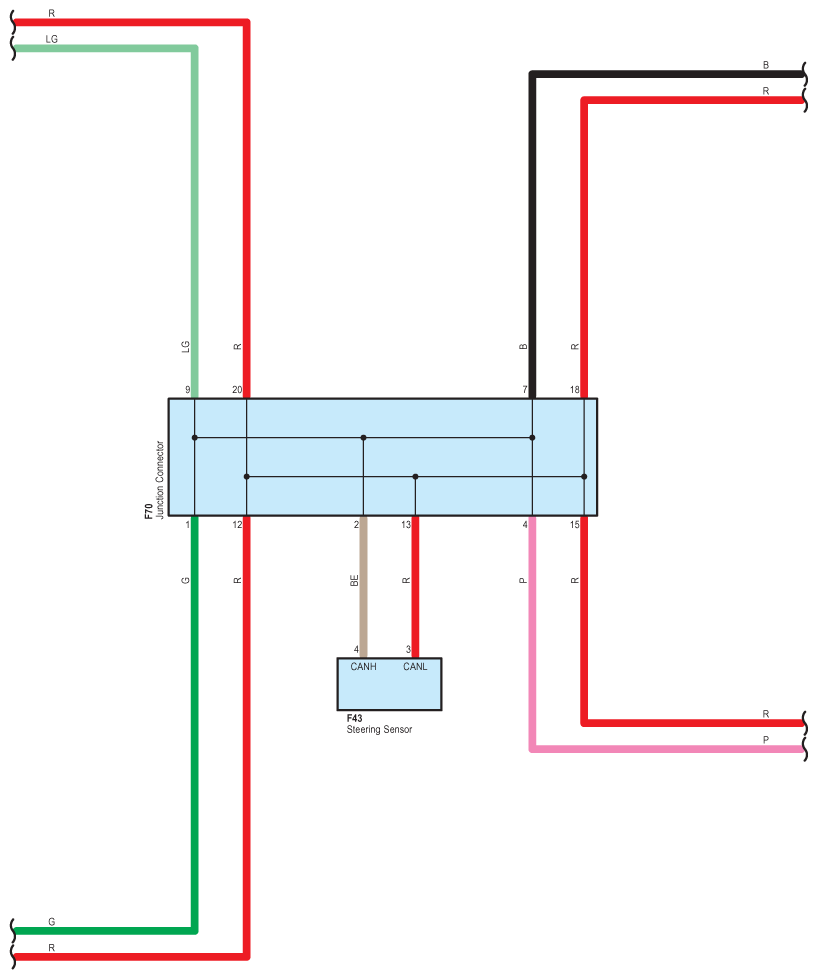

Fig 3: EPS System Wiring Diagram (3 Of 5)

G09127800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

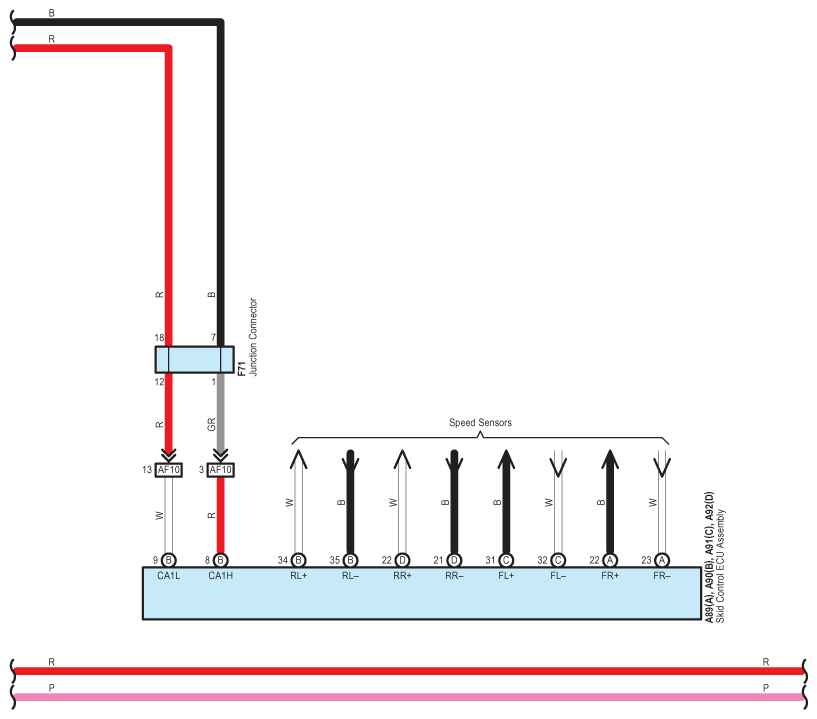

Fig 4: EPS System Wiring Diagram (4 Of 5)

G09127801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

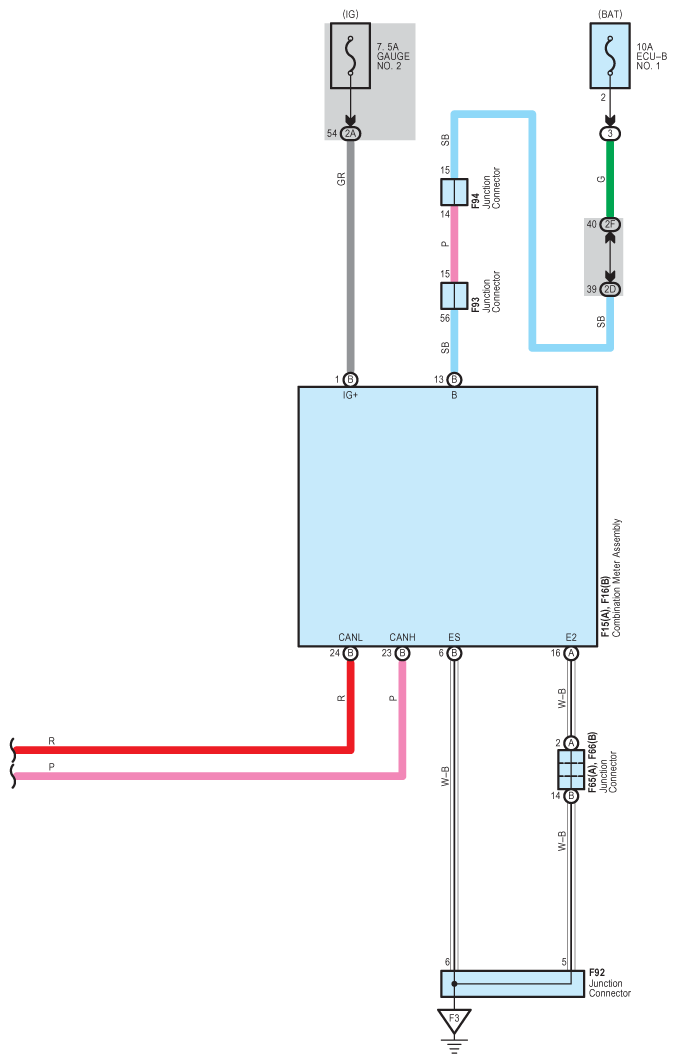

Fig 5: EPS System Wiring Diagram (5 Of 5)

G09127802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
