Installation [07/2012 - ]

1. Install the front engine mounting insulator assembly with the 3 nuts and hole plug.

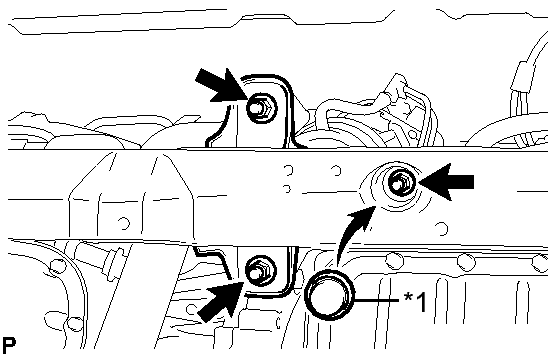

   Fig 1: Identifying Front Engine Mounting Insulator Assembly Nuts, Cap & Hole Plug

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

   TEXT IN ILLUSTRATION



   *1

   Hole Plug

2. Connect the duty vacuum switching valve connector and wire harness clamp.
3. Connect the vacuum hose to the air cleaner assembly.
4. Connect the vacuum hose to the 3 way.
5. Install the bolt of the front engine mounting insulator assembly.

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

6. Tighten the nut of the engine mounting insulator LH.

   Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

7. Using a union nut wrench 19 mm, tighten the nut of the engine mounting insulator RH.

   Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

   NOTE:

   Use the torque value compensation formula to calculate the torque value for use when a torque wrench is combined with a tool such as a union nut wrench. Refer to PRECAUTION [03/2012 - ] .

1. Install the front engine mounting insulator assembly with the 3 nuts and hole plug.
   Fig 2: Identifying Front Engine Mounting Insulator Assembly Nuts, Cap & Hole Plug

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

   TEXT IN ILLUSTRATION



   *1

   Hole Plug

2. Connect the duty vacuum switching valve connector and wire harness clamp.
3. Connect the vacuum hose to the air cleaner assembly.
4. Connect the vacuum hose to the 3 way.

1. Install the transverse engine mounting bracket with the 4 bolts.

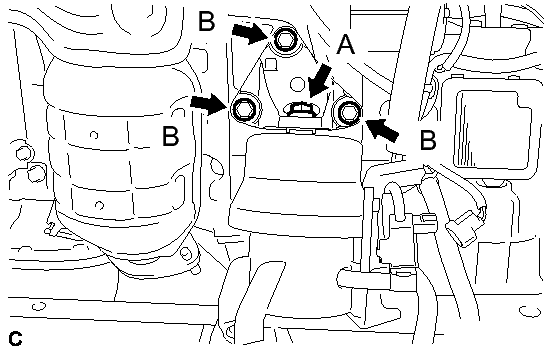

   Fig 3: Identifying Transverse Engine Mounting Bracket Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

   for the bolt (A)

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

   for the bolt (B)

Refer to INSTALLATION [07/2012 - ]
