Garage Door Opener: Notes

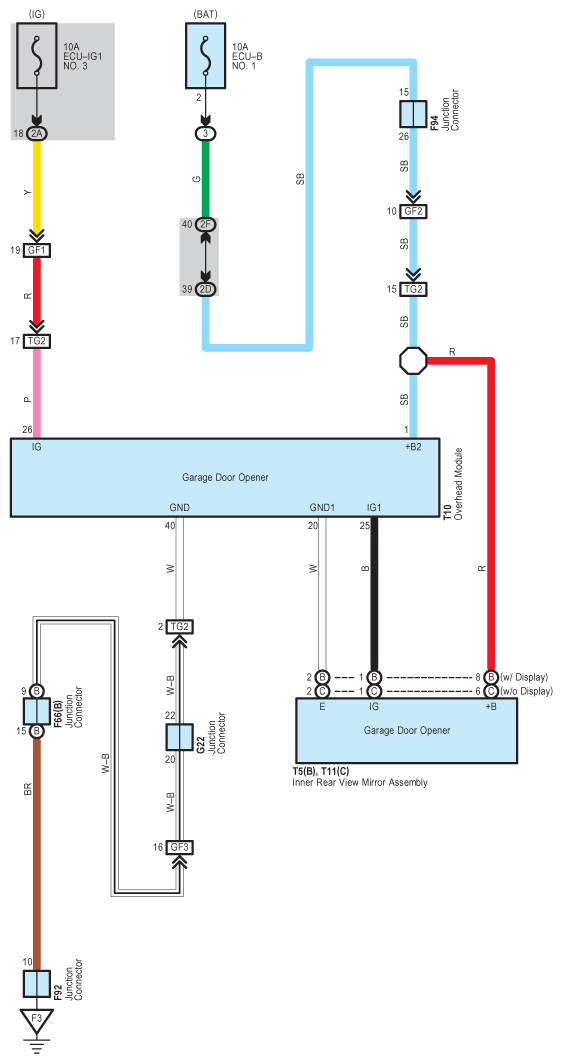

Fig 1: Garage Door Opener System Wiring Diagram

G09126880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
